Do PoE splitters support data-only connections?

By design, PoE (Power over Ethernet) splitters are intended to extract both power and data from a PoE-enabled Ethernet cable. However, PoE splitters do not typically support "data-only" connections on their own, as their primary function is to separate power from the combined PoE signal. This means that they generally provide both data and power outputs to a non-PoE device that requires both.

Understanding PoE Splitter Functionality:

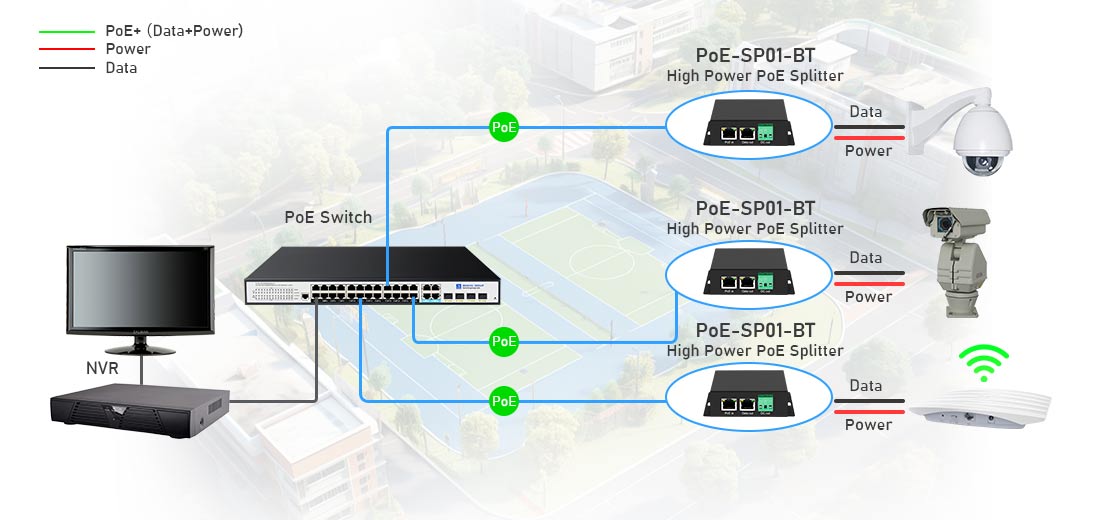

A PoE splitter takes the combined data and power signal from a PoE-enabled Ethernet cable and splits it into two separate outputs:

--- Data Output: This is typically an Ethernet port that delivers network connectivity (data).

--- Power Output: This provides a DC voltage (e.g., 5V, 9V, 12V, or 24V), which powers the connected device.

--- Since the PoE splitter’s job is to provide power and data together, the common use case is for non-PoE devices (like legacy IP cameras or wireless access points) that need both power and data via Ethernet.

Can a PoE Splitter Be Used for Data-Only Connections?

--- Technically, a PoE splitter could be used to extract the data-only portion of the signal from a PoE-enabled Ethernet cable if the power output is not used. However, this is not the intended design or purpose of a PoE splitter. The data (Ethernet) output on the splitter would still carry network connectivity, even if the power output is not connected to anything.

Considerations for Data-Only Connections:

1. Power Not Used:

--- If you don't use the power output from the splitter, the data output will still provide a regular Ethernet network connection (just as it would from a non-PoE Ethernet port). Essentially, you are extracting the network signal without drawing any power from the PoE source.

--- For example, if you connect a PoE splitter to a PoE switch or injector, but you don't use the power output for any device, the splitter will still pass the data over the Ethernet connection, making it function like a standard Ethernet cable for data-only purposes.

2. Splitter's Internal Functioning:

--- The splitting process inside the PoE splitter typically occurs automatically, meaning it still delivers data over Ethernet even if the power output is disconnected. The splitter essentially extracts both signals but only delivers the relevant one to the device.

3. Alternative Solution for Data-Only Connections:

--- If you don't need to use the power portion of the cable at all, you don't actually need a PoE splitter. You can simply use a regular Ethernet cable to connect your data device to the PoE-enabled switch or injector. The PoE equipment will still deliver data through the Ethernet cable, even if the power portion is not being used.

4. Using PoE Switches/Injectors with Data-Only Devices:

--- If you are using a PoE injector or PoE switch and connecting a device that only requires data, there is no need for a PoE splitter in most cases. The device will still receive data, and the power will be unused, but the Ethernet cable will still carry the network traffic.

Typical Data-Only Connections:

--- In most standard network setups where no power is needed (such as for non-PoE devices or PoE-incompatible devices), the use of standard Ethernet cables is sufficient. Devices such as data switches, routers, and servers typically don’t require any power from PoE, meaning there’s no need for a PoE splitter.

Key Points to Remember:

--- Data is always present in a PoE Ethernet cable regardless of whether power is used, so a splitter technically could be used for data-only purposes. However, using a regular Ethernet cable would be more efficient.

--- PoE splitters are designed to deliver both data and power, but you can ignore the power output if you don't need it.

--- If you only need data, there's no need for a PoE splitter at all; simply use the Ethernet cable as you would in a non-PoE setup.

Conclusion:

While PoE splitters are designed to provide both power and data to a non-PoE device, they can technically support data-only connections. If the power output is not used, the data signal can still pass through the splitter to the device, making it effectively behave like a regular Ethernet connection. However, for pure data-only purposes, using a standard Ethernet cable is a more straightforward and efficient solution.
