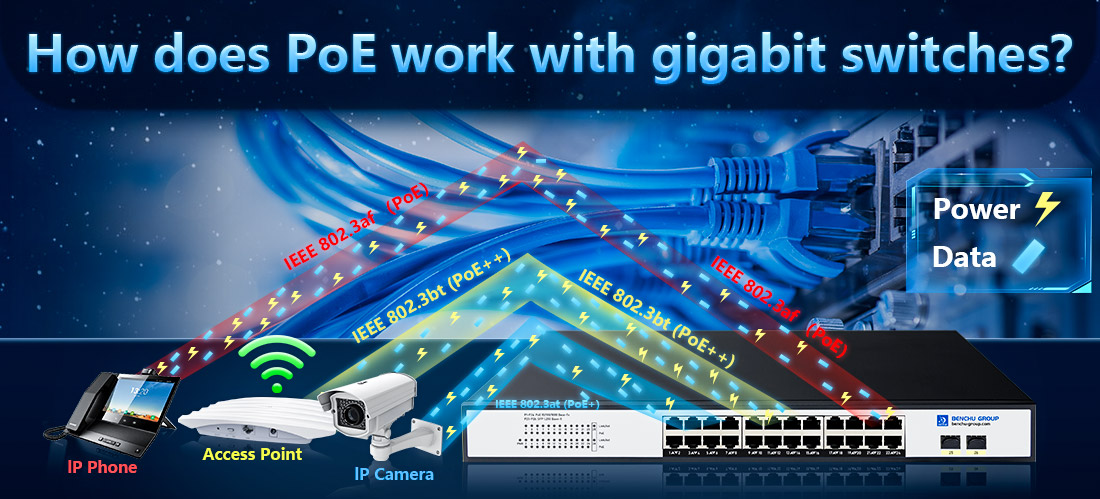

How does PoE work with gigabit switches?

How does PoE work with gigabit switches?

September 15, 2022

How does PoE work with gigabit switches?



Power over Ethernet (PoE) works seamlessly with gigabit switches to provide both power and data over a single Ethernet cable. Gigabit PoE switches are capable of delivering high-speed network data (up to 1 Gbps) along with power to connected devices such as IP cameras, wireless access points, and VoIP phones. Here’s how PoE works with gigabit switches:



1. Power and Data Transmission Over Ethernet

In a PoE-enabled gigabit switch, both power and data are transmitted through Category 5e (Cat5e) or higher Ethernet cables. These cables consist of four twisted pairs of copper wires.

--- For data transmission, gigabit Ethernet uses all four pairs to achieve high speeds (unlike slower Ethernet standards that only use two pairs).

--- For power transmission, PoE sends electricity over two or all four pairs of wires, depending on the PoE standard being used.





2. PoE Standards and Power Delivery

Gigabit PoE switches support different PoE standards, which define the amount of power they can deliver to connected devices:

--- PoE (802.3af): Delivers up to 15.4 watts per port, with about 12.95 watts available at the device.

--- PoE+ (802.3at): Provides up to 30 watts per port, with approximately 25.5 watts available at the device.

--- PoE++ (802.3bt): Provides even higher power, up to 60 watts (Type 3) or 100 watts (Type 4) per port for more power-hungry devices like LED lighting, building automation systems, or advanced IP cameras.





3. How Power is Delivered in Gigabit PoE

--- PoE operates by sending direct current (DC) over the Ethernet cable, while data uses the same cable for digital communication.

--- In PoE (802.3af) and PoE+ (802.3at) standards, power is delivered over two of the four twisted pairs (spare pairs or data pairs). However, in PoE++ (802.3bt), power can be delivered over all four pairs, enabling the switch to send more power without compromising data transfer speed.

--- This allows gigabit switches to maintain 1 Gbps network speeds while simultaneously powering connected devices.





4. Power Sourcing and Powered Devices

Power Sourcing Equipment (PSE): A gigabit PoE switch acts as the PSE, supplying power to connected devices over Ethernet cables.

Powered Devices (PDs): The devices that receive power, such as IP cameras, VoIP phones, or wireless access points, are known as PDs. These devices have built-in PoE support, allowing them to receive both power and data from the gigabit PoE switch.

--- The gigabit switch automatically detects whether a connected device supports PoE, ensuring power is only delivered to compatible devices.





5. Advantages of PoE with Gigabit Switches

High-Speed Data and Power Delivery: Gigabit PoE switches provide both power and high-speed data over a single cable, making them ideal for bandwidth-intensive applications like video surveillance, Wi-Fi networks, and IoT devices.

Cost and Space Efficiency: By delivering power and data over a single cable, PoE reduces the need for separate power outlets or adapters, streamlining installation and saving on infrastructure costs.

Flexible Device Placement: Devices can be installed in optimal locations without worrying about access to power outlets, as they can receive power directly from the PoE-enabled gigabit switch.

Scalability: Gigabit PoE switches make it easy to scale network infrastructure. New devices can be added without the need for separate power cabling, allowing networks to grow without excessive rewiring.





6. Backwards Compatibility

--- Gigabit PoE switches are backward compatible with lower-speed devices and earlier PoE standards. This means that they can power devices that only require 10/100 Mbps speeds or lower power levels (like standard PoE devices), while also supporting high-speed data for more demanding devices.





7. Energy Efficiency

--- Many modern gigabit PoE switches include energy-saving technologies such as intelligent power management. This feature dynamically adjusts power delivery based on the requirements of each connected device, ensuring energy is not wasted.

--- Gigabit PoE switches can also support LLDP (Link Layer Discovery Protocol), which helps negotiate the exact amount of power required by each device, further optimizing energy efficiency.





8. PoE Budget

--- The PoE budget of a gigabit switch refers to the total amount of power it can supply to connected devices. For example, a switch might have a 150W PoE budget, meaning it can distribute up to 150 watts of power across all its PoE-enabled ports.

--- Administrators need to calculate the total power requirements of all connected devices to ensure they do not exceed the PoE budget of the switch.





9. Gigabit PoE Switch Features

Managed vs. Unmanaged: Many gigabit PoE switches are managed, allowing for advanced features such as VLANs, QoS (Quality of Service), and traffic monitoring. These features can optimize network performance for PoE-powered devices like IP cameras or access points.

--- PoE Scheduling: Some managed switches allow scheduling of PoE power delivery, where devices can be powered on or off at certain times, improving energy efficiency.

--- Power Monitoring: Advanced switches can monitor power usage and alert administrators to any power-related issues, such as a device drawing too much power.





Conclusion:

PoE with gigabit switches provides a highly efficient solution for delivering both high-speed data and power to network devices over a single Ethernet cable. This simplifies installations, reduces infrastructure costs, and supports a wide range of devices, making it ideal for modern networks. The combination of gigabit speed and PoE ensures that even bandwidth-intensive and power-hungry devices, like IP cameras and access points, can be supported efficiently.
