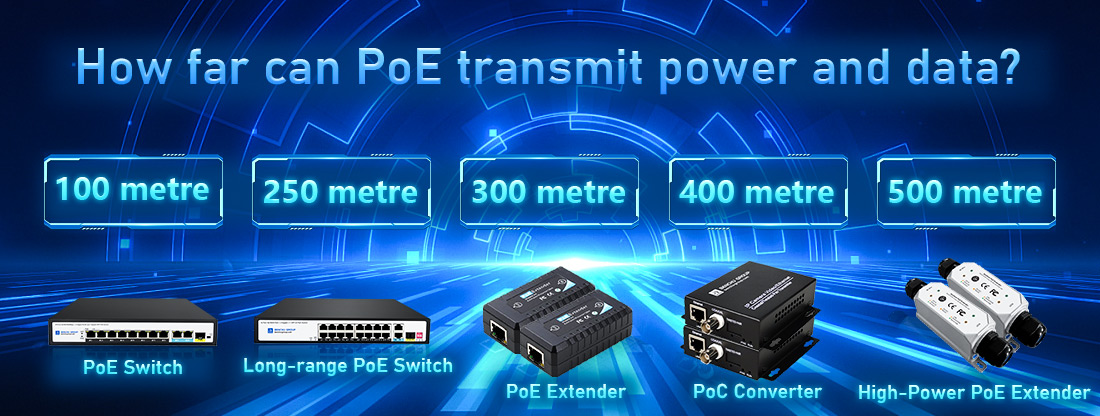

How far can PoE transmit power and data?

Power over Ethernet (PoE) can transmit both power and data over standard Ethernet cables up to a maximum distance of 100 meters (328 feet). Here’s a breakdown of the key factors influencing this distance:

1. Distance Limitations:

Standard Ethernet Cable: The maximum distance for transmitting PoE power and data is 100 meters using standard Ethernet cables (Cat5e, Cat6, or higher).

Power and Data Integrity: At this distance, both power and data signals remain reliable and meet the performance standards for most network applications.

2. Factors Affecting Transmission Distance:

Cable Quality: Higher quality cables (e.g., Cat6 or Cat6a) can maintain signal integrity better over longer distances compared to lower quality cables (e.g., Cat5).

Cable Type: Using shielded twisted pair cables can reduce electromagnetic interference (EMI) and maintain performance over longer distances.

Power Requirements: Higher power levels (e.g., PoE+ or PoE++) might experience voltage drops over longer distances, which can affect performance. Using high-quality cables helps mitigate this issue.

3. Extending PoE Beyond 100 Meters:

Long Distance POE Switch: Devices called Long distance POE switch can utilize network transmission characteristics to achieve a POE transmission distance of 250 meters.

PoE Extenders: Devices called PoE extenders can be used to extend the range of PoE up to an additional 100 meters. They receive PoE signals, amplify them, and then transmit the extended signal.

PoE Repeaters: Similar to extenders, PoE repeaters regenerate the signal to maintain power and data transmission quality over longer distances.

Midspan Injectors: In some cases, midspan injectors or repeaters can be used to boost the signal in the middle of the cable run.

4. Alternative Solutions for Longer Distances:

Fiber Optic Cabling: For distances beyond 100 meters, fiber optic cables can be used to transmit data over much longer distances. PoE can be combined with fiber-to-Ethernet converters to bridge the gap.

Ethernet over Coax: Some systems use Ethernet over coaxial cable to extend the range, though this typically requires additional equipment.

Practical Considerations:

Environmental Factors: Ensure that cables are installed in environments that do not introduce excessive interference or environmental stress, which can impact performance.

Power Budget: For PoE installations, consider the total power budget of the PoE switch or injector and the power requirements of all connected devices.

In summary, PoE can reliably transmit power and data over Ethernet cables up to 100 meters. For applications requiring greater distances, PoE extenders or alternative solutions like fiber optic cabling can be used to overcome the limitations.
