IES7221-24PGE4GC-AC, 24 Ports Industrial PoE Switch,with 4 Gigabit RJ45/SFP Combo Uplink,24 PoE+ Ports@500W power budget, DIN-Rail mount
Features

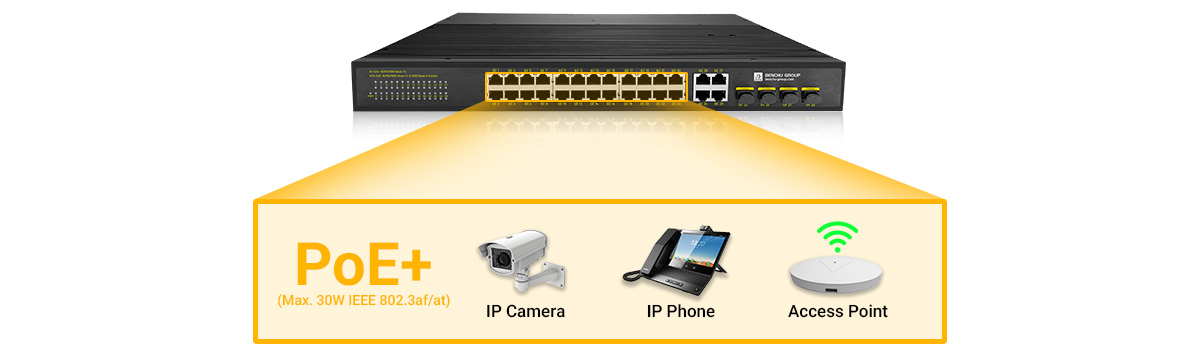

24 PoE Ports for Power and Connectivity
This industrial PoE switch features 24 ports that combine data and power transmission, providing seamless connectivity for devices like IP cameras, wireless access points, and VoIP phones. With support for IEEE 802.3af/at standards, it delivers up to 30W per port, enabling efficient power delivery to high-powered devices. The integrated PoE functionality reduces cabling requirements, simplifying deployment in challenging environments such as industrial facilities, outdoor installations, and remote locations where traditional power sources may not be accessible.
4 Gigabit RJ45/SFP Uplink Ports for High-Speed Backhaul
Equipped with 4 uplink ports that support both RJ45 and SFP modules, this 24 port industrial PoE switch ensures flexible high-speed connections to core networks or long-distance deployments. The uplink ports deliver gigabit speeds, making them ideal for handling large data transfers and connecting to backbone networks. Their versatility supports both copper and fiber modules, enabling reliable and scalable connectivity across various networking setups, including industrial sites and extended surveillance systems.
Industrial-Grade Design for Harsh Environments
This 24 port industrial PoE switch is built to withstand the rigors of industrial environments, featuring a rugged metal housing, wide operating temperature range(-30℃~75℃), and protection against shocks and vibrations. Its robust design ensures reliable performance in challenging conditions such as factories, outdoor enclosures, and transportation systems. Compliance with industrial standards makes it a dependable choice for mission-critical applications, even in extreme weather or high-temperature areas.
Plug-and-Play Simplicity
Designed for quick and hassle-free deployment, this unmanaged industrial PoE switch requires no complex configuration. Simply connect the devices, and the switch automatically optimizes the connection. With support for auto-negotiation and auto-MDI/MDIX, it ensures maximum compatibility with a variety of devices. The plug-and-play functionality is ideal for non-technical users, saving time and effort during installation in large-scale PoE-powered surveillance or industrial automation projects.
High PoE Power Budget for Demanding Applications
This switch supports a high PoE power budget, capable of delivering power to all 24 ports simultaneously. This is critical for applications requiring multiple high-powered devices, such as large-scale surveillance systems or wireless access points in industrial environments. The ability to power multiple devices without overloading ensures smooth and reliable operation, reducing the need for additional power sources or injectors.
Surge Protection and Reliable Performance
Integrated surge protection safeguards the switch and connected devices against power spikes and lightning strikes, ensuring uninterrupted operation in unpredictable industrial environments. This feature is particularly valuable in outdoor setups or areas prone to electrical disturbances, offering peace of mind for network reliability. Combined with its durable construction, the switch ensures long-term stability for critical systems.
Fanless Design for Silent Operation
This 24 port industrial PoE switch employs a fanless design that ensures silent operation while reducing dust accumulation. This design improves the device’s durability and makes it suitable for noise-sensitive environments like control rooms or office-adjacent industrial setups. Despite the absence of fans, the switch’s efficient heat dissipation ensures consistent performance, even during prolonged usage in high-temperature conditions.
Wide Application Scenarios
This 24-port PoE switch is ideal for diverse applications, including industrial automation, large-scale IP surveillance, smart city deployments, and wireless network expansion. Its rugged build, high PoE capacity, and gigabit uplinks make it a versatile solution for powering and connecting devices in complex environments. Whether used in outdoor installations or factory floors, it delivers reliable performance and simplifies network deployment, reducing both infrastructure costs and setup time.
Connectivity Solutions
24 Port Gigabit Industrial PoE Switch with 4 Gigabit RJ45/SFP Combo Uplink
Specification
Technical Specifications :
IES7221-24PGE4GC-AC10M/100M/1G RJ45 copper ports :
24Gigabit R4J5 and SFP Combo :
4PoE / PoE+ ports :
24Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
4.2 MbForwarding modes :
Store-and-forwardBandwidth :
64 GbpsPacket forwarding rate :
47.62Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 46mm (17.32 x 11.42 x 1.81 in)Weight :
6.4 kg (14.11 lb)Power Requirements :
AC 100~260V, redundant power with reverse polarity protectionPower Consumption :
500W (when all ports used, line-rate traffic and max PoE)Max power :
15W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
9W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
