4 Ports 10/100M Industrial PoE+ Switch,with 1-10/100M RJ45, 4 PoE+ Ports@75W power budget, DIN-Rail mount, IES7211-4PFE1FE-DC

10/100M industrial switch 4 port poe
10/100M industrial poe switch
4 port poe 10/100M industrial switch price

4 Ports 10/100M Industrial PoE+ Switch,with 1-10/100M RJ45, 4 PoE+ Ports@75W power budget, DIN-Rail mount, IES7211-4PFE1FE-DC

Inquire Now

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 4 ports supporting PoE+ to PD device
    • Complies with IEEE 802.3af/at Power over Ethernet end-span
    • Supports PoE power up to 30 watts for each PoE port
    • Auto detects powered device (PD)
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with dual power input
    • Din Rail mounting installation
    • Backplane bandwidth 1.6Gbps，Packet forwarding rate 0.75Mpps，MAC address 2k

10/100M industrial switch 4 port poe

Overview



IES7211-4PFE1FE-DC, 4 Ports 10/100M Industrial PoE+ Switch,with 1-10/100M RJ45 Uplink,4 PoE+ Ports@75W power budget, DIN-Rail mount

Benchu group's IES7211-4PFE1FE 4-Port 10/100Mbps Industrial PoE Switch, a robust and versatile networking solution designed for demanding industrial environments. The IES7211-4PFE1FE features four 10/100Mbps PoE ports, providing both data and power to connected devices (such as IP cameras, wireless access points, and VoIP phones), simplifying deployment and reducing cable clutter. Additionally, The IES7211-4PFE1FE is equipped with one 10/100M RJ45 port for uplink where the four PoE+ ports can be used to their full potential.

The industrial-grade design of this PoE switch ensures optimal performance in harsh conditions. It is operating temperature ranging from -30 to 75 degrees C, and is housed in a rugged, metal enclosure that provides protection against dust, vibration, and electromagnetic interference. These features make it ideal for use in factories, outdoor installations, and other challenging environments.

The IES7211-4PFE1FE supports IEEE 802.3af/at standards, delivering up to 30W per port to power high-power devices. With easy installation and a robust feature set, the 8-Port 100Mbps Industrial Grade PoE Switch is an excellent choice for enhancing the reliability and efficiency of industrial networks.



Physical Port

  • 4-10/100BASE-TX Fast Ethernet RJ45 ports with PoE+ Injector function (Ports 1 to 4)
  • 1-10/100BASE-T Gigabit Ethernet RJ45 ports (Ports 5)



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters

Switching

  • Backplane bandwidth 1.6Gbps，Packet forwarding rate 0.75Mpps，MAC address 2k
  • Hardware-based 10/100Mbps (half/full duplex)auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • Industrial Case and Installation
  • IP30 High- strength Aluminum case
  • DIN-rail mount design
  • 48~56V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -30 to 75 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT





Features

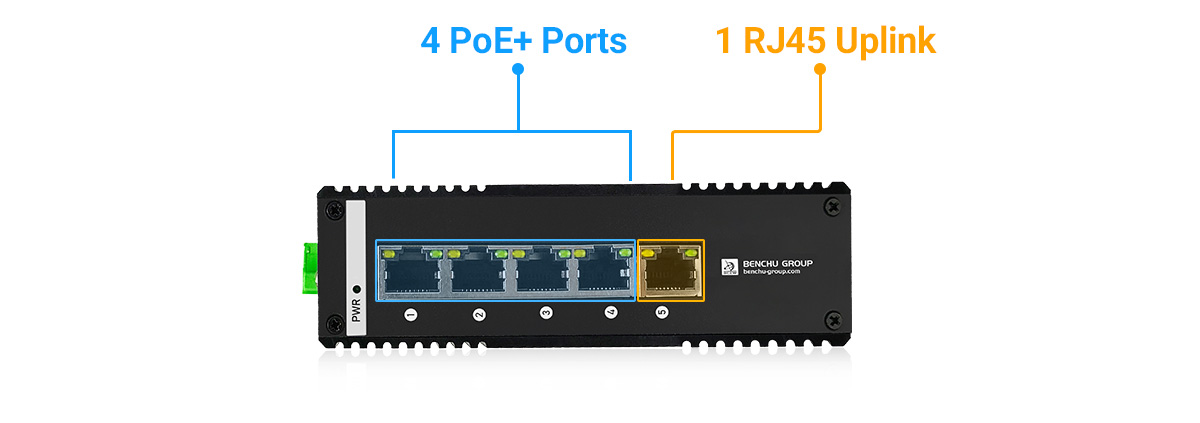

Fast Port Configuration

Bench group's IES7211-4PFE1FE-DC Industrial PoE Switch provide  4 PoE+ 10/100Mbps RJ45 ports and 1-10/100M RJ45 uplink, Port 1 to 4support IEEE820.3af/at provide up to 30W per port , support  redundant power .



 IP30 High-strength Aluminum Case Gives to Enhanced Durability and Protection

The aluminum casing excels in heat dissipation, efficiently managing the heat generated by the PoE switch during operation. By preventing overheating, the high-strength aluminum case helps maintain optimal operating temperatures, ensuring stable performance and reducing the risk of thermal-related malfunctions. The IP30 robust aluminum construction guards against impacts, dust, and other contaminants, ensuring the switch’s internal components remain safe and functional in demanding industrial environments. Effective heat management is crucial for maintaining the reliability and longevity of the switch, especially in high-power applications.



Redundant power gives to Enhanced Reliability

Redundant power design in Benchu group's  IES7211-8PFE1GE1GF industrial PoE switch ensures continuous operation even if one power source fails. By having a secondary power supply, the switch can seamlessly switch to the backup power, maintaining network connectivity without interruption. This redundancy is crucial for mission-critical applications where consistent network availability is essential, minimizing downtime and ensuring reliable performance.



Wide Operating Temperature Design of -30 to 75℃ gives to Versatility Across Applications

The ability to operate in a wide temperature range(-30~75℃) makes Benchu group' IES7211-4PFE1FE-DC industrial PoE switch suitable for various applications, from freezing storage facilities to hot manufacturing plants. This versatility allows for standardization on a single switch model across different environmental conditions, simplifying inventory management and reducing the complexity of deployment.



8kV lightning protection gives to Enhanced Device Protection

Benchu group’s 8 ports fast Industrial PoE switch SP7211-8PFE1FE-dc with 8kV lightning protection, the S7211-8PFE1GE1GF ensures high network availability by preventing downtime caused by power surges. Reliable surge protection keeps critical network services running smoothly during and after electrical disturbances. Improved uptime is crucial for industrial applications, such as surveillance, automation, and communication, where consistent connectivity is essential.





Connectivity Solutions



4 port 10/100M Industrial PoE switch with 1-10/100M RJ45 Uplink of Connection Solution



10/100M industrial switch 4 port poe







Specification



  • Technical Specifications :

    SP7211-4PFE1FE-DC

  • 10M/100M RJ45 copper ports :

    5

  • PoE / PoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Performance Specification :

    *

  • Packet buffer memory :

    0.4 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    1.6 Gbps

  • Packet forwarding rate :

    0.75Mpps (64 byte packet size)

  • MAC address database size :

    2K (48-bit MAC ad-dresses)

  • Mean Time Between Failures :

    140,133 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.521µs; 8.622µs; 8.735µs

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    33 x 86 x 118mm (1.3 x 3.39 x 4.64 in)

  • Weight :

    0.4 kg (0.88 lb)

  • Shell protection :

    P30 high-strength aluminum case

  • Power Requirements :

    DC 48~56V, redundant power with reverse polarity protection

  • Power Consumption :

    75W

  • Max power :

    6W

  • Iddle power consumption :

    4W

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -30° to 75°C (-22° to 167°F)

  • Operating Humidity :

    95% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    -40° to 85°C (-40° to 185°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Executive Standard & Protection :

    *

  • Lightning Protection :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Part 15/CISPR22 (EN55022) :

    Class B

  • IEC61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (Pulsed magnet field) :

    1000A/m

  • IEC61000-4-10 (Damped oscillation) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (Shockwave) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16(Common-mode transmission) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (Radio frequency transmission) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (Surge): Power cable :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Mechanical Properties :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Industrial Switch； Brackets and screws for rack mounting which are already installed in the switch；

  • Business Type :

    Industrial

  • Bandridth :

    100M

  • More Filters :

    Unmanaged
