IES7211-4PGE2GF-DC, 4 Ports Gigabit Industrial PoE+ Switch,with 2 Gigabit SFP Uplink,4 PoE+ Ports@75W power budget, DIN-Rail mount
|
Physical Port
Power over Ethernet
Switching
Hardware
|
Lightning Protection
Mechanical Properties
|
Features

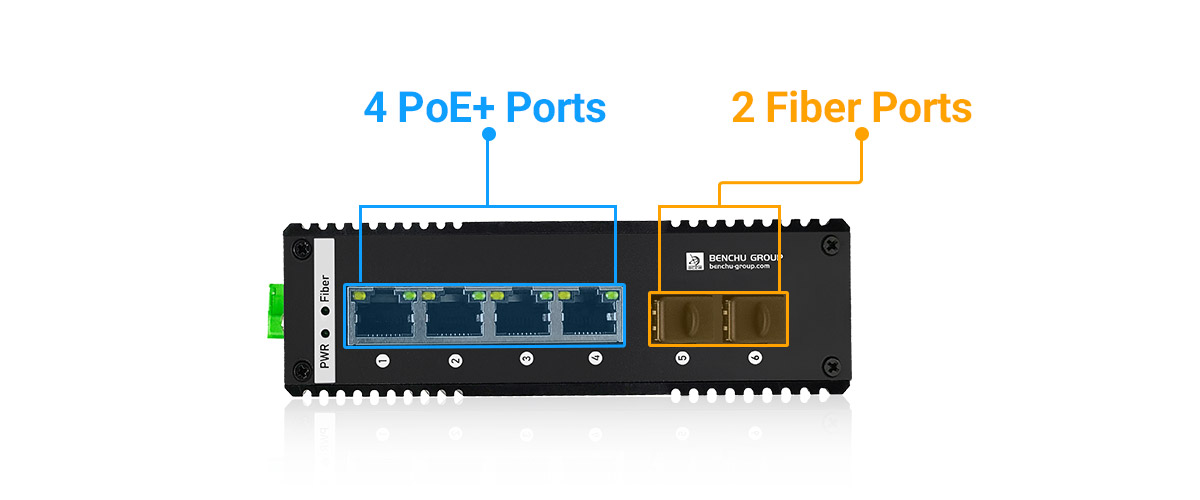

Gigabit Ethernet Port and Gigabit Fiber Port Configuration
Bench group's IES7211-4PGE2GF-DC Gigabit Industrial PoE Switch provide 4 PoE+ 10/100/1000Mbps RJ45 ports and 2-1.25G SPF, support IEEE820.3af/at provide up to 30W per PoE port, support redundant power .
Two Gigabit SFP Uplink
The IES7511-4PGE2GF-DC Industrial PoE switch is equipped with two SFP port transceivers extend network links from 100 meters using copper cables to up to 120 kilometers using fiber optics. This extended reach is perfect for connecting remote locations like electronic police and outdoor surveillance, ensuring reliable communication. The hot-swappable SFP ports allow for easy transceiver replacement or upgrades without disrupting the network, enhancing reliability and uptime. This feature also simplifies troubleshooting and minimizes downtime in the event of a transceiver failure.
IP40 High-strength Aluminum Case Gives to Optimal Heat Dissipation
The aluminum casing excels in heat dissipation, efficiently managing the heat generated by benchu group's 8 Port gigabit Inudstrial PoE switch during operation. By preventing overheating, the IP40 high-strength aluminum case helps maintain optimal operating temperatures, ensuring stable performance and reducing the risk of thermal-related malfunctions. Effective heat management is crucial for maintaining the reliability and longevity of the switch, especially in high-power applications.
Redundant power gives to Operational Safety
Benchu group's IES7211-4PGE2GF gigabit Industrial PoE Switch with redundant power input contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This continuous power delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.
Wide Operating Temperature Design gives to Reduced Cooling and Heating Costs
The 4 Ports gigabit industrial Gigabit PoE switch IES7211-4PGE2GF-DC use wide operating temperature range design minimizes the need for additional cooling or heating solutions to maintain optimal switch performance. This reduction in auxiliary climate control lowers energy consumption and operational costs. In environments where controlling ambient temperature is challenging or expensive, these switches offer a cost-effective and energy-efficient solution.
8kV Lightning Protection Gives to Improved Network Uptime
Investing in an industrial PoE switch with 8kV lightning protection reduces long-term costs associated with equipment damage and network outages. Benchu group’s 4 Ports Gigabit Industrial PoE Switch SP7211-4PGE2GF with 8kV lightning protection,By preventing surge-related failures, organizations save on repair, replacement, and downtime expenses. Cost savings extend to avoiding potential revenue losses and operational disruptions caused by network interruptions.
Connectivity Solutions
4 port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution
4 port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution 2
Specification
Technical Specifications :
IES7211-4PGE2GF-DC10M/100M/1G RJ45 copper ports :
41.25G SFP (fiber) ports :
2PoE / PoE+ ports :
4Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)PoE Power Budget :
68 WattsPerformance Specification :
*Packet buffer memory :
1.2 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
8.93Mpps (64 byte packet size)MAC address database size :
4K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
160,213 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
35 x 95 x 135mm (1.38 x 3.74 x 5.31 in)Weight :
0.55 kg (1.21 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
75WMax power :
6WIddle power consumption :
4WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
