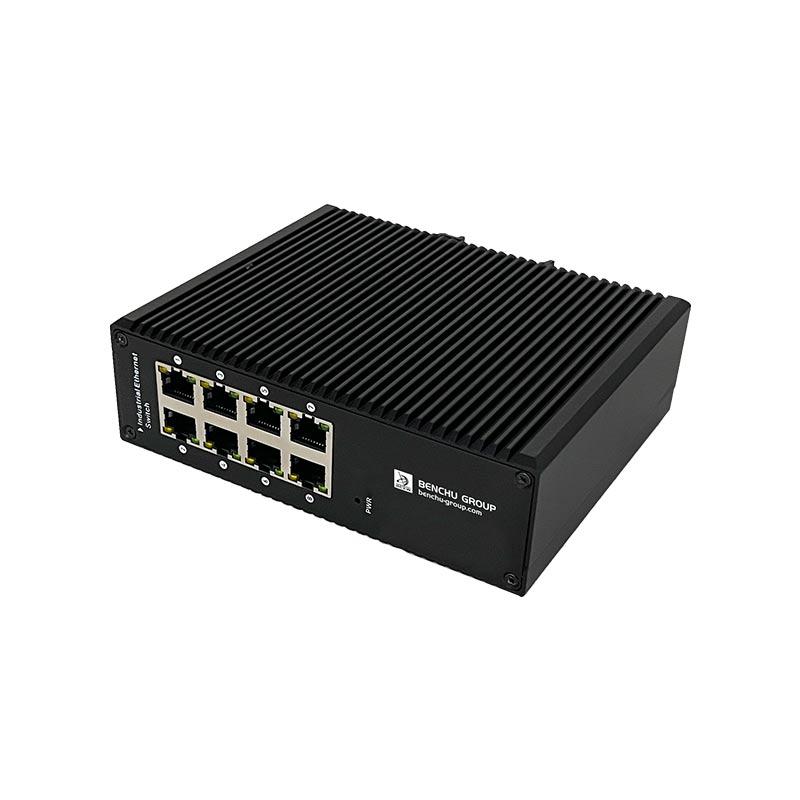

IES7211-8FE-DC, 8 Ports 10/100M Industrial Ethernet Switch, Redundant power Input, DIN-Rail mount
|
Physical Port
Switching
Hardware
|
Lightning Protection
Mechanical Properties
|
Features
IP40 High-strength Aluminum Case Gives to Enhanced Durability
Benchu group's 8 port 10/100M industrial use aluminum casing is highly effective at dissipating heat, efficiently managing the heat produced by the industrial switch during operation. By preventing overheating, this high-strength aluminum enclosure maintains optimal operating temperatures, ensuring stable performance and minimizing the risk of thermal-related issues. The robust IP40 aluminum construction protects against impacts, dust, and contaminants, keeping the switch’s internal components safe and operational in demanding industrial environments. Effective heat management is crucial for the reliability and longevity of the industrial switch, particularly in high-power applications.
Redundant power gives to Enhanced Reliability
Benchu group's 8-Port 10/100M Industrial Ethernet Switch IES7211-8FE-DC Support Redundant power systems, contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This redundant power inpout delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.
Wide Operating Temperature Design of -30 to 75℃ gives to Versatility Across Applications
Benchu group' s industiral ethernet IES7211-8E-DC within a wide temperature range of -30~75℃ allows the industiral switch to be deployed in various challenging environments. The IES7211-8E-DC is suitable for outdoor installations, industrial sites, and unconditioned spaces like warehouses and utility rooms. The IES7211-8E-DC robust design enables network administrators to extend connectivity to locations that would otherwise be difficult or impossible to service with standard switches. supports a broader range of applications, including smart city infrastructure, transportation systems, and outdoor surveillance, enhancing overall network coverage and functionality.
8kV lightning protection gives to Enhanced Device Protection
Benchu group’s 8 Ports 10/100M Industrial PoE Switch IES7211-8FE-DC Support 8kV lightning protection, Provides robust defense against electrical surges caused by lightning strikes. This protection safeguards the switch’s internal components and connected devices from damage, ensuring continuous operation. Enhanced protection minimizes the risk of costly repairs and replacements, maintaining network stability and reliability in environments prone to lightning activity.This resilience makes them ideal for outdoor installations and locations with unpredictable weather patterns.
Connectivity Solutions
8 port 10/100M industrial switch connection solution for factory automation
Specification
Technical Specifications :
SP7211-8FE-DC10M/100M RJ45 copper ports :
8Performance Specification :
*Packet buffer memory :
0.4 MbForwarding modes :
Store-and-forwardBandwidth :
1.6 GbpsPacket forwarding rate :
1.2Mpps (64 byte packet size)MAC address database size :
2K (48-bit MAC ad-dresses)Mean Time Between Failures :
140,133 hours (MTBF) @ 25°C100M Copper Latency :
8.521µs; 8.622µs; 8.735µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, ActivityPer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
48 x 110 x 150mm (1.89*4.33*5.91in)Weight :
0.75Kg（1.64lb）Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 12~48V, redundant power with reverse polarity protectionMax power :
4WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-30° to 75°C (-22° to 167°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial Switch； Brackets and screws for rack mounting which are already installed in the switch；Business Type :
IndustrialBandridth :
100MMore Filters :
Unmanaged
