IES7211-8PGE2GF-4BT-DC, 8 Ports Gigabit Industrial UPoE+ Switch,with 2 Gigabit SFP Uplink,4 PoE++ and 4 PoE+ Ports@240W power budget, DIN-Rail mount
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features

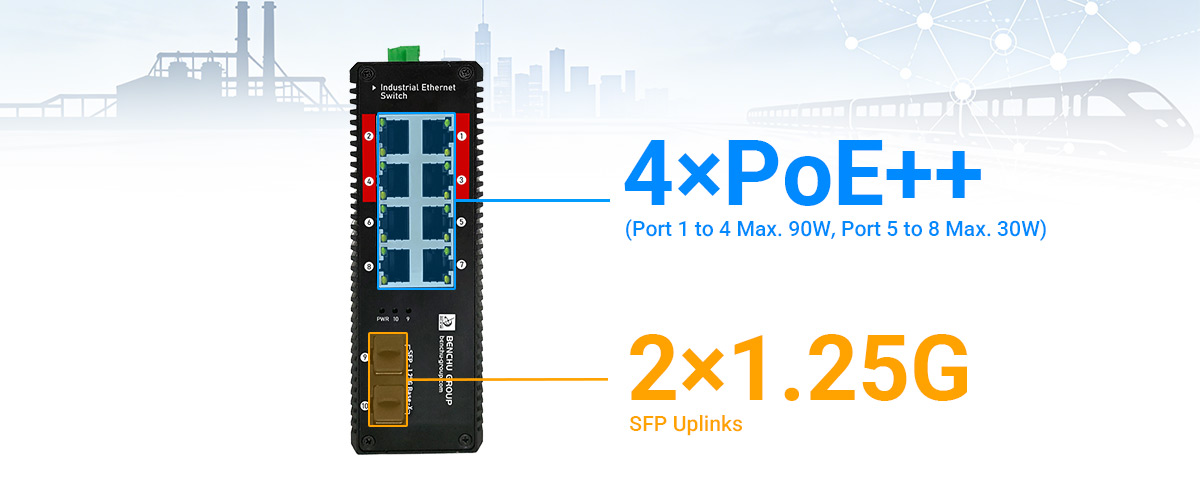

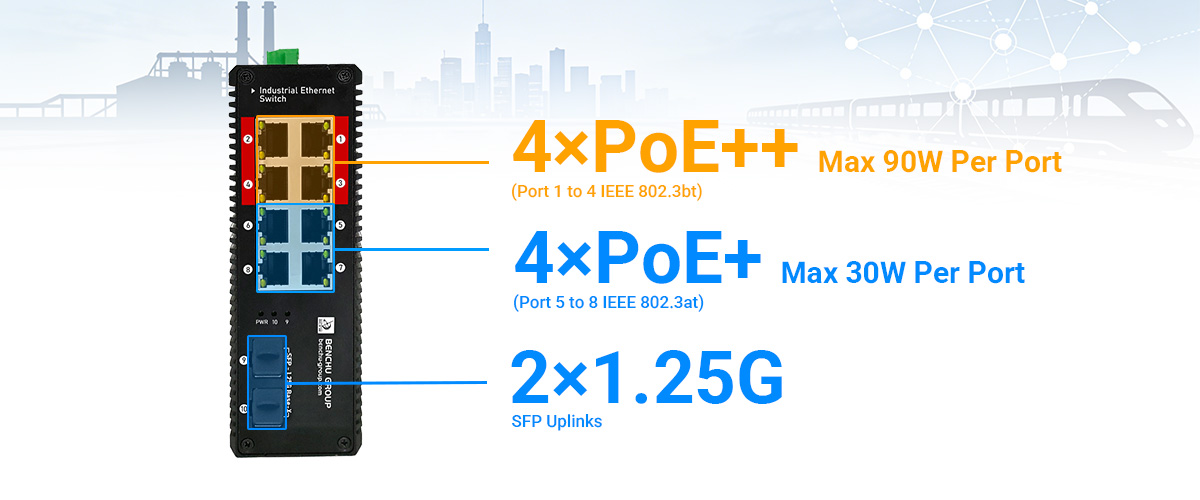

Gigabit Ethernet Port and Gigabit Fiber Port Configuration
Bench group's IES7211-8PGE2GF-4BT-DC Gigabit Industrial UPoE+ Switch provide 4 PoE++ 10/100/1000Mbps RJ45 ports, 4 PoE+ 10/100/1000Mbps RJ45 ports, and 2-1.25G SFP uplink, support IEEE820.3af/at/bt provide up to 90W for port 1 to 4, support IEEE820.3af/at provide up to 30W for port 5 to 8, support redundant power .

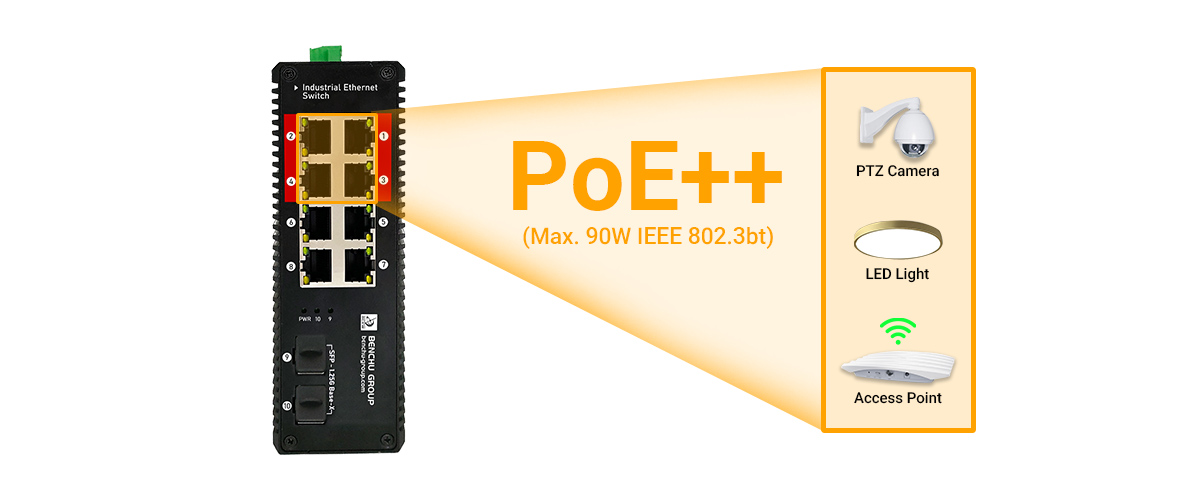

802.3bt PoE++ up to 90W (Type 4) per port
Benchu group's gigabit UPoE+ Switch SP5210-8PGE2G1GF-4BT Support PoE++ protocol, defined by the IEEE 802.3bt standard, significantly enhances Power over Ethernet capabilities, delivering up to 90W (Type 4) per port. This high power output supports advanced devices such as high-definition PTZ cameras, LED lighting, and digital signage. PoE++ ensures efficient power distribution and data connectivity through a single Ethernet cable, simplifying installation and reducing infrastructure costs. It maintains backward compatibility with previous PoE standards (IEEE 802.3af/at), allowing seamless integration with existing network devices while enabling the deployment of newer, power-intensive applications.
IP40 High-strength Aluminum Case Gives to Lightweight and Easy Installation
The IP40 robust aluminum construction guards against impacts, dust, and other contaminants, ensuring the switch’s internal components remain safe and functional in demanding industrial environments.Despite its strength, the aluminum case is lightweight, making the industrial PoE switch easier to handle and install. The reduced weight simplifies mounting and positioning, particularly in complex industrial setups or confined spaces. This ease of installation saves time and effort for technicians and supports quicker deployment of network infrastructure.
Redundant power gives to Operational Safety
Benchu group's IES7211-8PGE2GF-4BT-DC gigabit Industrial UPoE+ Switch with redundant power, Redundant power systems in industrial UPoE+ switches contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This continuous power delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.
Wide Operating Temperature Design gives to Enhanced Equipment Protection
Benchu group's IES7211-8PGE2GF-4BT-DC gigabit Industrial UPoE+ Switch designed for wide temperature ranges often come with additional rugged features, such as enhanced surge protection and robust housings. These features protect the switch and connected devices from electrical surges, moisture, dust, and physical impact. This added protection extends the lifespan of the equipment, reducing the frequency of maintenance and replacements. By safeguarding against environmental hazards, these switches ensure that critical network infrastructure remains secure and operational, even in the most demanding conditions, ultimately providing greater reliability and lower total cost of ownership.
8kV Lightning Protection Gives to Improved Network Uptime
Benchu group’s 8 Ports Gigabit Industrial UPoE+ Switch SP7211-8PGE2GF-4BT-DC with 8kV lightning protection ensures the industrial UPoE+ switches meets stringent safety and industry standards. Compliance with these standards guarantees the switch’s suitability for deployment in hazardous or high-risk environments, providing peace of mind to operators. Adhering to safety regulations is crucial for industries such as manufacturing, energy, and transportation, where electrical safety is paramount.
Connectivity Solutions
8 Port Gigabit UPoE+ Industrial Switch with 2 Gigabit SFP Uplink of Connectivity Solution
Specification
Technical Specifications :
IES7211-8PGE2GE-4BT-DC10M/100M/1G RJ45 copper ports :
81.25G SFP (fiber) ports :
2PoE / PoE+ ports :
4PoE / PoE+ / PoE++ / UPoE+ ports :
4Power over Ethernet :
*PoE Standard :
IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over EthernetPoE Power Supply Type :
End-span: 1/2/4/5 (+), 3/6/78 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)Performance Specification :
*Packet buffer memory :
1.6 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
14.88Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
156,321 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex FlowMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
48 x 110 x 150mm (1.89 x 4.33 x 5.91 in)Weight :
0.95 kg (2.09 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
240WMax power :
10WIddle power consumption :
6WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
