Outdoor IP66 Waterproof 5 Port Gigabit Industrial PoE Switch with 4 AT 30W PoE Port, IES7212-4PGE1GE-WF

Outdoor 5 Port Gigabit Industrial PoE Switch
Waterproof 5 Port Gigabit Industrial PoE Switch

Outdoor IP66 Waterproof 5 Port Gigabit Industrial PoE Switch with 4 AT 30W PoE Port, IES7212-4PGE1GE-WF

Inquire Now

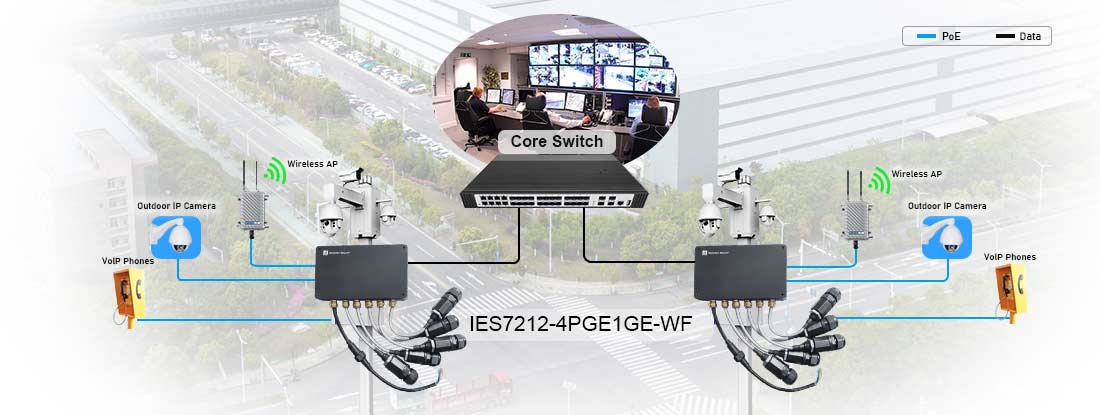

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 4-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE+
    • 1-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports
    • Complies with IEEE 802.3af/at Power over Ethernet end-span
    • Supports PoE power up to 30 watts for each PoE port
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • -40 to 85 degrees operating temperature
    • IP66 outdoor waterproof design
    • Wall mounting installation
    • Backplane bandwidth 12Gbps，Packet forwarding rate 7.44Mpps，MAC address 4k

5 port waterproof industrial poe switch

Overview



IES7213-4PGE1GE-WF, Outdoor Waterproof 5 Port Gigabit Industrial PoE Switch,4 PoE+ Ports@65W Power Budget, IP67 Waterproof Design, Wall mount

The BENCHU IES7213-4PGE1GE-WF is a cutting-edge industrial PoE switch designed for robust performance in harsh environments. Featuring five gigabit ports, including four PoE+ ports with a total 65W power budget, it provides reliable power and data transmission for IP cameras, wireless access points, and IoT devices. This switch is built with an IP67 waterproof design, ensuring protection against dust, water, and extreme weather conditions, making it ideal for outdoor deployments.

Operating in a temperature range of -40°C to 85°C, this switch is engineered to excel in industrial settings, offering high durability with an IP40-rated housing and ESD8KV protection to guard against electrical surges. Its wall-mountable design facilitates easy installation in compact or remote areas.

The dual power input (AC 12~54V) enhances power reliability, ensuring uninterrupted operation in critical applications. This switch supports seamless data transfer with its gigabit speed and is optimized for stable connectivity in smart cities, industrial automation, and security monitoring systems.

By integrating advanced functionality, robust protection, and flexible deployment options, the IES7213-4PGE1GE-WF delivers exceptional value, helping users achieve efficient network management and reliable device operation in the most challenging conditions.



  • Physical Port
    4-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+
    1-10/100/1000BASE-TX Fast Ethernet RJ45 ports
    1-1.25GBASE-X mini-GBIC/SFP ports slot

    Power over Ethernet
    Complies with IEEE 802.3at Power over Ethernet Plus
    Backward compatible with IEEE 802.3af Power over Ethernet
    Up to 4 ports of IEEE 802.3af/802.3at devices powered
    Supports PoE power up to 30 watts for each PoE port
    Auto detects powered device (PD)
    Remote power feeding up to 100 meters

    Hardware
    Industrial Case and Installation
    IP40 High- strength Aluminum case
    DIN-rail mount design
    48~56V DC, redundant power with reverse polarity protection
    Supports 8KV DC Ethernet ESD protection
    -40 to 85 degrees C operating temperature
    LED indicators for Power,PoE Working and LINK/ACT
  • Switching
    Backplane bandwidth 24Gbps，Packet forwarding rate 8.93Mpps，MAC address 8k
    Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
    Features Store-and-Forward mode with wire-speed filtering and forwarding rates
    IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

    Mechanical Properties
    IEC60068-2-6:Anti Vibration
    IEC60068-2-32:Free Fall
    IEC60068-2-27:Anti Shock
  • Lightning Protection
    IEC61000-4-3 (RS):10V/m (80~1000MHz)
    FCC Part 15/CISPR22 (EN55022):Class B
    IEC61000-6-2:Common Industrial Standard
    IEC61000-4-9 (Pulsed magnet field) :1000A/m
    IEC61000-4-10 (Damped oscillation) :30A/m, 1MHz
    IEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kV
    IEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kV
    IEC61000-4-16(Common-mode transmission) :30V, 300V, 1s
    IEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air discharge
    IEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)
    IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3s
    IEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV





Features



Industrial-Grade Design

The IES7213-4PGE1GE-WF is built for demanding industrial applications. Its robust design ensures exceptional performance in harsh environments, including extreme temperatures ranging from -40°C to 85°C. With its IP67-rated housing, the switch is fully protected against water, dust, and other environmental hazards. This industrial-grade switch is the ideal choice for outdoor deployment in scenarios such as smart cities, industrial automation, and surveillance systems, delivering reliable performance where traditional switches fail.



IP67 Waterproof and Dustproof

Engineered to withstand the toughest conditions, this switch features an IP67 waterproof and dustproof enclosure. This ensures complete protection against ingress of water and dust, making it suitable for outdoor and industrial settings where environmental exposure is inevitable. Whether it’s heavy rain, dust storms, or humid conditions, the IES7213-4PGE1GE-WF maintains stable operation, offering users peace of mind and prolonged service life even in the harshest environments.



5-Port Gigabit Connectivity

Equipped with five gigabit ports, including four PoE+ ports, the switch provides blazing-fast data transmission for bandwidth-intensive applications. It ensures seamless connectivity for IP cameras, wireless access points, and industrial devices. The high-speed gigabit capability allows for smooth data transfer and improved network efficiency, supporting real-time operations and ensuring that critical data reaches its destination quickly and securely.



PoE+ Ports with 65W Power Budget

The IES7213-4PGE1GE-WF features four PoE+ ports with a total 65W power budget, allowing for simultaneous data and power delivery over a single Ethernet cable. This capability reduces installation complexity and costs by eliminating the need for separate power sources for connected devices. The PoE+ standard ensures compatibility with a wide range of powered devices (PDs), making it an ideal choice for security cameras, wireless access points, and IoT sensors in industrial and outdoor applications.



Dual Power Input for Redundancy

With support for dual power input (AC 12~54V), the switch enhances operational reliability by ensuring continuous power supply. This redundant power feature protects against power failures, keeping the switch and connected devices operational even during unexpected outages. It is particularly valuable for mission-critical applications like security monitoring or industrial automation, where network downtime can have significant consequences.



High-Level Surge Protection (ESD 8KV)

The switch is equipped with ESD8KV protection, offering strong resistance to electrostatic discharge and power surges. This feature safeguards the switch and connected devices against electrical disruptions, minimizing the risk of hardware damage. ESD protection ensures consistent performance in environments prone to power fluctuations, such as outdoor installations near industrial machinery or areas with frequent lightning activity.



Flexible Wall-Mount Design

The wall-mountable design of the IES7213-4PGE1GE-WF simplifies installation, even in space-constrained or remote locations. Its compact yet sturdy design allows it to be securely mounted on walls or other vertical surfaces, optimizing space usage and providing flexibility in deployment. This feature is especially useful for outdoor or industrial setups where conventional rack-mounted switches are impractical.





Connectivity Solutions



Outdoor Waterproof 5 Port Gigabit Industrial PoE Switch



5 Port Gigabit Industrial PoE Switch





Specification



  • Technical Specifications :

    IES7212-4PGE1GE-WF

  • 10M/100M/1G RJ45 copper ports :

    5

  • PoE / PoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Performance Specification :

    *

  • Packet buffer memory :

    1.2 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    12 Gbps

  • Packet forwarding rate :

    7.44Mpps (64 byte packet size)

  • MAC address database size :

    4K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    9K

  • Mean Time Between Failures :

    158,113 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.535µs; 8.612µs; 8.716µs

  • 1G Copper Latency :

    3.434µs; 3.542µs; 3.645µs

  • 1G Fiber Latency :

    2.996µs; 3.113µs; 3.188µs

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    220 x 140 x 85 mm (8.66 x 5.51 x 3.35 in)

  • Weight :

    2.3 kg (5.08 lb)

  • Shell protection :

    P67 high-strength case

  • Power Requirements :

    AC 100~260V 50/60Hz

  • Power Consumption :

    75W

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -40° to 85°C (-40° to 185°F)

  • Operating Humidity :

    95% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    -40° to 85°C (-40° to 185°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Executive Standard & Protection :

    *

  • Lightning Protection :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Part 15/CISPR22 (EN55022) :

    Class B

  • IEC61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (Pulsed magnet field) :

    1000A/m

  • IEC61000-4-10 (Damped oscillation) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (Shockwave) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16(Common-mode transmission) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (Radio frequency transmission) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (Surge): Power cable :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Mechanical Properties :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Industrial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

Questions & Answers

1. Is this 5 Port Gigabit Industrial PoE Switch suitable for outdoor use?

Yes, it features an IP67 waterproof design.



2. Can it power multiple PoE devices simultaneously?

Yes, it supports 4 PoE+ ports with a 65W budget.



3. What is the operating temperature range?

It operates between -40°C and 85°C.



4. How is the IES7212-4PGE1GE-WF powered?

It supports dual AC inputs (12~54V).



5. Is it easy to install on walls?

Yes, it has a flexible wall-mount design.
