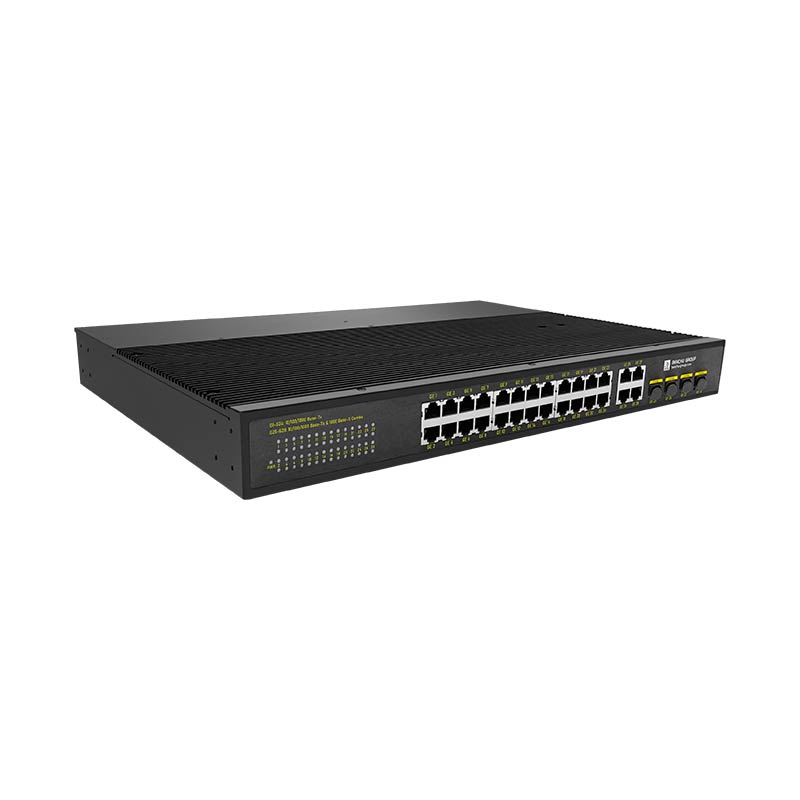

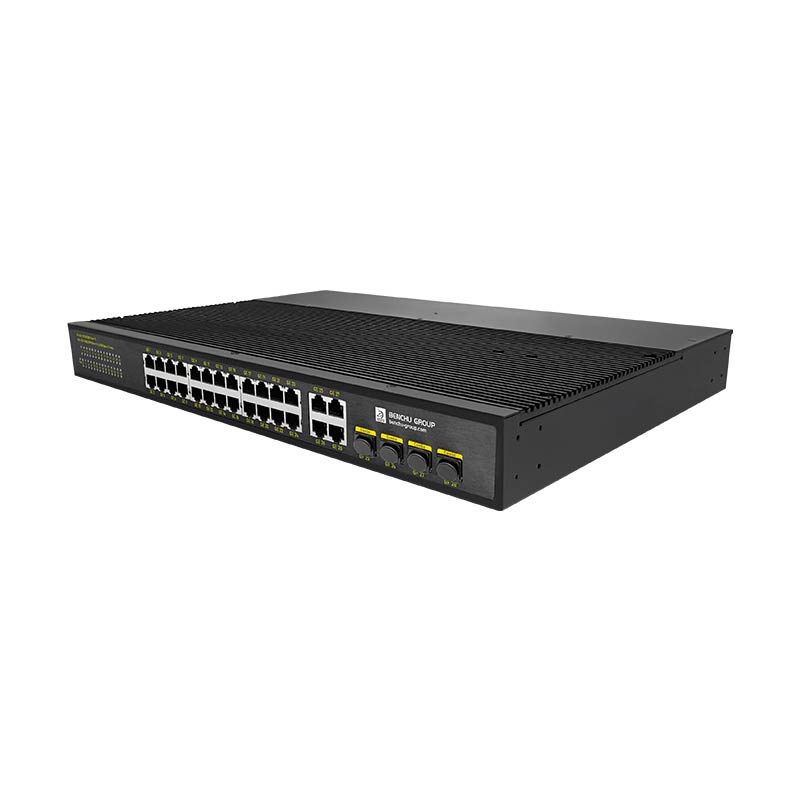

IES7221-24GE4GC-DC, 24 Port Gigabit Industrial Ethernet Switch with 4 Gigabit RJ45/SFP Combo Uplink,Rack Mount
|
Physical Port
Switching
Hardware
|
Lightning Protection
Mechanical Properties
|
Features
24-Port Gigabit Ethernet and 4 Combo Uplink Ports
The IES7221-24GE4GC-DC features 24 Gigabit Ethernet ports and 4 RJ45/SFP Combo uplink ports, ensuring fast, reliable data transmission. The uplink ports provide flexible connectivity options, allowing seamless integration with fiber-optic or copper networks. This configuration is ideal for supporting high-bandwidth applications, enabling uninterrupted data transfer in industrial automation, IoT, and smart city networks. The high port density ensures efficient network scalability for growing infrastructures.
Wide Operating Temperature Range (-30°C to 75°C)
Engineered for extreme environments, the IES7221-24GE4GC-DC operates reliably within a temperature range of -30°C to 75°C. This makes it suitable for harsh industrial conditions such as outdoor installations, factories, and transportation systems. The switch's ability to maintain stable performance in such conditions ensures uninterrupted operations, even in environments with temperature fluctuations, adding durability and reliability to industrial networks.
ESD Protection (8KV)
The IES7221-24GE4GC-DC comes with 8KV ESD (Electrostatic Discharge) protection, shielding it from electrical surges and static interference. This advanced protection prevents equipment damage, ensuring stable data flow and device longevity. It is an essential feature for installations in environments with high electrical noise, reducing the risk of network downtime and safeguarding critical operations.
IP40 Industrial-Grade Design
Housed in an IP40-rated enclosure, this industrial switch offers robust protection against dust and physical damage. Its metal construction enhances durability, ensuring reliable performance in rugged environments such as factories, mines, and outdoor industrial setups. This level of protection reduces the need for maintenance and ensures consistent operation, even in challenging conditions, making it a reliable solution for industrial networks.

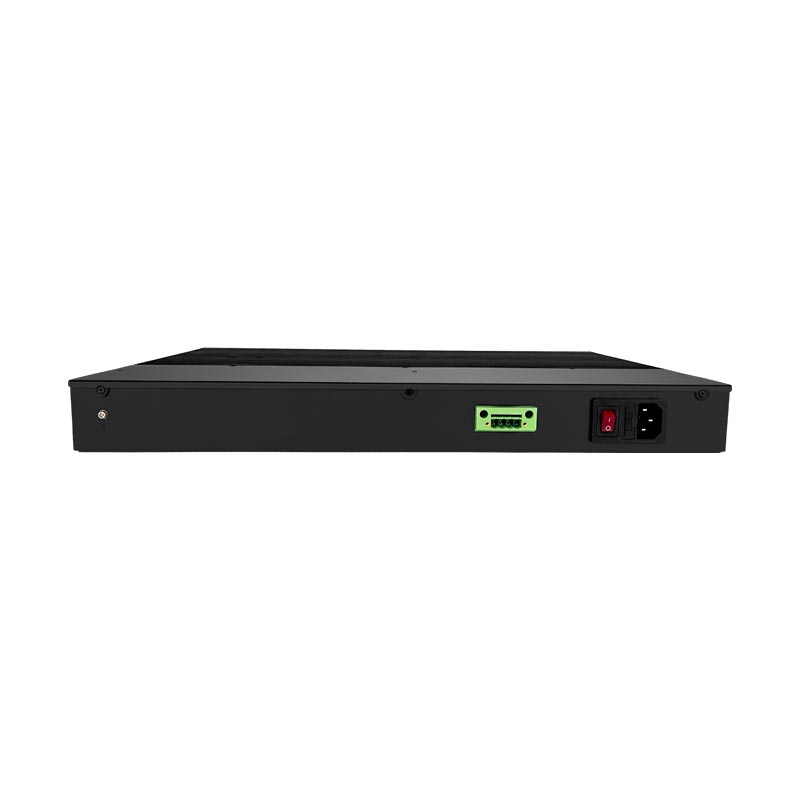

Dual DC Power Input (12–56V)
The IES7221-24GE4GC-DC supports dual DC power inputs within a wide range of 12–56V, providing redundancy and stable operation. This feature minimizes the risk of power failures, ensuring uninterrupted functionality for critical applications. The dual power input design also increases system reliability, making it a dependable choice for applications where continuous uptime is a priority, such as surveillance and automation systems.
High-Speed Data Transmission
The gigabit capability of the IES7221-24GE4GC-DC ensures high-speed data transfer, ideal for demanding applications such as high-definition video streaming, real-time IoT data, and industrial controls. Its advanced transmission speed minimizes latency and optimizes network efficiency, supporting seamless communication across large-scale networks and ensuring superior performance for mission-critical tasks.
Versatile Application Scenarios
The IES7221-24GE4GC-DC is a versatile networking solution, tailored for industrial automation, IoT, smart cities, and surveillance systems. Its rugged design, advanced features, and wide operating range make it suitable for diverse environments, from warehouses and factories to outdoor deployments. By simplifying network management and enhancing system performance, the switch supports users in building scalable, reliable, and cost-effective industrial networks with ease.

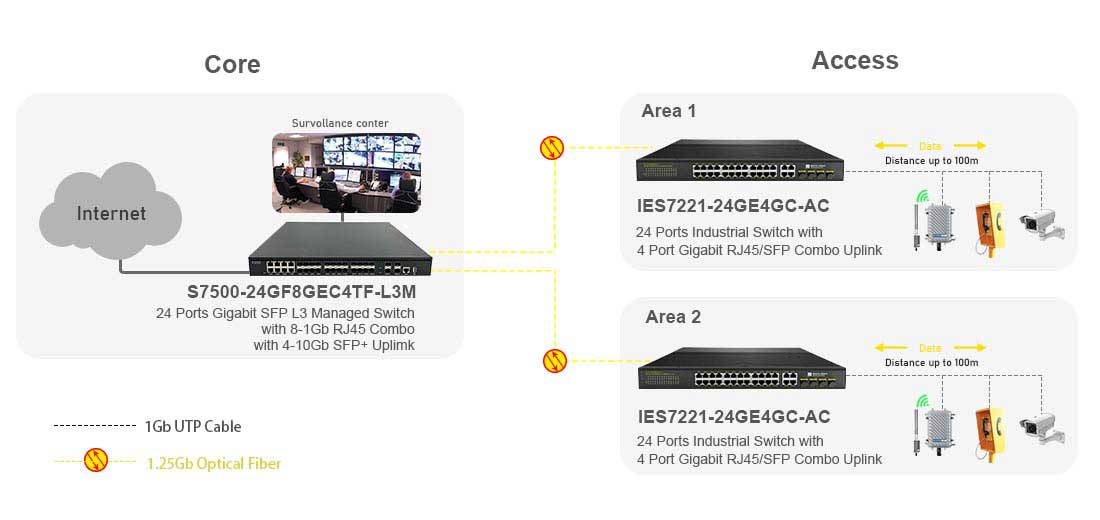

Connectivity Solutions
24 Port Gigabit Industrial Ethernet Switch with 4 Gigabit RJ45/SFP Combo Connectivity Solution
Specification
Technical Specifications :
IES7221-24GE4GC-DC10M/100M/1G RJ45 copper ports :
24Gigabit R4J5 and SFP Combo :
4Performance Specification :
*Packet buffer memory :
4.2 MbForwarding modes :
Store-and-forwardBandwidth :
128 GbpsPacket forwarding rate :
47.62Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, ActivityPer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Weight :
<5.6 kg (12.35 lb)Shell protection :
P40 high-strength aluminum caseMax power :
16WIddle power consumption :
9WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-30° to 75°C (-22° to 167°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
