IES7221-24PGE4GC-4BT-AC, 24 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++(90W) and 20 PoE+(30W) Ports, 500W Power budget
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features

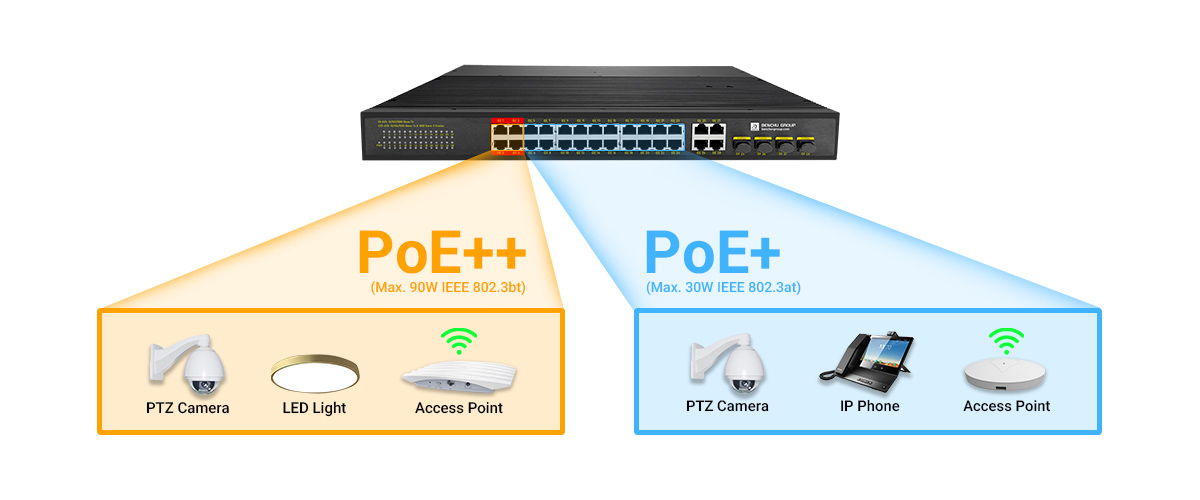

High-Power PoE++ Support
Equipped with 4 PoE++ (90W) and 20 PoE+ (30W) ports, the IES7221-24PGE4GC-4BT-AC offers a total 500W power budget, meeting the power-intensive needs of modern devices such as PTZ cameras, high-performance wireless APs, and industrial IoT equipment. This eliminates the need for additional power adapters, simplifying deployment and reducing cabling costs. Its ability to support diverse power requirements makes it suitable for applications requiring both high-power and standard PoE devices, ensuring versatility and scalability in industrial networks.
Industrial-Grade Design for Harsh Environments
Built to endure extreme industrial conditions, the IES7221-24PGE4GC-4BT-AC operates reliably in temperatures ranging from -30°C to 75°C. The rugged construction and high-quality materials ensure durability and resistance to environmental factors like dust, moisture, and vibration. It is ideal for outdoor or semi-outdoor installations in challenging environments, including factories, mines, and smart transportation systems. This robust design provides uninterrupted network performance even in the most demanding operational settings.
4 Gigabit RJ45/SFP Combo Uplink Ports
The inclusion of 4 Gigabit RJ45/SFP Combo Uplink ports provides flexibility for network expansion and high-speed data transfer. These uplinks allow seamless connections to fiber or copper cables, ensuring compatibility with a wide range of networking infrastructures. Whether scaling an existing network or connecting to core systems, these uplinks provide reliable data throughput, enabling bandwidth-intensive applications such as HD video streaming, IoT data aggregation, and critical surveillance systems.
ESD Protection for Enhanced Stability
Featuring 8KV ESD (Electrostatic Discharge) protection, this 24 port industrial PoE++ switch safeguards connected devices and network equipment against sudden electrical surges. This ensures stable and uninterrupted operation, especially in environments prone to static discharge or power fluctuations. By protecting your investment from potential damage, the switch reduces maintenance costs and prolongs the lifespan of both the network infrastructure and connected devices, making it a reliable choice for industrial applications.
Comprehensive Power Management
This 24 port industrial PoE++ switch offers intelligent power management, ensuring optimal allocation of its 500W power budget. It prioritizes critical devices while preventing overloading, improving network efficiency and reliability. Users can monitor and control power usage via an intuitive interface, reducing energy consumption and operational costs. This feature makes it ideal for deployments with varied power demands, such as large-scale surveillance systems or smart city applications, where efficient power distribution is crucial.
Plug-and-Play Installation
Designed for ease of use, the IES7221-24PGE4GC-4BT-AC supports plug-and-play installation, eliminating the need for complex configurations. This simplifies deployment, even for non-technical users, saving time and reducing operational costs. Its auto-sensing PoE ports automatically detect connected devices' power requirements, ensuring compatibility and minimizing setup errors. This feature is particularly beneficial for fast-paced industrial projects requiring quick and reliable network deployment.
Connectivity Solutions
24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution
Specification
Technical Specifications :
IES7221-24PGE4GC-4BT-AC10M/100M/1G RJ45 copper ports :
24Gigabit R4J5 and SFP Combo :
4PoE / PoE+ ports :
20 (up to 30W per port)PoE / PoE+ / PoE++ / UPoE+ ports :
4 (up to 90W per port)Power over Ethernet :
*PoE Standard :
IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over EthernetPoE Power Supply Type :
End-span: 1/2/4/5 (+), 3/6/78 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)Performance Specification :
*Packet buffer memory :
8.2 MbForwarding modes :
Store-and-forwardBandwidth :
128 GbpsPacket forwarding rate :
47.62Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex FlowMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Weight :
<6.6 kg (11.55 lb)Power Consumption :
500W (when all ports used, line-rate traffic and max PoE)Max power :
16W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
10W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-30° to 75°C (-22° to 167°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
