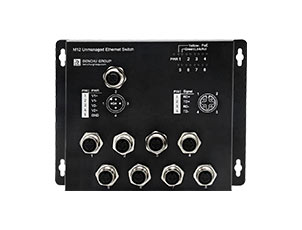

8 Ports Gigabit M12 PoE Switch, Industrial Protection IP67 Rating, Wall Mount, IES7231D-8PGE-M12
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features
8 Gigabit M12 Ports with PoE+ Support
The 8 M12 Gigabit Ethernet ports provide robust connectivity, delivering up to 30W of power per port under the IEEE 802.3af/at PoE+ standards. This makes the switch suitable for powering devices such as IP cameras, wireless access points, and sensors, eliminating the need for separate power sources.
High Electrostatic Discharge (ESD) Protection
Designed for industrial applications, this 8 Port M12 PoE switch includes ±8KV contact and ±15KV air discharge protection. This ensures reliable operation even in environments where electrostatic discharges are common, safeguarding connected devices from power surges and signal interference.
Wide Operating Temperature Range
Built for extreme conditions, the IES7231D-8PGE-M12 operates within a temperature range of -40°C to 85°C. This feature makes it ideal for outdoor and industrial environments like factories, railways, and marine applications, where standard networking equipment may not perform effectively.
IP67-Rated Industrial Casing
This 8 Ports M12 PoE switch's IP67 rating guarantees dust-tight protection and water resistance. The rugged design protects against harsh elements, making the switch highly durable for industries with demanding environmental conditions, including outdoor, heavy machinery, or transport settings.
Wall-Mount Installation for Flexibility
The wall-mount installation design allows for flexible and secure placement in various environments. This ensures that the IES7231D-8PGE-M12 can be deployed in confined or complex setups without compromising performance or accessibility.
High Backplane Bandwidth
With a 16Gbps backplane bandwidth, the IES7231D-8PGE-M12 can handle large data volumes efficiently. This feature is essential for high-performance applications that require fast data processing and transmission, such as video surveillance or real-time data monitoring.
Efficient Packet Forwarding
The IES7231D-8PGE-M12 offers a packet forwarding rate of 11.91Mpps, ensuring that network traffic is processed smoothly and efficiently. This is critical for minimizing network congestion and maintaining reliable data flow in high-demand scenarios.
Connectivity Solutions
8 Port Gigabit M12 PoE switch connectivity solution
Specification
Technical Specifications :
IES7231D-8PGE-M1210/100/1000M M12 copper ports :
8PoE / PoE+ ports :
8Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
1.2 MbForwarding modes :
Store-and-forwardBandwidth :
16 GbpsPacket forwarding rate :
11.91Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerDimensions (Width * Depth * Height) :
194 × 123 × 33 mm (7.64 x 4.84 x 1.3 in)Weight :
0.8 kg (1.76 lb)Shell protection :
IP40 high-strength aluminum casePower Requirements :
DC 48~56V, with reverse polarity protectionPower Consumption :
*Max power :
8W (worst case, all ports used, line-rate traffic) (Watts)Iddle power consumption :
5W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
M12 Industrial PoE Switch；Manual；Screws for wall mounting；Business Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
Downloads
- 8 port Gigabit M12 PoE swtich Datasheet (IES7231D-8PGE-M12)
