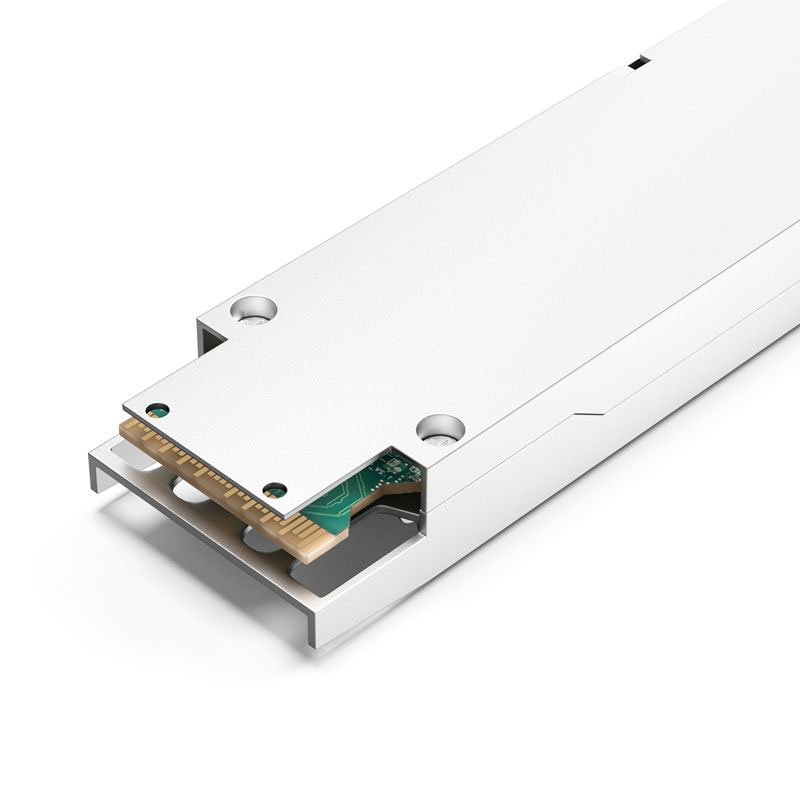

800G OSFP Optical Transceiver Module - 800GBASE 2xSR4/SR8, PAM4, 850nm, 50m, Dual MPO-12/APC, MMF, DOM Support, OSFP-800G-SR85-005
The 800G OSFP Optical transceiver module is a high-performance solution designed for 800GBASE Ethernet applications, delivering reliable data transmission at speeds of up to 50 meters over OM4 multimode fiber (MMF) using an 850nm wavelength. Equipped with dual MTP/MPO-12/APC connectors, this transceiver ensures seamless connectivity and optimal performance.
Fully compliant with IEEE P802.3ck and OSFP MSA standards, this module is engineered for next-generation high-speed networks. It supports 800G Ethernet and breakout configurations to 2x400G-SR4, providing unmatched flexibility for diverse network setups.
Applications:
Data Centers: Perfect for high-speed data transfer and connectivity in hyperscale environments.
800G Ethernet: Supports next-generation network requirements.
Breakout to 2x400G-SR4: Enhances port density and flexibility for diverse network configurations.
With its plug-and-play functionality, robust performance, and advanced diagnostic capabilities, the 800G OSFP Optical Transceiver Module is an ideal choice for modern, high-speed networking needs.
Features
High-Speed Transmission
The OSFP-800G-SR85-005 supports a data transfer rate of 800Gbps, making it ideal for high-bandwidth network environments. Utilizing PAM4 modulation technology, it achieves higher data transmission efficiency, meeting the high-speed demands of data centers and enterprise networks.
Multimode Fiber Support
This module supports multimode fiber (MMF) and can achieve a transmission distance of up to 50 meters at an 850nm wavelength. It is suitable for short-distance high-speed data transmission, such as internal connections within data centers.
Dual MPO-12/APC Interface
Featuring a dual MPO-12/APC interface design, it ensures high-density connectivity and low insertion loss. The APC (Angled Physical Contact) interface further reduces reflections, enhancing signal transmission stability.
Digital Diagnostic Monitoring (DOM)
Equipped with DOM functionality, it provides real-time monitoring of the module's operating status, including temperature, voltage, and optical power. This helps network administrators promptly identify and resolve potential issues, ensuring stable network operation.
PAM4 Modulation Technology
Utilizing PAM4 (Pulse Amplitude Modulation 4-level) technology, compared to traditional NRZ modulation, PAM4 can transmit more data within the same bandwidth, significantly improving data transmission efficiency.
Low Power Consumption Design
The OSFP-800G-SR85-005 incorporates an advanced low-power design, reducing energy consumption and operational costs. It is suitable for large-scale deployments in data centers, contributing to a green and energy-efficient network environment.
High Reliability
The module undergoes rigorous quality control and testing to ensure stable performance under high loads and harsh conditions. Its high reliability and long-life design reduce the frequency of maintenance and replacements, lowering the total cost of ownership.
Connectivity Solutions
800G OSFP Optical transceiver module Connectivity with Direct Connect Cabling
Specifications
Model :
OSFP-800G-SR85-005Form Factor :
Twin-port OSFP Finned TopData Rate :
850Gbps (8x 106.25Gbps)Wavelength :
850nmCable Distance :
30m@OM3/50m@OM4Connector :
Dual MTP/MPO-12 APCMedia :
MMFTransmitter Type :
VCSELReceiver Type :
PDTX Power :
-4.6~4dBmMinimum Receiver Power :
-6.4dBmPower Budget :
1.8dBReceiver Overload :
4dBmMax Power Consumption :
16WExtinction Ratio :
＞2.5dBDDM/DOM :
SupportedTemperature Range :
0 to 70°C (32 to 158°F)CDR (Clock and Data Recovery) :
TX & RX Built-in CDRModulation :
NRZModulation (Electrical) :
8x100G-PAM4Modulation (Optical) :
Dual 4x100G-PAM4Protocols :
OSFP MSA 5.0, CMIS 5.1Inbuilt FEC :
YesWarranty :
5 YearsCompatible Brands :
Cisco，HP，Aruba，Netgear，Juniper，Ubiquiti, HUAWEI，H3C，ZTE，Ruijie，Digital ChinaBusiness Type :
CommercialBandridth :
800GMore Filters :
DOM
Questions & Answers
Q: What network standards does the OSFP-800G-SR85-005 support?
A: The module is fully compliant with IEEE P802.3ck and OSFP MSA standards, supporting 800G Ethernet and 2x400G-SR4 breakout configurations.
Q: What is the maximum transmission distance of this module?
A: The OSFP-800G-SR85-005 supports a maximum transmission distance of 50 meters over OM4 multimode fiber.
Q: What are the typical applications for this 800G OSFP optical transceiver module?
A: It is ideal for data centers, high-speed data transmission in hyperscale environments, and next-generation 800G Ethernet requirements.
Q: What type of connector does this module use?
A: The module is equipped with dual MTP/MPO-12/APC connectors, ensuring seamless connectivity and optimal performance.
Q: Does this module support diagnostic functions?
A: Yes, the module supports DOM (Digital Optical Monitoring) for advanced diagnostic capabilities.
