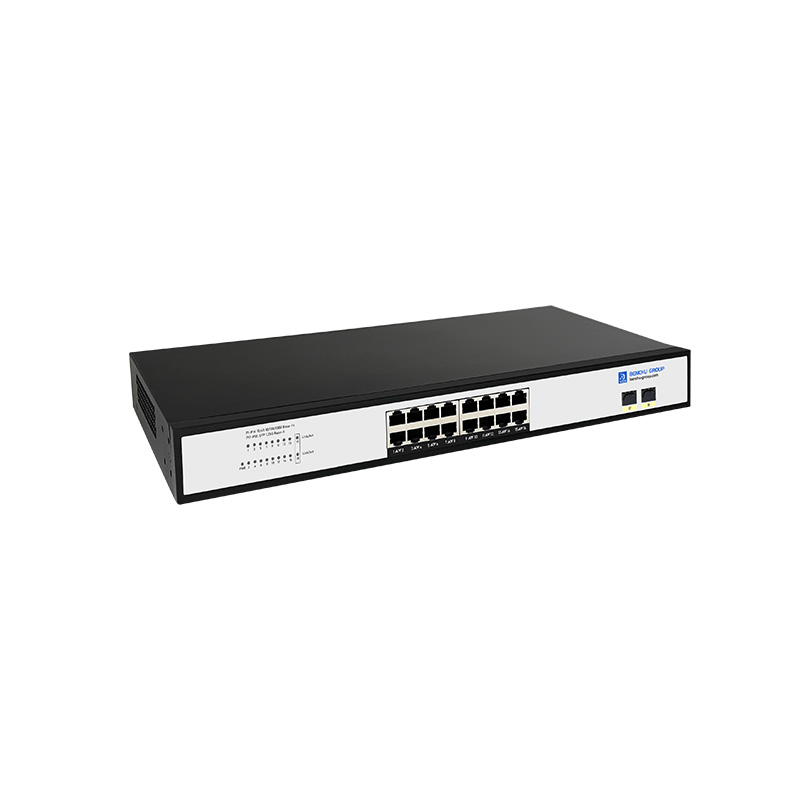

16 Port Gigabit Unmanaged Ethernet Switch with 2 Gigabit SFP Uplink, S7200-16GE2GF

Specification

• Technical Specifications :

  S7200-16GE2GF

• 10M/100M/1G RJ45 copper ports :

  16

• 1.25G SFP (fiber) ports :

  2

• Performance Specification :

  *

• Packet buffer memory :

  2.1 Mb

• Forwarding modes :

  Store-and-forward

• Bandwidth :

  56 Gbps

• Packet forwarding rate :

  26.79Mpps (64 byte packet size)

• MAC address database size :

  8K (48-bit MAC ad-dresses)

• Jumbo frame support :

  9K

• Mean Time Between Failures :

  110,215 hours (MTBF) @ 25°C

• 100M Copper Latency :

  8.314µs; 8.412µs; 8.451µs (64-byte; 1518-byte; 9216-byte frames)

• 1G Copper Latency :

  3.514µs; 3.545µs; 3.628µs (64-byte; 1518-byte; 9216-byte frames)

• 1G Fiber Latency :

  2.980µs; 3.101µs; 3.179µs (64-byte; 1518-byte; 9216-byte frames)

• IEEE Network Protocols :

  *

• Protocols :

  • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

• Monitoring :

  *

• LEDs :

  Yes

• Per port :

  Speed, Link, Activity;

• Per device :

  Power

• Physical Specifications :

  *

• Dimensions (Width * Depth * Height) :

  440 x 190 x 44.5mm (17.32 x 7.48 x 1.75 in)

• Weight :

  2.2 kg (4.85 lb)

• Max power :

  9W (worst case, all ports used, line-rate traffic) (Watts)

• Iddle power consumption :

  7W (all ports link-down standby) (Watts)

• Energy Efficient Ethernet (EEE) :

  Yes (deactivated by default)

• Fan :

  Fanless

• Environmental Specifications :

  *

• Operating Temperature :

  -20°C to 55°C (-4°F to 167°F)

• Operating Humidity :

  95% maximum relative humidity (RH), non-condensing

• Operating Altitude :

  10,000 ft (3,000 m) maximum

• Storage Temperature :

  -30°C to 70°C (-22°F to 158°F)

• Storage Humidity (relative) :

  95% maximum relative humidity, non-condensing

• Storage Altitude :

  10,000 ft (3,000 m) maximum

• Electromagnetic Emissions and Immunity :

  *

• Certifications :

  CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

• Safety :

  *

• Safety Certifications :

  CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

• Warranty and Support :

  *

• Hardware Limited Warranty :

  Limited Lifetime*

• Technical Support via Phone and Email* :

  Limited Lifetime*

• 24x7 Online Chat Technical Support :

  Limited Lifetime*

• Package Contents :

  *

• All models :

  Network Switch；AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

• Business Type :

  Commercial

• Bandridth :

  1G

• More Filters :

  Unmanaged
