4 Port Gigabit Unmanaged PoE++ Switch with 1 Gigabit RJ45 and 1 Gigabit SFP Uplink, SP5200-4PGE1GE1GF-4BT

Specification

• Technical Specifications :

  SP5200-4PGE1GE1GF-4BT

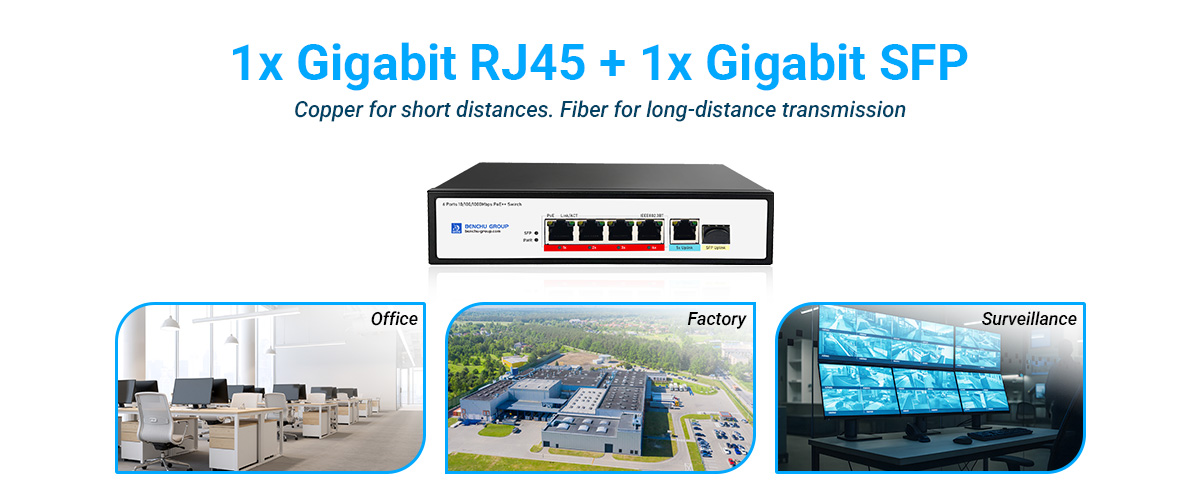

• 10M/100M/1G RJ45 copper ports :

  5

• 1.25G SFP (fiber) ports :

  1

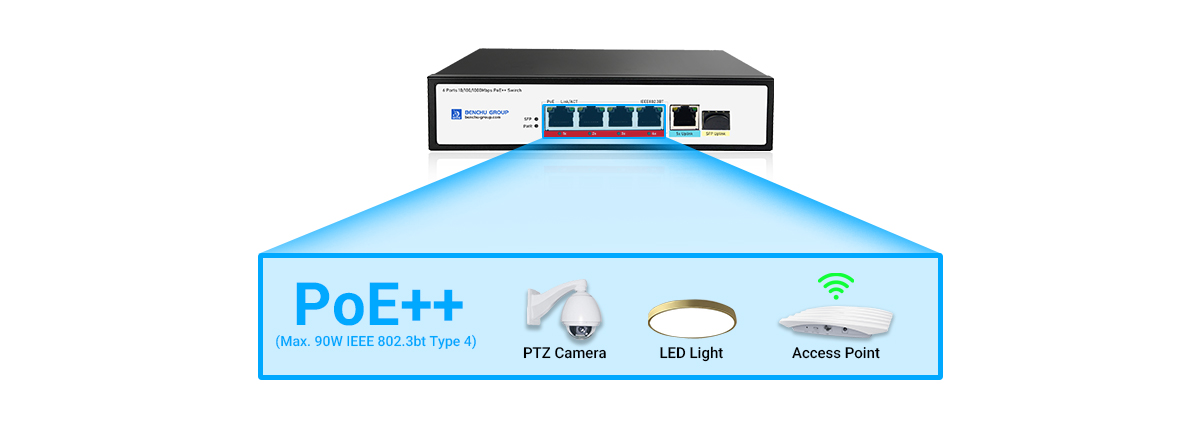

• PoE / PoE+ / PoE++ / UPoE+ ports :

  4

• Power over Ethernet :

  *

• PoE Standard :

  IEEE 802.3bt Power over Ethernet Plus+/PSE； Backward compatible with IEEE 802.3af/at Power over Ethernet

• PoE Power Supply Type :

  End-span: 1/2/4/5 (+), 3/6/7/8 (-)

• PoE Power Output :

  Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at); Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

• PoE Power Budget :

  150 Watts

• Performance Specification :

  *

• Packet buffer memory :

  1.2 Mb (Dynamically shared across only used ports)

• Forwarding modes :

  Store-and-forward

• Bandwidth :

  12 Gbps

• Packet forwarding rate :

  8.97Mpps (64 byte packet size)

• MAC address database size :

  4K (48-bit MAC ad-dresses)

• Jumbo frame support :

  Up to 9K packet size

• Mean Time Between Failures :

  121,121 hours (MTBF) @ 25°C

• IEEE Network Protocols :

  *

• Protocols :

  • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+• IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow

• Monitoring :

  *

• LEDs :

  Yes

• Per port :

  Speed, Link, Activity; PoE in different mode

• Per device :

  Power

• Physical Specifications :

  *

• Dimensions (Width * Depth * Height) :

  202x 140 x 44.5mm (7.95 x 5.51 x 1.75 in)

• Weight :

  1.1 kg (2.43 lb)

• Power Consumption :

  150W (when all ports used, line-rate traffic and max PoE)

• Max power :

  7W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

• Iddle power consumption :

  5W (all ports link-down standby) (Watts)

• Energy Efficient Ethernet (EEE) :

  Yes (deactivated by default)

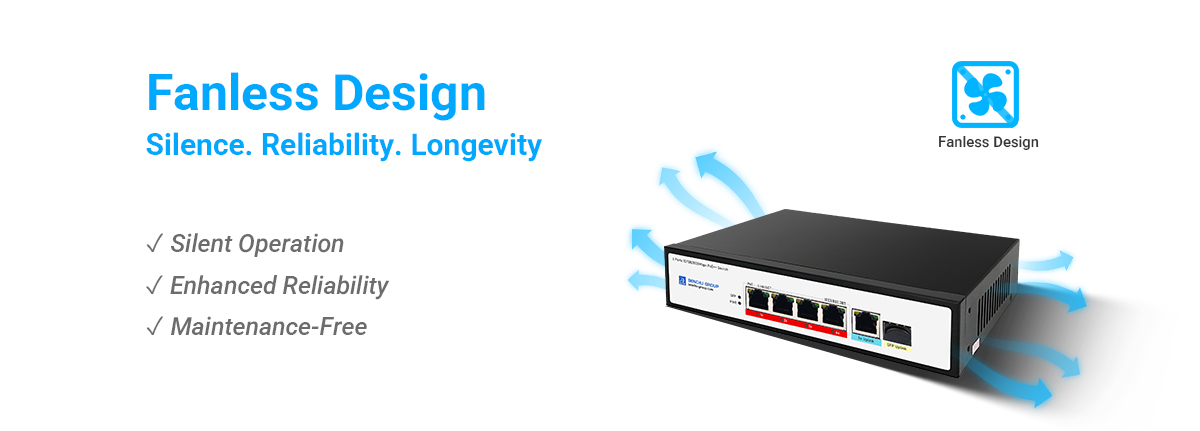

• Fan :

  Fanless

• Environmental Specifications :

  *

• Operating Temperature :

  -20° to 50°C (-4° to 122°F)

• Operating Humidity :

  90% maximum relative humidity (RH), non-condensing

• Operating Altitude :

  10,000 ft (3,000 m) maximum

• Storage Temperature :

  –20° to 70°C (– 4° to 158°F)

• Storage Humidity (relative) :

  95% maximum relative humidity, non-condensing

• Storage Altitude :

  10,000 ft (3,000 m) maximum

• Electromagnetic Emissions and Immunity :

  *

• Certifications :

  CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

• Safety :

  *

• Safety Certifications :

  CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

• Warranty and Support :

  *

• Hardware Limited Warranty :

  Limited Lifetime*

• Technical Support via Phone and Email* :

  Limited Lifetime*

• 24x7 Online Chat Technical Support :

  Limited Lifetime*

• Package Contents :

  *

• All models :

  Smart PoE Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

• Business Type :

  Commercial

• Bandridth :

  1G

• More Filters :

  Unmanaged
