24 Port 10/100M Unmanaged PoE Switch with 2 Gigabit RJ45 and 1 SFP Uplink, SP5210-24PFE2GE1GF

24 port 10/100M poe switch
unmanaged switch 24 port poe+
network switch 24 port poe+
10/100m ethernet switch 24 port poe
10/100M poe switch 24 port

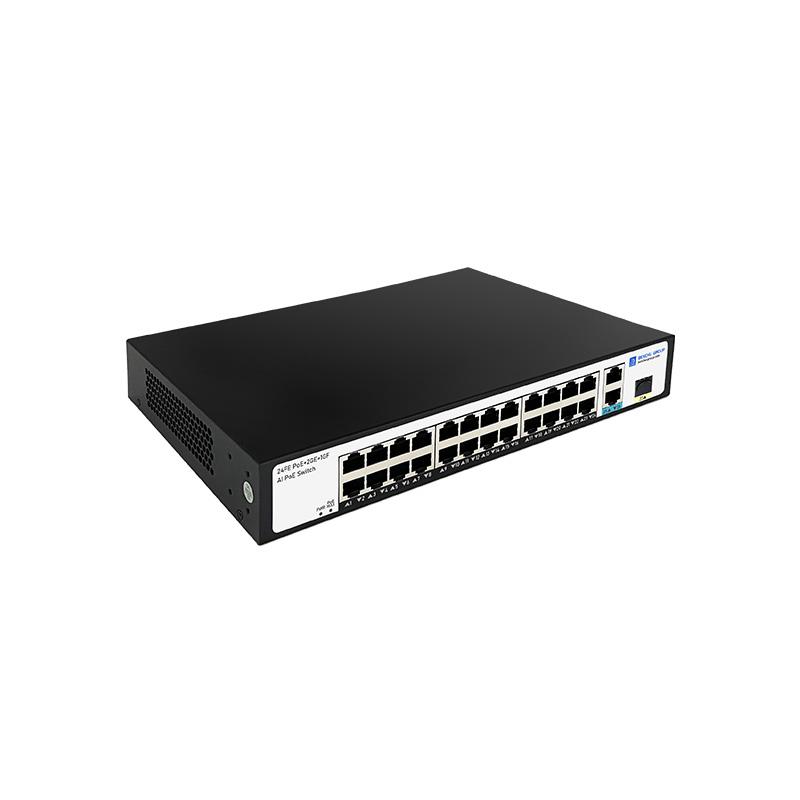

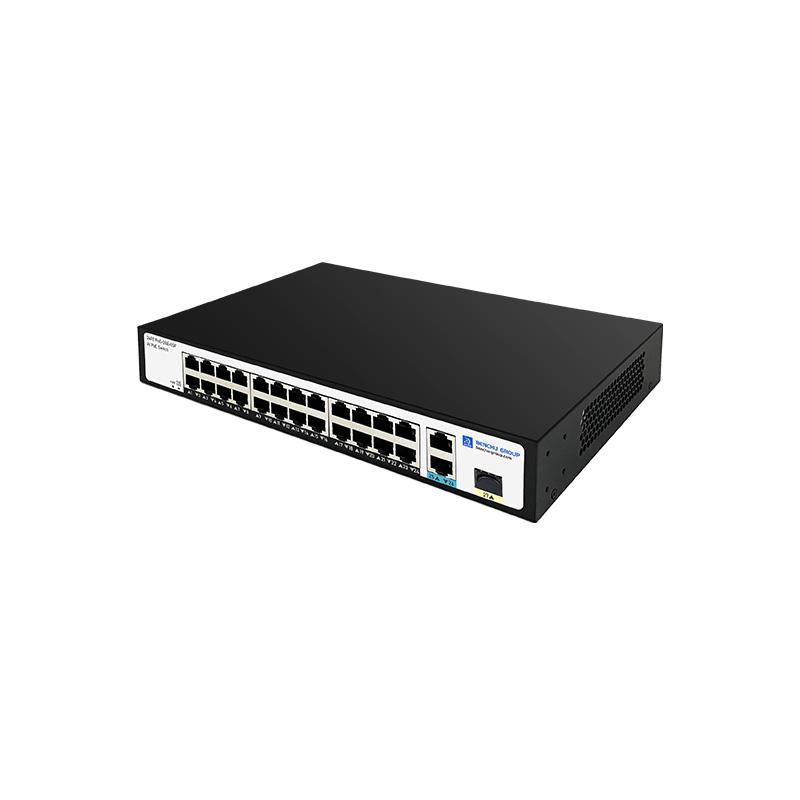

24 Port 10/100M Unmanaged PoE Switch with 2 Gigabit RJ45 and 1 SFP Uplink, SP5210-24PFE2GE1GF

Inquire Now

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 24-10/100Mbps RJ45 ports with poe
    • 2-10/100/1000Mbps RJ45 ports
    • 1-1.25Gbps mini-GBIC SFP interface
    • 24 ports supporting 52V DC power to PoE powered device(Port1-24)
    • Complies with IEEE 802.3af/at Power over Ethernet end-span
    • Supports PoE power up to 30 watts for each PoE port，
    • 280-watt PoE budget,300-watt total power budget
    • Supports "Default" "VLAN""Extend" mode selection;
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • Backplane bandwidth 7.6Gbps，Packet forwarding rate 4.2Mpps，MAC address 2k
    • Desktop palm size，Internal AC power supply

Overview



SP5210-24PFE2GE1GF, 24 Ports 100M PoE+ Switch, with 2-1Gb RJ45 Uplink, with 1-1Gb SFP, 24 PoE+ Ports@300W Power budget, Three modes:Default/VLAN/Extend 250m, Rack-Mount, Fanless

The SP5210-24PFE2GE1GF, a 24-port unmanaged PoE switch from Benchu Group, is designed to deliver high performance and versatility for small businesses, workgroups, and larger network environments. Featuring twenty-four 10/100 Mbps PoE+ ports compliant with the IEEE 802.3at standard, each port provides up to 30 watts of power to efficiently support devices like IP cameras, wireless access points, and VoIP phones. Additionally, the switch is equipped with two Gigabit RJ45 uplink ports and one Gigabit SFP port, enabling high-speed uplink connectivity and greater network scalability.



With a substantial power budget of 300 watts and three operating modes—Default, VLAN, and Extend (250m)—this switch caters to a variety of deployment scenarios. The Default mode ensures standard operation, VLAN mode enhances network segmentation and security, and the Extend mode allows power and data transmission over distances of up to 250 meters, making it suitable for extensive or remote setups.



The SP5210-24PFE2GE1GF is housed in a durable, rack-mountable chassis with a fanless design for silent operation, ideal for noise-sensitive environments. Its plug-and-play nature simplifies installation, while non-blocking wire-speed forwarding ensures smooth and reliable performance. By reducing installation costs and providing robust features, this switch is a cost-effective and scalable solution for expanding network infrastructures.



  • Physical Port
    24-10/100Mbps Fast Ethernet ports
    2-10/100/1000Mbps Gigabit Ethernet port
    1-1.25Gbps mini-GBIC SFP interface

    Power over Ethernet
    24 ports supporting PoE to PD device (Port 1 to port 24)
    Complies with IEEE 802.3af/at Power over Ethernet
    Up to 24 IEEE 802.3af/at devices powered
    Supports PoE Power up to 30 watts for each PoE port
    280-watt PoE budget, 300-watt total PoE budget,
    Hardware DIP switch for "Default", “AI”“VLAN” and “Extend” mode selection;
    Supports 25-watt PoE transmit distance of 250m in extend mode
    Remote power feeding up to 100m in Default mode
    Auto detects powered device (PD)
    Circuit protection prevents power interference between ports
  • Switching
    Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
    Flow control for full duplex operation and back pressure for half duplex operation
    Integrates address look-up engine, supporting 4K absolute MAC addresses
    Automatic address learning and address aging
    Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
    Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    High-strength metal casing.
    11-inch Rack-Mount size, 1U height
    LED indicators for PoE ready/activity and LINK/ACT
    Fanless design
    Internal AC power supply






Features

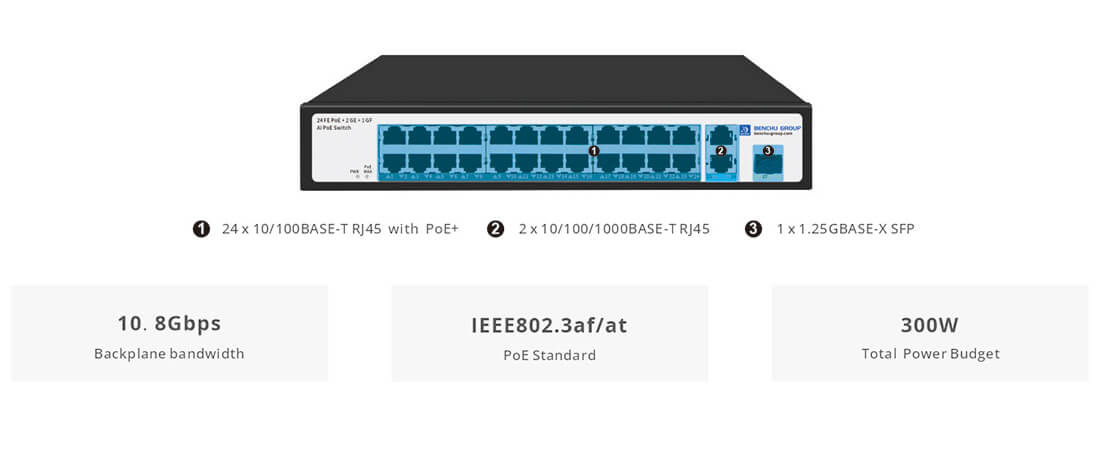

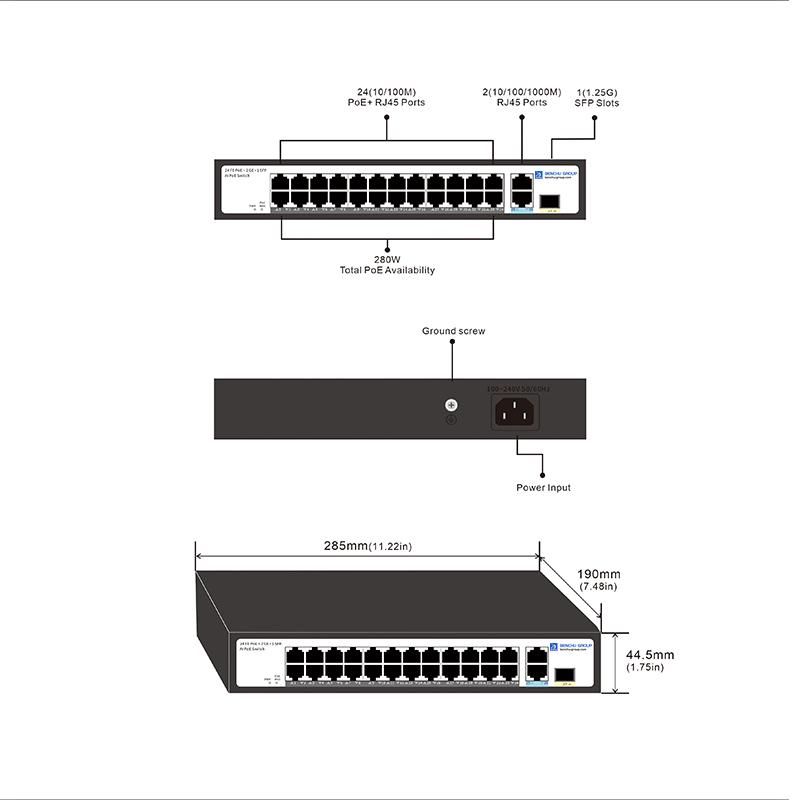

Fast Port and gigabit port and fiber Port Configuration

24 × PoE+ 10/100Mbps RJ45 ports provide up to 30W per port and total Power budget of 300W, together with 2 × 10/100/1000M RJ45 for uplink connections,with 1 x 1.25G SFP Fort to extend the network transmission distance.

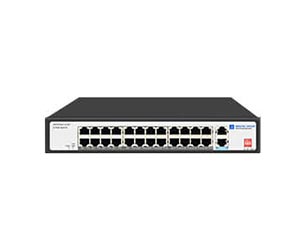

24 Ports 10/100M PoE Switch with 2Gigabit RJ45 and 1SFP

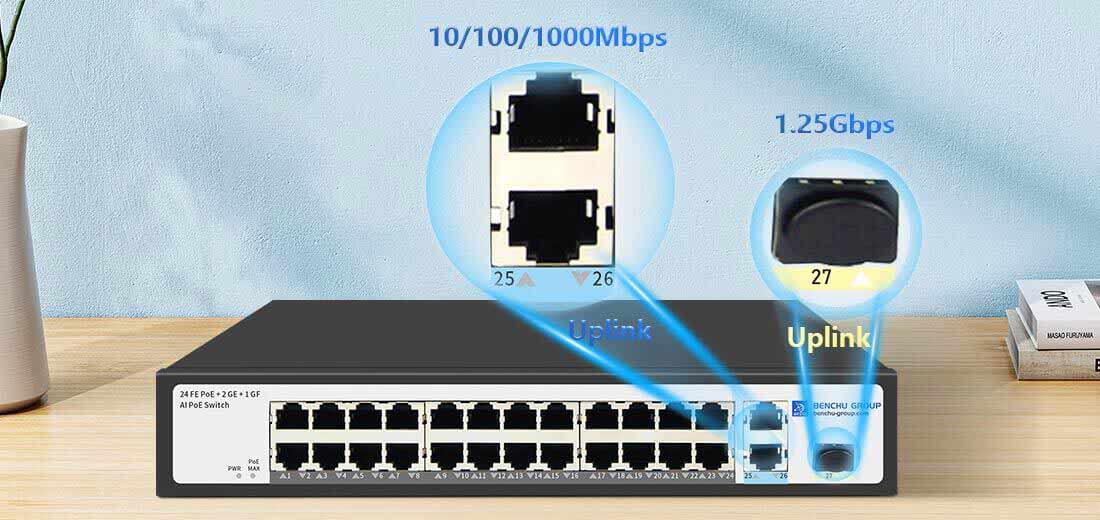

Two Gigabit RJ45 and 1Gigabit SFP Uplink

The SP5210-24PFE2GE1GF with two RJ45 and1 SFP uplink ports with Gigabit transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the 24 PoE+ ports can be used to their full potential.Fiber-Optic Link Capability Enables Extension of Network Deployment，The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.



24 port 10/100M poe switch gigabit uplink

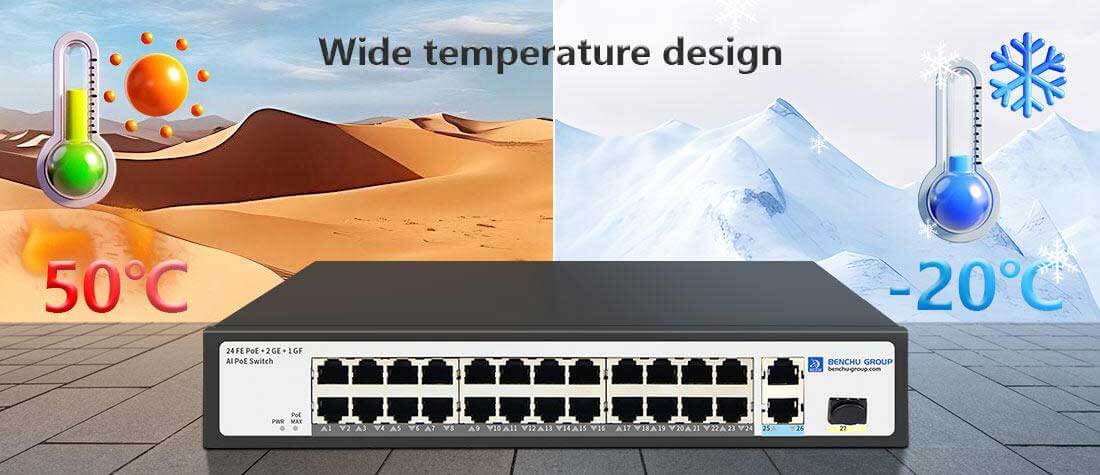

Improved Energy Efficiency (Wide temperature design -20~50℃ )
Wide temperature range PoE switches incorporate energy-efficient technologies to maintain performance without excessive power consumption. The 24 Ports 10/100M PoE switch can operate effectively without the need for additional cooling or heating equipment, leading to lower energy usage. Improved energy efficiency not only reduces operational costs but also supports environmental sustainability goals by minimizing the carbon footprint of the network infrastructure. By using energy-efficient PoE switches, organizations can achieve a balance between high performance and responsible energy consumption, contributing to both economic and ecological benefits.

Wide temperature range 24 port 10/100M PoE switches

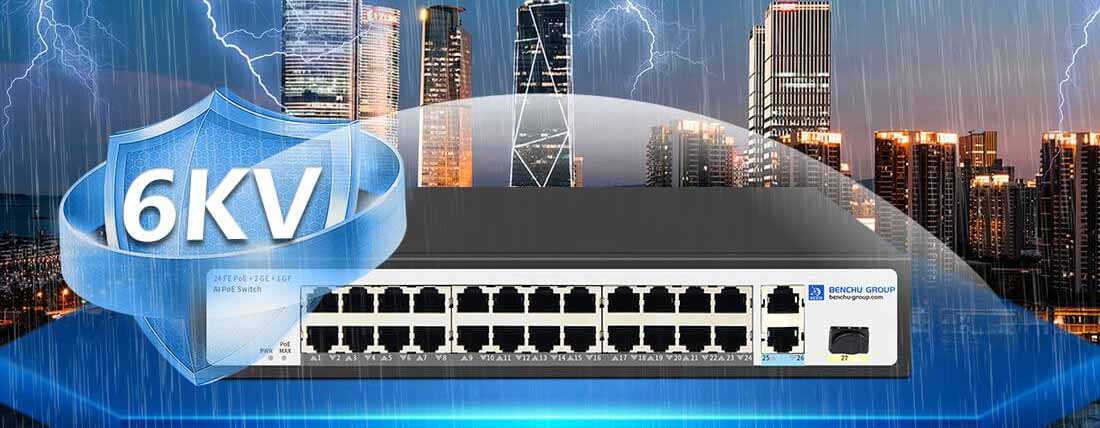

 6KV Lightning Protection design Improved Safety for Connected Devices

6KV lightning protection not only safeguards the PoE switches themselves but also protects all connected devices from surge-induced damage. This comprehensive protection ensures that endpoints like IP cameras, wireless access points, and other PoE devices remain safe during electrical surges. By mitigating the risk of surge damage, the protection extends to the entire network ecosystem, preserving the functionality and longevity of all connected equipment. This holistic approach to surge protection enhances the overall safety and reliability of the network, providing peace of mind to users who rely on consistent device performance.



24 Port 10/100M PoE Switch 6kv lightning protection

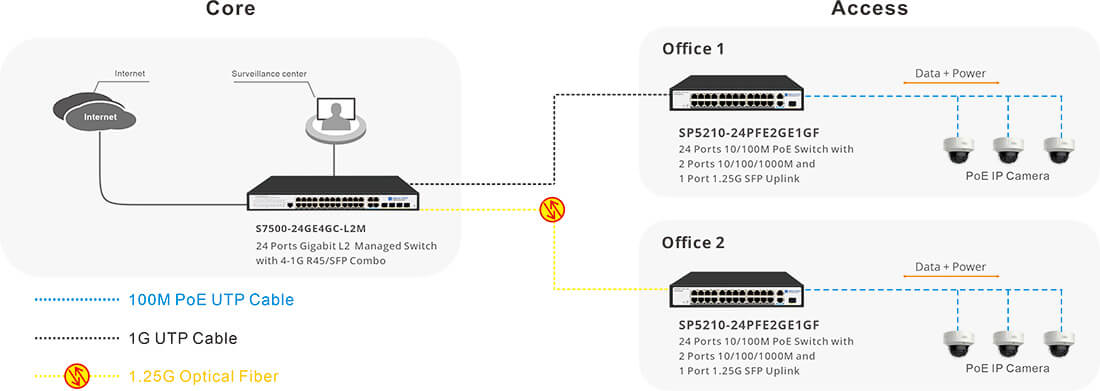

Connectivity Solutions



24 port 10/100M PoE switch with 2 Gigabit RJ45 and 1 SFP of Connectivity Solution for PoE IP Camera



24 port 10/100M PoE switch with 2 Gigabit RJ45 and 1SFP of Connectivity Solution





Specification



  • Technical Specifications :

    SP5210-24PFE2GE1GF

  • 10M/100M RJ45 copper ports :

    24

  • 10M/100M/1G RJ45 copper ports :

    2

  • 1.25G SFP (fiber) ports :

    1

  • PoE / PoE+ ports :

    24

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Budget :

    280 Watts

  • Number of PDs, 7 watts :

    24

  • Number of PDs, 15 watts :

    18

  • Number of PDs, 30 watts :

    9

  • Performance Specification :

    *

  • Chip :

    Realtek

  • Packet buffer memory :

    1.6 Mb (Dynamically shared across only used ports)

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    10.8 Gbps

  • Packet forwarding rate :

    8.04Mpps (64 byte packet size)

  • MAC address database size :

    4K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    9K

  • Mean Time Between Failures :

    110,121 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.321µs; 8.422µs; 8.435µs

  • 1G Copper Latency :

    3.543µs; 3.552µs; 3.633µs

  • 1G Fiber Latency :

    2.995µs; 3.113µs; 3.181µs

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    285 x 190 x 44.5mm (11.22 x 7.48 x 1.75 in)

  • Weight :

    2.1 kg (4.63 lb)

  • Power Consumption :

    300W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    17W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    11W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    100M+1G

  • More Filters :

    Unmanaged

Questions & Answers


Q: What is the maximum power output per port on the 24-port 100M Unmanaged PoE switch?
A1: Each PoE port typically delivers up to 30W of power, compliant with IEEE 802.3at (PoE+), suitable for powering devices like IP cameras, wireless access points, and VoIP phones.

Q: How do the gigabit network ports benefit the 24 Port 10/100M PoE switch?
A2: The two gigabit network ports provide high-speed uplink connections, ensuring efficient data transfer to the core network or other switches, enhancing overall network performance.

Q: What is the purpose of the gigabit optical port?
A: The gigabit optical port allows for fiber optic connections, offering extended range and high-speed data transmission, ideal for long-distance links and backbone network integration.

Q: Can this switch support both data and power transmission over Ethernet cables?
A4: Yes, the 24 PoE ports support simultaneous data and power transmission over a single Ethernet cable, simplifying the installation and powering of PoE-enabled devices.

Q: Is the switch suitable for both small and large network deployments?
A: Yes, the switch is versatile, suitable for small to large network deployments, offering ample PoE ports for device connectivity and high-speed uplink and optical ports for efficient data transfer.

Q: How do I monitor the power status of connected devices?
A: The 24 Ports PoE switch have LED indicators next to each port that light up when a device is connected and receiving power, providing a visual confirmation of the PoE status.
