8 Ports Gigabit UPoE+ Switch Unmanaged, with 2 Gigabit RJ45 ,with 1 Gigabit SFP, 4 PoE++ and 4 PoE+ Ports @300W Power Budget, Fanless, Rack-Mount, SP5210-8PGE2GE1GF-4BT

8 port POE++ switch
90w poe switch 8 port
POE++ switch 8 port
60w poe switch 8 port

8 Ports Gigabit UPoE+ Switch Unmanaged, with 2 Gigabit RJ45 ,with 1 Gigabit SFP, 4 PoE++ and 4 PoE+ Ports @300W Power Budget, Fanless, Rack-Mount, SP5210-8PGE2GE1GF-4BT

Inquire Now

Designed for PTZ Camera / WIFI-6 Wireless Access Point / IP Sperker

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++
    • 4-10/100/1000Mbps RJ45 ports with PoE+
    • 2-10/100/1000Mbps RJ45 ports for uplink
    • 1-1.25Gbps mini-GBIC SFP interface for extend network
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for 4 PoE port（Port 1 to 4）
    • Supports PoE power up to 30 watts for 4 PoE port（Port 5 to 8）
    • 280-watt PoE budget,300-watt total power budget
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • Backplane bandwidth 24Gbps，Packet forwarding rate 16.37Mpps，MAC address 8k
    • 11-inch Rack-Mount size, 1U height，Internal AC power supply

8 port gigabit poe switch with 2 gigabit rj45 and 1sfp authentication

Overview



SP5210-8PGE2GE1GF-4BT, 8 Ports Gigabit UPoE+ Switch Unmanaged ，with 2-1Gb RJ45 ,with 2-1Gb SFP，4 PoE++ and 4 PoE+ Ports@300W Power budget, Fanless , Rack-Mount

Benchu group’s unmanaged gigabit UPoE+ Switches SP5210-8PGE2G1GF-4BT  is a high-performance networking solution designed to meet the power and connectivity needs of modern enterprises and industrial environments. Port 1 to 4 of the eight ports supports PoE++ with IEEE 802.3bt compliance, delivering up to 90W per port.Port 5 to 8 supports PoE+ with IEEE 802.3at compliance, delivering up to 30W per port. This substantial power capacity is ideal for a variety of high-powered devices, including PTZ IP cameras, wiffi-6 wireless access points, LED lighting and digital signage, providing both power and data through a single Ethernet cable.

The SP5210-8PGE2GE1GF-BT designed for reliability and ease of use, the 8-port UPoE+ switch comes in a compact, rack-mountable form factor, making it suitable for both enterprise and industrial deployments. Its plug-and-play design allows for straightforward installation and integration into existing network infrastructures, while the robust construction ensures durability in challenging environments. With its combination of high power output, advanced features, and reliable performance, this UPoE+ switch is an ideal solution for powering and managing complex network deployments.



Physical Port

  • 4-10/100/1000Mbps Gigabit Ethernet ports with PoE++
  • 4-10/100/1000Mbps Gigabit Ethernet ports with PoE+
  • 2-10/100/1000Mbps Gigabit Ethernet ports
  • 1-1.25Gbps mini-GBIC SFP interface



Power over Ethernet

  • 4 ports supporting PoE++ to PD device (Port 1 to port 4)
  • 4 ports supporting PoE+ to PD device (Port 5 to port 8)
  • Complies with IEEE 802.3af/at/bt Power over Ethernet
  • Supports PoE Power up to 90 watts for 4 PoE port  (Port 1 to port 4)
  • Supports PoE Power up to 30 watts for 4 PoE port (Port 5 to port 8)
  • 280-watt PoE budget, 300-watt total power budget
  • Auto detects powered device (PD)
  • Remote power feeding up to 100m in standard mode
  • Circuit protection prevents power interference between ports

Switching

  • Solid performance with non-blocking architecture
  • 24Gbps Backplane bandwidth, 16.37Mpps Switch Throughput，9216 bytes Jumbo Frame
  • supporting 8K MAC addresses
  • Automatic address learning and address aging
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)



Hardware

  • High-strength metal casing.
  • 10-inch Rack-Mount, 1U height
  • LED indicators for Power,PoE Working and LINK/ACT
  • Fanless design, Silent Operation
  • Internal AC power supply





Features



Gigabit Ethernet Port and Gigabit Fiber Port Configuration

Benchu group' gigabit UPoE+ Switches SP5210-8PGE2G1GF-4BT provide 4-10/100/1000Mbps PoE++ ports(port 1 to 4) with IEEE802.3bt compliance, delivering up to 90W per port,provide 4-10/100/1000Mbps PoE+ ports(port 5 to 8) with IEEE802.3bt compliance, delivering up to 30W per port,total power budget 300W , together with 2-10/100/1000M RJ45 and 1-1.25G SFP uplink

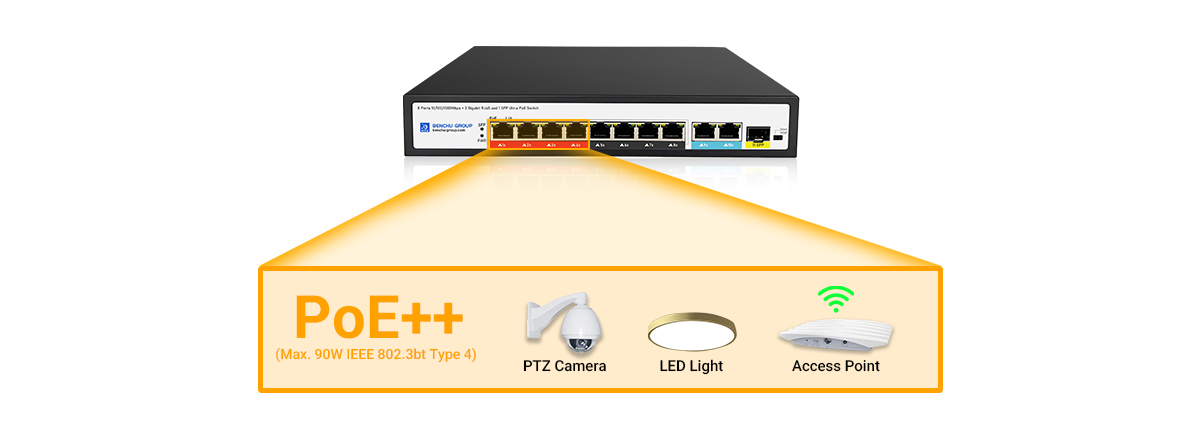

802.3bt PoE++ up to 90W (Type 4) per port

Benchu group's gigabit UPoE+ Switch SP5210-8PGE2G1GF-4BT Support PoE++ protocol, defined by the IEEE 802.3bt standard, significantly enhances Power over Ethernet capabilities, delivering up to 90W (Type 4) per port. This high power output supports advanced devices such as high-definition PTZ cameras, LED lighting, and digital signage. PoE++ ensures efficient power distribution and data connectivity through a single Ethernet cable, simplifying installation and reducing infrastructure costs. It maintains backward compatibility with previous PoE standards (IEEE 802.3af/at), allowing seamless integration with existing network devices while enabling the deployment of newer, power-intensive applications.


Wide temperature design Improved Energy Efficiency

Benchu group's Wide temperature range UPoE+ switch often incorporate energy-efficient technologies to maintain performance without excessive power consumption. These switches can operate effectively without the need for additional cooling or heating equipment, leading to lower energy usage. Improved energy efficiency not only reduces operational costs but also supports environmental sustainability goals by minimizing the carbon footprint of the network infrastructure. By using energy-efficient PoE switches, organizations can achieve a balance between high performance and responsible energy consumption, contributing to both economic and ecological benefits.





6KV Lightning Protection design Compliance with Industry Standards

The SP5210-8PGE2GE1GF-4BT UPoE+ Switch equipped with 6KV lightning protection often meet or exceed industry standards and regulatory requirements for electrical safety and surge protection. Compliance with these standards ensures that the switches are built to withstand electrical surges and provide reliable performance in various environments. This adherence to industry norms enhances the credibility and marketability of the PoE switches, as customers and stakeholders recognize the value of certified and compliant equipment. Organizations that prioritize safety and reliability in their network infrastructure benefit from using switches that meet stringent protection standards, ensuring optimal performance.





Fanless, Quiet Operation

Fanless silent design eliminates the noise generated by cooling fans, providing a quieter working environment. This is especially beneficial in noise-sensitive settings such as offices, libraries, and home networks. The absence of fan noise ensures that the PoE switch operates discreetly, contributing to a more pleasant and undisturbed atmosphere.






Connectivity Solutions



Gigabit 8 port UPoE+ switch with 2 RJ45 and 1 SFP Connectivity Solution



8 Ports POE++ Switch connection diagram





Specification





  • Technical Specifications :

    SP5210-8PGE2GE1GF-4BT

  • 10M/100M/1G RJ45 copper ports :

    10

  • 1.25G SFP (fiber) ports :

    1

  • PoE / PoE+ ports :

    4

  • PoE / PoE+ / PoE++ / UPoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3bt Power over Ethernet Plus+/PSE； Backward compatible with IEEE 802.3af/at Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2/4/5 (+), 3/6/7/8 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at); Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • PoE Power Budget :

    280 Watts

  • Performance Specification :

    *

  • Packet buffer memory :

    1.2 Mb (Dynamically shared across only used ports)

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    24 Gbps

  • Packet forwarding rate :

    16.37Mpps (64 byte packet size)

  • MAC address database size :

    8K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    Up to 9K packet size

  • Mean Time Between Failures :

    121,136 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.314µs; 8.412µs; 8.551µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.414µs; 3.545µs; 3.628µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency :

    2.980µs; 3.101µs; 3.179µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+• IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    280x 180 x 44.5mm (11.02 x 7.09 x 1.75 in)

  • Weight :

    1.6 kg (3.53 lb)

  • Power Consumption :

    300W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    12W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    8W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart PoE Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged
