8 Ports Gigabit UPoE+ Switch，with 2 Gigabit SFP，4 PoE++ and 4 PoE+ Ports，300W Power Budget，Fanless，Rack-Mount，SP5210-8PGE2GF-4BT

8 Port UPOE+ Switch
Hi-PoE Switch 8 Port
UPOE+ Switch 8 Port
Ultra PoE Switch 8 port

8 Ports Gigabit UPoE+ Switch，with 2 Gigabit SFP，4 PoE++ and 4 PoE+ Ports，300W Power Budget，Fanless，Rack-Mount，SP5210-8PGE2GF-4BT

Inquire Now

Designed for PTZ Camera / WIFI-6 Wireless Access Point / IP Sperker

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++
    • 4-10/100/1000Mbps RJ45 ports with PoE+
    • 2-1.25Gbps mini-GBIC SFP interface for extend network
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for 4 PoE port（Port 1 to 4）
    • Supports PoE power up to 30 watts for 4 PoE port（Port 5 to 8）
    • 280-watt PoE budget,300-watt total power budget
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • Backplane bandwidth 24Gbps，Packet forwarding rate 16.37Mpps，MAC address 8k
    • 11-inch Rack-Mount size, 1U height，Internal AC power supply

8 port gigabit poe switch with 2 gigabit rj45 and 1sfp authentication

Overview



SP5210-8PGE2GF-4BT，8 Ports Gigabit UPoE+ Switch Unmanaged，with 2 Gigabti SFP，4 PoE++ and 4 PoE+ Ports，300W Power budget，Fanless，Rack-Mount

In the rapidly evolving world of networking, ensuring robust connectivity and power delivery is crucial for seamless operations. The SP5210-8PGE2GF-4BT delivering 4-port PoE++ and 4 port PoE+,also with 2 Gigabit SFP optical ports for uplink，the SP5210-8PGE2GF-4BT is an innovative solution designed to meet the demanding needs of modern networks. This UPoE+ switch offers a blend of high power, flexibility, and superior performance, making it ideal for various applications, including surveillance, remote sensors, and wireless access points.



The SP5210-8PGE2GF-4BT supports the IEEE 802.3bt standard, delivering up to 90 watts PoE++ port. This high power output is essential for powering devices that require more energy, such as PTZ cameras, wireless access points, and other high-power PoE devices.



The SP5210-8PGE2GF-4BT features 2 Gigabit SFP optical ports for uplink. These optical ports provide a reliable and high-speed connection to the core network or internet, ensuring efficient data transmission and reducing bottlenecks. Also offers the flexibility to choose between various fiber types and distances, catering to different deployment scenarios and future-proofing the network infrastructure.



Benchu group's SP7210-8PGE2GF-DC gigabit PoE++ switch is an excellent choice for enterprises seeking a powerful, flexible, and reliable networking solution. Its high power output, superior uplink capabilities, robust design, and advanced management features make it a versatile addition to any network infrastructure. Whether for surveillance systems, wireless networks, or industrial applications, this switch ensures seamless connectivity and efficient power delivery, meeting the diverse needs of modern networking environments.



Physical Port

  • 4-10/100/1000Mbps Gigabit Ethernet ports with PoE++
  • 4-10/100/1000Mbps Gigabit Ethernet ports with PoE+
  • 2-1.25Gbps mini-GBIC SFP interface



Power over Ethernet

  • 4 ports supporting PoE++  (Port 1 to port 4)
  • 4 ports supporting PoE+ (Port 5 to port 8)
  • Complies with IEEE 802.3af/at/bt Power over Ethernet
  • Supports PoE Power up to 90 watts for 4 PoE port  (Port 1 to port 4)
  • Supports PoE Power up to 30 watts for 4 PoE port (Port 5 to port 8)
  • 280-watt PoE budget, 300-watt total power budget
  • Auto detects powered device (PD)
  • Remote power feeding up to 100m in standard mode
  • Circuit protection prevents power interference between ports

Switching

  • Solid performance with non-blocking architecture
  • 24Gbps Backplane bandwidth, 14.88Mpps Switch Throughput，9216 bytes Jumbo Frame
  • supporting 8K MAC addresses
  • Automatic address learning and address aging
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)



Hardware

  • High-strength metal casing.
  • 11-inch Rack-Mount, 1U height
  • LED indicators for Power,PoE Working and LINK/ACT
  • Fanless design, Silent Operation
  • Internal AC power supply







Features



Gigabit Ethernet Port and Gigabit Fiber Port Configuration

The gigabit UPoE+ Switches SP5210-8PGE2GF-4BT provide 4-10/100/1000Mbps PoE++ ports(port 1 to 4) with IEEE802.3bt compliance, delivering up to 90W per port,provide 4-10/100/1000Mbps PoE+ ports(port 5 to 8) with IEEE802.3bt compliance, delivering up to 30W per port,total power budget 300W , together with 2-10/100/1000M RJ45 and 1-1.25G SFP uplink

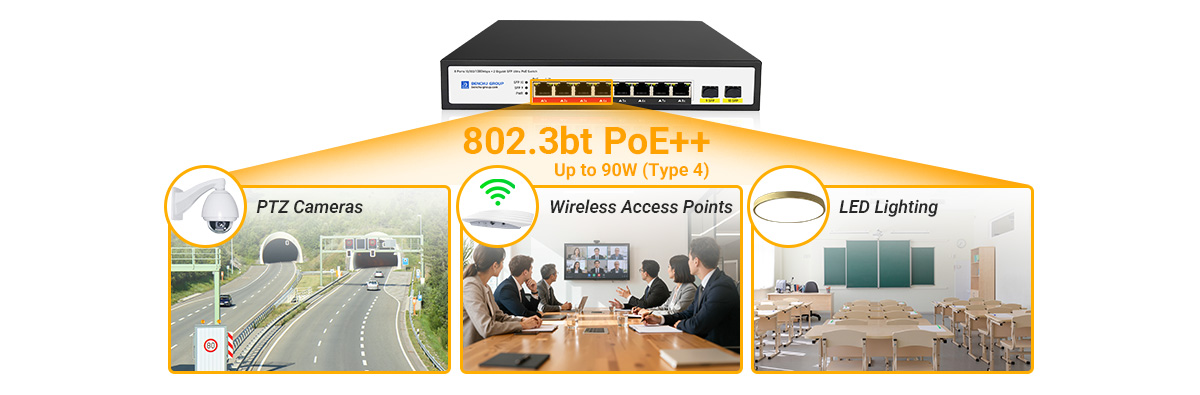

802.3bt PoE++ Up to 90W (Type 4) PoE port

The SP5210-8PGE2GF-4BT-DC support PoE++ standards IEEE802.3bt significantly improves the power delivery capabilities over Ethernet cables. Traditional PoE standards like 802.3af and 802.3at provide power up to 15.4W and 30W per port, respectively. However, 802.3bt PoE++ can deliver up to 90W per port. This substantial increase in power enables the support of more demanding devices such as PTZ cameras, high-performance wireless access points, LED lighting, digital signage, and even laptops or thin clients. The enhanced power delivery capability reduces the need for separate power supplies and additional wiring, simplifying installations and lowering costs.d compatibility with previous PoE standards (IEEE 802.3af/at), allowing seamless integration with existing network devices while enabling the deployment of newer, power-intensive applications.





Wide temperature design Improved Energy Efficiency

The UPoE+ switches with a wide temperature range simplify network expansion into areas with challenging environmental conditions. Benchu group's SP5210-8PGE2GF-4BT eliminate the need for additional climate control measures, making it easier and more cost-effective to deploy network infrastructure in remote or outdoor locations. This capability supports the growth of IoT and smart city applications, where devices are often placed in harsh environments. Simplified network expansion facilitates faster deployment, reducing project timelines and allowing organizations to quickly adapt to new requirements and opportunities, enhancing overall agility and competitiveness.





6KV Lightning Protection design Reduced Maintenance Costs

The SP5200-8PGE2GF PoE Switches with 6KV lightning protection require fewer maintenance interventions due to their enhanced resilience against electrical surges. This protection lowers the incidence of surge-related damage, reducing the need for frequent repairs or replacements of damaged equipment. Consequently, maintenance costs are significantly reduced, as less time and resources are spent on addressing surge-related issues.  This reduction in maintenance demands also minimizes network downtime, contributing to overall operational efficiency protecting user investment.





Low-power Consumption Gives to Energy Efficiency and Improved Reliability

Fanless PoE switches consume less power . Without the need to power cooling fans,the PoE switches use less electricity, leading to energy savings and lower utility bills. This energy efficiency not only reduces operational costs but also supports environmentally friendly practices by minimizing the network's carbon footprint.The absence of fans reduces the risk of mechanical failure and dust accumulation, leading to a longer lifespan and more reliable performance. This reduction in maintenance needs results in lower operational costs and less downtime, ensuring a more efficient network.





Connectivity Solutions



8 Port Gigabit UPoE+ Switch with 2 SFP Connectivity Solution



8 Port UPOE+ Switch





Specification





  • Technical Specifications :

    SP5210-8PGE2GF-4BT

  • 10M/100M/1G RJ45 copper ports :

    8

  • 1.25G SFP (fiber) ports :

    2

  • PoE / PoE+ ports :

    4

  • PoE / PoE+ / PoE++ / UPoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3bt Power over Ethernet Plus+/PSE； Backward compatible with IEEE 802.3af/at Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2/4/5 (+), 3/6/7/8 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at); Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • PoE Power Budget :

    280 Watts (all PoE ports used max )

  • Performance Specification :

    *

  • Packet buffer memory :

    1.2 Mb (Dynamically shared across only used ports)

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    24 Gbps

  • Packet forwarding rate :

    16.37Mpps (64 byte packet size)

  • MAC address database size :

    8K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    Up to 9K packet size

  • Mean Time Between Failures :

    121,136 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.314µs; 8.412µs; 8.551µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.414µs; 3.545µs; 3.628µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency :

    2.980µs; 3.101µs; 3.179µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+• IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    280x 180 x 44.5mm (11.02 x 7.09 x 1.75 in)

  • Weight :

    1.6 kg (3.53 lb)

  • Power Consumption :

    300W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    12W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    8W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart PoE Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged
