SP5220-8PXE1TF-8BT, 8 Ports 2.5G PoE++ Switch，with 1-10Gb SFP+，8 PoE++ Ports Up to 90W Per Port, 400W Power Budget
BENCHU GROUP'S 8 Port POE++ 2.5G Switch SP5220-8PXE1TF-8BT is a versatile, high-performance network switch designed for modern networking environments that demand robust power and high-speed connectivity. With eight 10/100/1000/2500Mbps RJ45 ports featuring Power over Ethernet Plus Plus (PoE++), The SP5220-8PXE1TF-8BT can deliver up to 90 watts per port, making it suitable for powering advanced, power-hungry devices such as high-definition IP cameras, WiFi 6 access points, and sophisticated VoIP phones. Additionally, it includes a 1G/2.5G/10Gbps mini-GBIC SFP+ interface, which provides flexible uplink options, enhancing network scalability and performance.
The SP5220-8PXE1TF-8BT boasts a substantial PoE budget of 380 watts and a total power budget of 400 watts, ensuring ample power distribution across all connected devices. Its high backplane bandwidth of 80Gbps supports smooth and rapid data transfer, while a packet forwarding rate of 44.64Mpps guarantees efficient data handling. The SP5220-8PXE1TF-8BT is also equipped with advanced ESD protection, capable of withstanding contact discharges of ±4KV DC and air discharges of ±6KV DC, which safeguards the device against electrical surges.
Designed for easy integration into a variety of network setups, the SP5220-8PXE1TF-8BT has a standard 19-inch rack-mount size and a compact 1U height, facilitating straightforward installation. Its internal AC power supply ensures consistent and reliable operation, making it a robust solution for both small and large-scale network deployments. Ideal for environments such as corporate networks, educational institutions, and industrial settings, BENCHU GROUP's 8 Port POE++ 2.5G Switch provides a powerful combination of high speed, substantial power, and flexible connectivity options to meet the needs of today’s demanding network applications.
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features

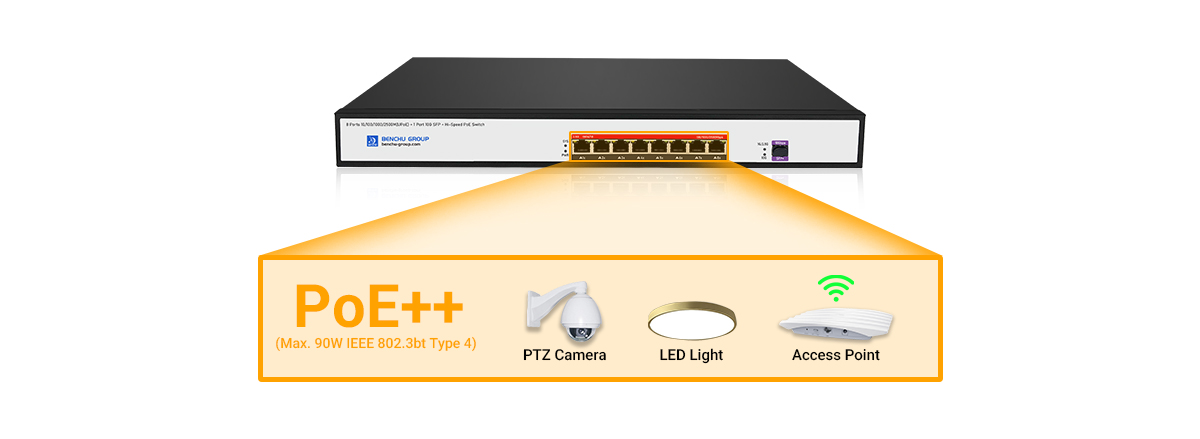

802.3bt PoE++ Power Delivery Up to 90W (Type 4) PoE Port
The SP5220-8PXE1TF-8BT 2.5G PoE switch supports the advanced IEEE 802.3bt PoE++ standard, which significantly enhances power transmission capabilities through Ethernet cables. Unlike older PoE standards like 802.3af (15.4W) and 802.3at (30W), the 802.3bt PoE++ standard can supply up to 90W per port. This increased power capacity allows for the support of high-demand devices such as PTZ cameras, high-performance wireless access points, LED lighting, digital signage, and even laptops or thin clients. This powerful feature reduces the need for separate power sources, streamlining installations and cutting down on costs. the SP5220-8PXE1TF-8BT ensures compatibility with earlier PoE standards (IEEE 802.3af/at), allowing for seamless integration with existing network devices while facilitating the deployment of newer, more power-intensive applications.

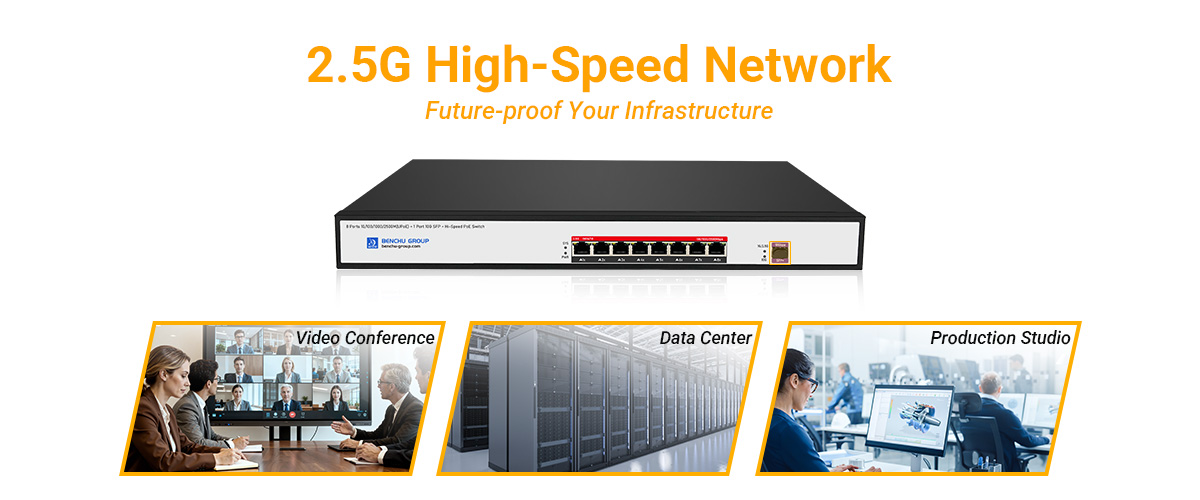

2.5G Hight Network Speeds Gives to Future-proof
Equipped with 2.5G Ethernet ports, The SP5220-8PXE1TF-8BT 2.5G PoE switches offer speeds significantly faster than traditional 1G switches, providing improved performance for data-intensive applications like HD video streaming, large file transfers, and real-time data analytics. The higher bandwidth ensures smooth, uninterrupted connectivity, supporting a greater number of devices and users simultaneously. This is particularly beneficial in environments such as offices, schools, and enterprises where high-speed network access is critical. By upgrading to 2.5G, businesses can future-proof their networks to handle increasing data demands, enhancing overall productivity and ensuring a seamless user experience.
Backward Compatibility gives to Seamless Connection
The SP5220-8PXE1TF-8BT 2.5G PoE++ switch is designed with backward compatibility, supporting legacy network devices operating at 1G and 100Mbps speeds. sures that existing infrastructure investments are protected, allowing for gradual upgrades without requiring an entire network overhaul. Users can integrate the 2.5G switch into current setups and experience improved performance where needed, while still supporting older devices. This feature makes it easier and more cost-effective to transition to higher speeds over time, as the 2.5G PoE switch can accommodate both current and future networking requirements.

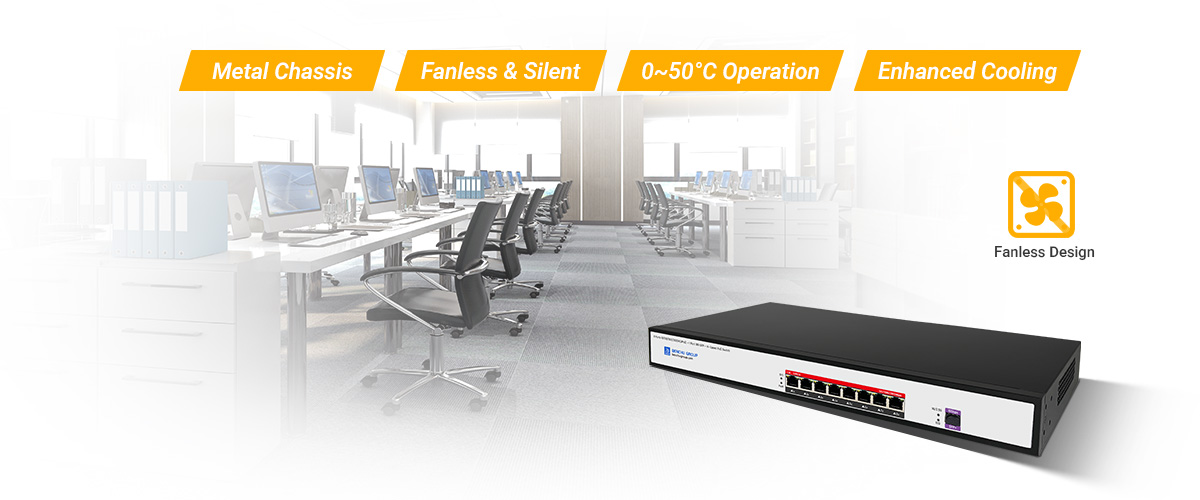

Robust and Durable Design gives to reliability and stability
The 2.5G PoE++ switches are built with a durable metal chassis and fanless design, ensuring reliable performance in various environments. The fanless operation reduces noise and minimizes dust ingress, extending the device’s lifespan and reducing maintenance needs. Additionally, the metal casing provides better heat dissipation, enhancing the switch's ability to operate in temperatures ranging from 0 to 50°C. This robust design makes the switches suitable for use in both standard office environments and more challenging industrial settings, providing long-term reliability and stability for continuous network operations.
Connectivity Solutions
8 Port PoE++ 2.5G Switch with 1-10G SFP+ Connectivity Solution
Specification
Technical Specifications :
SP5220-8PXE2TF10M/100M/1G/2.5G RJ45 copper ports :
81G/2.5G/10G SFP+ (fiber) ports :
1PoE / PoE+ / PoE++ / UPoE+ ports :
8Power over Ethernet :
*PoE Standard :
IEEE 802.3bt Power over Ethernet Plus Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2/4/5 (+), 3/6/7/8 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)PoE Power Budget :
400 WattsPerformance Specification :
*Packet buffer memory :
4.2 MbForwarding modes :
Store-and-forwardBandwidth :
80 GbpsPacket forwarding rate :
44.64Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
Up to 9K packet sizeMean Time Between Failures :
112,213 hours1G Copper Latency :
3.514µs; 3.645µs; 3.728µs (64-byte; 1518-byte; 9216-byte frames)2.5G Fiber Latency :
3.132µs; 3.245µs; 3.328µs (64-byte; 1518-byte; 9216-byte frames)10G Fiber Latency :
2.831µs; 2.995µs; 3.012µs (64-byte; 1518-byte; 9216-byte frames)IEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3bz 2.5GBASE-T• IEEE 802.3ae 10G BASE-X • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)Monitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440x 190 x 44.5mm (17.32 x 7.48 x 1.75 in)Weight :
2.6 kg (5.73 lb)Power Consumption :
400W (when all ports used, line-rate traffic and max PoE)Max power :
15W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
12W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-20° to 50°C (-4° to 122°F)Operating Humidity :
90% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
–20° to 70°C (– 4° to 158°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart PoE Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
CommercialBandridth :
2.5GMore Filters :
Unmanaged
