What is a PoE splitter, and how does it function?

A PoE splitter is a device that separates the power and data delivered over a single Ethernet cable, enabling non-PoE devices to receive power and data from a PoE-enabled switch or PoE injector. This allows devices that do not support PoE natively, such as older IP cameras, access points, or small networking equipment, to be integrated into a PoE network without requiring separate power adapters or outlets.

How a PoE Splitter Works

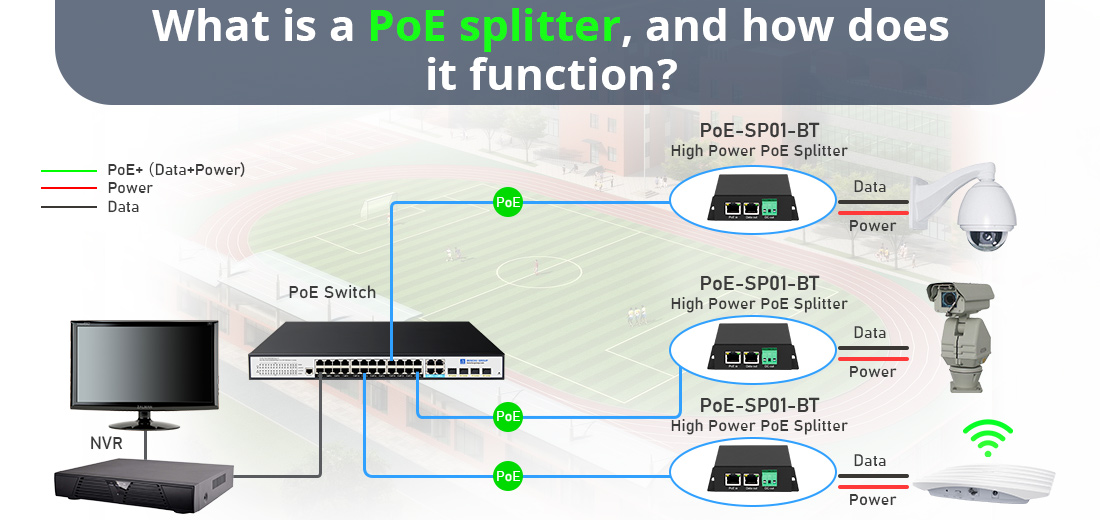

In a PoE network, power and data are transmitted together over a single Ethernet cable (Cat5e, Cat6, etc.) from a PoE switch or PoE injector to the powered device. A PoE splitter splits these two signals into separate data and power outputs. Here's a breakdown of its functioning:

1.Input: The PoE splitter connects to the Ethernet cable coming from a PoE-enabled device (such as a PoE switch or injector). This cable carries both power and data signals.

2.Splitting Power and Data: Inside the PoE splitter, the device separates the data signal from the power supply:

--- Data: The data signal continues through the Ethernet port to the device.

--- Power: The power signal is extracted and sent to the device via a separate DC power output (with voltages such as 5V, 9V, or 12V, depending on the device's requirements).

3.Output:

--- The Ethernet cable connects to the data port on the non-PoE device, providing network connectivity.

--- The DC power cable from the splitter plugs into the device's power input, supplying the necessary voltage to power the device.

Use Case Example

Imagine you have an older IP camera that does not support PoE, but you want to integrate it into a modern PoE-powered security network. Using a PoE splitter, you can deliver both data and power to the camera using a single Ethernet cable from a PoE switch. The splitter will separate the data and power, sending the data to the camera via the Ethernet port and the power through the camera's power input (e.g., 12V DC).

Advantages of PoE Splitters

1.Eliminates the Need for Separate Power Cables: A PoE splitter allows you to deliver power and data to non-PoE devices using just one Ethernet cable, reducing the need for additional power outlets and simplifying installations.

2.Cost-Effective: It’s a budget-friendly solution to integrate non-PoE devices into a PoE network without upgrading the devices themselves.

3.Flexible Power Supply: PoE splitters usually offer adjustable output voltages (5V, 9V, 12V, etc.) to match the requirements of various non-PoE devices.

4.Extended Reach: PoE splitters can extend the reach of devices up to 100 meters (328 feet) from the PoE switch, which is the maximum standard for Ethernet cable length.

Limitations of PoE Splitters

1.Dependent on Cable Distance: The standard Ethernet cable limit of 100 meters applies to the data and power transfer, which may require PoE extenders for longer distances.

2.Requires PoE Infrastructure: PoE splitters can only function if the source network uses PoE switches or injectors.

3.Limited Power Supply: A splitter can only provide as much power as the PoE standard allows. For high-power devices, a PoE++ splitter may be necessary to ensure sufficient power output.

Conclusion

A PoE splitter is an essential tool for integrating non-PoE devices into a PoE network by separating power and data signals. It simplifies the deployment of legacy equipment without the need for separate power sources, offering a practical, flexible, and cost-effective solution for modern network environments.
