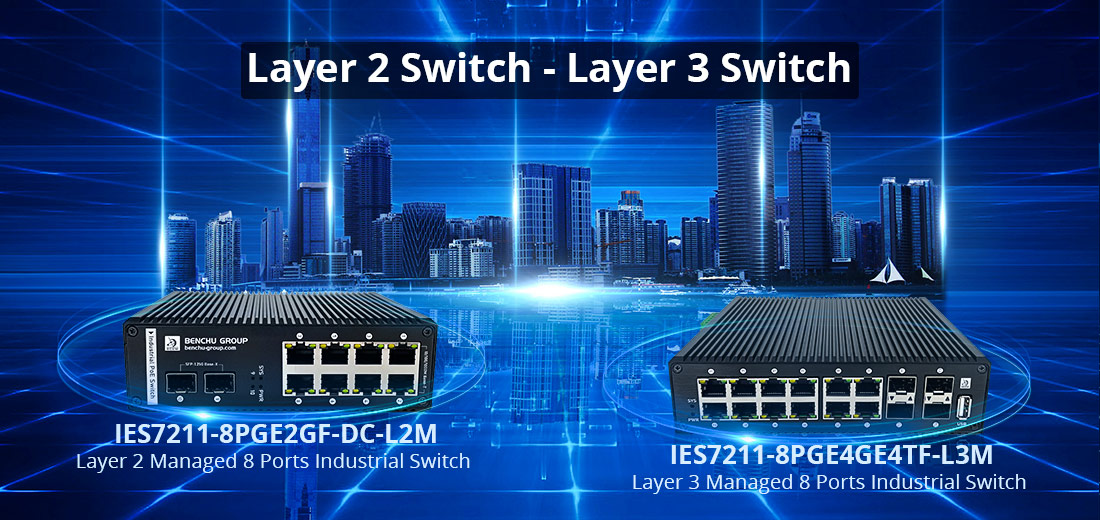

What is the difference between Layer 2 and Layer 3 industrial switches?

The primary difference between Layer 2 (L2) and Layer 3 (L3) industrial switches lies in their networking functions and capabilities, especially in how they handle data transmission, routing, and network segmentation. Understanding these differences is crucial when designing or maintaining an industrial network, as the selection of the appropriate switch type can significantly impact network performance, security, and scalability.Here is a detailed description of the key differences between Layer 2 and Layer 3 industrial switches:

1. Networking Model and OSI Layers

Both Layer 2 and Layer 3 switches operate based on the Open Systems Interconnection (OSI) model, but they function at different layers:

Layer 2 Switches (Data Link Layer):

--- Operate at Layer 2 of the OSI model (the Data Link Layer).

--- They forward data based on MAC addresses.

--- Primary function: Switching, which means forwarding packets within a local network (i.e., within the same broadcast domain).

--- Used to connect devices like computers, sensors, and industrial equipment on the same VLAN or subnet.

Layer 3 Switches (Network Layer):

--- Operate at Layer 3 of the OSI model (the Network Layer).

--- Forward data based on IP addresses, in addition to MAC addresses.

--- Primary function: Routing between different VLANs or subnets, as well as switching within the same subnet.

--- They combine the capabilities of a router (IP routing) with a switch (MAC address switching).

2. Functionality and Use Cases

Layer 2 Industrial Switches:

--- Switching: L2 switches only handle traffic within the same network segment or broadcast domain (i.e., same VLAN or subnet). They forward frames based on MAC addresses stored in their MAC address table. When a frame is received, the switch checks the destination MAC address and forwards it to the correct port.

--- Use Case: L2 switches are ideal for simple networks where all devices are part of the same VLAN or subnet, such as in small industrial setups where there is no need to route traffic between different networks. They are mainly used to aggregate traffic in local area networks (LANs).

--- Example: In a factory, an L2 switch might connect several machines on a production line that are all part of the same VLAN. It efficiently forwards data between these machines based on their MAC addresses, allowing them to communicate without the need for routing.

--- Limitations: L2 switches cannot route data between different VLANs or subnets. If multiple VLANs are present in the network, a router or a Layer 3 switch would be required to facilitate communication between them.

Layer 3 Industrial Switches:

--- Switching and Routing: L3 switches can perform both switching (forwarding based on MAC addresses within the same VLAN or subnet) and routing (forwarding based on IP addresses between different VLANs or subnets). They have routing tables and can make decisions on the best path for sending packets between different networks, much like a router.

--- Use Case: L3 switches are used in complex or large industrial networks where there are multiple VLANs or subnets, and traffic needs to be routed between these segments. They are ideal for environments where you need both local network communication and the ability to forward traffic between different segments of the network.

--- Example: In a large industrial facility with multiple departments (e.g., production, quality control, and administration), each department might be on a different VLAN. A Layer 3 switch allows communication between these VLANs by routing traffic at the network layer.

Advantages:

--- Inter-VLAN Routing: L3 switches can route traffic between different VLANs without the need for an external router, reducing latency and simplifying network design.

--- Network Segmentation: They provide better network segmentation and security by isolating traffic between different network segments.

--- Performance: L3 switches often perform routing faster than traditional routers because they perform both switching and routing in hardware (rather than software), improving throughput and reducing network delays.

3. MAC Address vs. IP Address Forwarding

Layer 2 Switches:

--- Use MAC addresses to forward frames. Each port on the switch learns the MAC addresses of the devices connected to it and uses this information to forward frames to the appropriate device.

--- Forwarding decisions are made based on the Layer 2 header, which includes the MAC addresses of the source and destination devices.

Layer 3 Switches:

--- Use both MAC addresses for switching within a VLAN and IP addresses for routing between different VLANs or subnets.

--- L3 switches examine the Layer 3 (IP) header to make forwarding decisions between different subnets, much like a router.

--- They maintain routing tables to determine the best path for forwarding packets based on the IP destination.

4. VLAN Support and Inter-VLAN Routing

Layer 2 Switches:

--- Support VLANs (Virtual Local Area Networks), allowing network segmentation by separating traffic into different VLANs.

--- However, L2 switches cannot perform inter-VLAN routing. To allow communication between different VLANs, you need an external router or a Layer 3 switch to route traffic.

Layer 3 Switches:

--- Can not only handle VLANs but also provide inter-VLAN routing, which allows devices in different VLANs to communicate with each other.

--- This reduces the need for a separate router, simplifying the network architecture and reducing latency since routing is done internally by the switch.

--- Example: Devices on VLAN 10 and VLAN 20 can communicate with each other through the Layer 3 switch, without needing an external router.

5. Network Scalability and Design

Layer 2 Switches:

--- Ideal for flat network designs, where all devices are part of a single VLAN or subnet.

--- They are used in smaller, localized networks or as access switches in larger networks.

--- Limited in scalability since they cannot route traffic between different subnets or VLANs.

Layer 3 Switches:

--- Suitable for hierarchical or complex network designs that require routing between multiple VLANs or subnets.

--- Provide more scalability as they allow for segmentation of the network into different broadcast domains, improving performance, security, and management.

--- Often used as core switches in industrial networks, handling both local traffic and routing between different network segments.

6. Security and Control

Layer 2 Switches:

--- Limited in terms of security features compared to Layer 3 switches. They primarily rely on MAC-based filtering and VLAN segmentation to control traffic.

Layer 3 Switches:

--- Offer more advanced security features, including the ability to control traffic based on IP addresses.

--- Support Access Control Lists (ACLs), which can filter traffic at the Layer 3 level (e.g., based on IP addresses, protocols, ports).

--- This gives network administrators more granular control over which devices and users can access different parts of the network.

7. Performance Considerations

Layer 2 Switches:

--- Typically provide high-speed switching at the Data Link Layer, making them efficient for handling local traffic within the same VLAN.

--- If routing is needed, the traffic must pass through an external router, potentially causing additional latency.

Layer 3 Switches:

--- Offer both high-speed switching and routing capabilities.

--- Routing is done at hardware speeds (using ASICs—Application-Specific Integrated Circuits), which is generally faster than traditional routers that perform routing at the software level.

--- This improves performance when routing between different VLANs or subnets in large industrial networks.

8. Cost Differences

Layer 2 Switches:

--- Less expensive compared to Layer 3 switches, making them suitable for small networks or specific use cases where routing is not needed.

Layer 3 Switches:

--- Generally more expensive due to their advanced routing capabilities, but they provide better long-term value in complex, large-scale industrial networks where inter-VLAN routing and advanced features are needed.

Conclusion

In summary, the main difference between Layer 2 and Layer 3 industrial switches is the ability to route traffic between different networks:

--- Layer 2 switches operate at the Data Link Layer, focusing on switching data within the same network using MAC addresses. They are ideal for simple or localized networks where devices are on the same VLAN or subnet.

--- Layer 3 switches operate at both the Data Link Layer and Network Layer, capable of both switching within a network and routing between different VLANs or subnets using IP addresses. They are suited for more complex networks that require both switching and routing capabilities, making them ideal for large industrial environments that need scalability, security, and efficient data traffic management.

Selecting between Layer 2 and Layer 3 switches depends on the size, complexity, and specific requirements of your industrial network.
