Overview

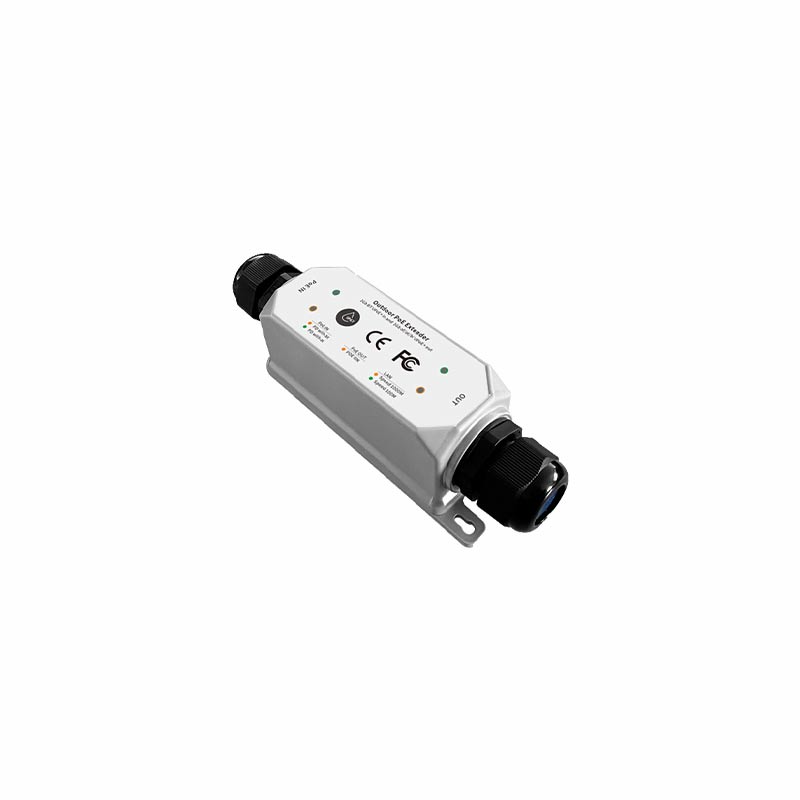

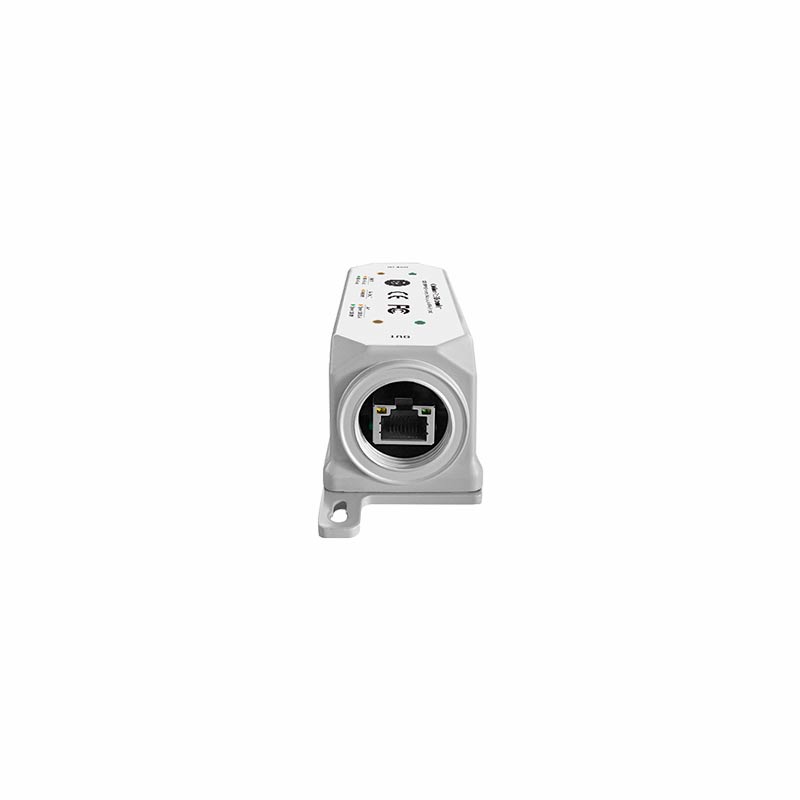

POE-IEX01G-WF90, Industrial Outdoor PoE++ Extender
The BENCHU GROUP's POE-IEX01G-WF90 is a robust industrial-grade PoE extender designed specifically for point-to-point PoE applications in demanding environments. With an IP67 rating, this device is highly resistant to dust and water, making it ideal for outdoor and harsh industrial settings. It features a 1-port 802.3bt PoE++ input that can receive up to 90 watts of power, while its output port delivers up to 75 watts of PoE power. This allows for the extension of both Gigabit Ethernet data and power over standard UTP cables, effectively doubling the reach of your network without the need for additional cabling or power supplies.
The POE-IEX01G-WF90 is engineered to simplify the expansion of PoE networks, especially in scenarios where running new cables is impractical or costly. Its ability to extend power and data up to 100 meters makes it a versatile solution for deploying high-powered devices like PTZ cameras, wireless access points, and other PoE-enabled devices in remote locations. Additionally, the device's rugged design ensures reliable performance in extreme temperatures and weather conditions, contributing to long-term network stability and reducing maintenance needs.
This makes the POE-IEX01G-WF90 an excellent choice for enhancing network flexibility and efficiency, particularly in industrial automation, smart cities, and surveillance systems where reliable, high-powered PoE connections are essential. By eliminating the need for external power adapters and additional cabling, the POE-EX01W offers a cost-effective and efficient solution for expanding your network's reach.
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features
Single PoE++ Output Channel
The 1-channel PoE++ extender POE-IEX01G-WF90 provides a single output port, designed to deliver both power and data to one PoE-enabled device over a single Ethernet cable. It supports up to 75 watts of power output, complying with IEEE 802.3af/at/bt standards, making it perfect for high-power devices such as IP cameras, wireless access points, and other networked devices. This extender is ideal for installations where extending the network’s reach to a single device is necessary, ensuring stable and efficient power delivery for consistent performance, especially in environments requiring long-distance connectivity without additional power sources.
IP67-Rated Outdoor Durability
The POE-IEX01G-WF90 PoE++ extender is built with a rugged, IP67-rated enclosure, providing outstanding protection against water, dust, and harsh weather conditions. The robust design is tailored for outdoor use in industrial settings, public areas, or anywhere environmental challenges are a concern. Its durable construction ensures reliable performance and longevity, minimizing the risk of damage from exposure to the elements. With an ability to operate in a wide range of temperatures, this extender is suitable for harsh environments, including extreme heat and cold, ensuring consistent network connectivity and reducing maintenance costs.
Extended Network Reach of Up to 400 Meters
Designed to enhance the range of PoE connections,use daisy-chaining multiple extender units, the POE-IEX01G-WF90 allows data and power to be transmitted over distances up to 400 meters (328 feet) from the power source. This extended reach is particularly useful in large outdoor areas, such as campuses or remote industrial sites, where network devices are spread out. By extending both power and data without requiring additional cables or power sources, this PoE++ extender helps to maintain a clean and efficient setup, making it easier and more cost-effective to deploy network equipment in distant locations.
High Power Efficiency and Safety Features
The 1-channel PoE++ extender delivers up to 75 watts of power efficiently, optimizing energy use while ensuring high performance for connected devices. It is equipped with advanced safety features, including overvoltage, overload, and short-circuit protection, to safeguard both the extender and connected devices. This high level of power efficiency reduces operational costs by minimizing energy consumption, and the integrated safety features enhance the durability and reliability of the network setup. These characteristics make the extender a dependable choice for critical applications where uninterrupted power and data transmission are crucial.
Easy Installation with Auto-Sensing Technology
Featuring plug-and-play installation, this PoE++ extender POE-IEX01G-WF90 is user-friendly and requires no additional software or complex configuration. The auto-sensing technology automatically adjusts power output to match the requirements of connected devices, ensuring compatibility and preventing damage. This simplifies deployment, even for users with minimal technical expertise, making it ideal for quick installations and network expansions. The straightforward setup process saves time and reduces downtime, enhancing overall productivity and efficiency in deploying network equipment across various environments.
Connectivity Solutions

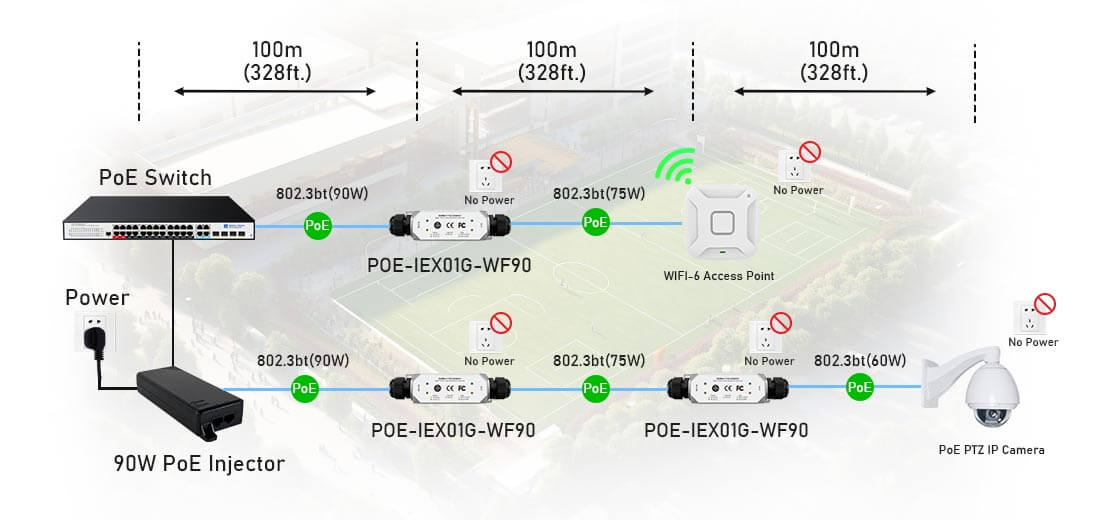

Industrial PoE Extender Connection Diagram
Specification
| Model | PoE-IEX01WF-90W |
| Hardware Specifications | |
| Interface |
PoE in Port: 1 x 10/100/1000BASE-T Ethernet POE PD In PoE out Port: 1x 10/100/1000BASE-T Ethernet POE PSE Out |
| LED Indicator | Link/ACT |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Network Cable | UTP cat 5 or abover |
| Backplane bandwidth | 10Gbps |
| Packet forwarding rate | 3Mpps @ 64Bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Dimensions (W x D x H) | 160 x 43 x 36 mm (6.3in x 1.69in x 1.42in) |
| Weight | 0.25kg |
| Power over Ethernet (PoE) Specifications | |
| PoE Standard |
PoE in Port：IEEE 802.3af/at/bt PoE PD PoE out Port：EEE 802.3af/at/bt PoE PSE |
| PoE Power |
PoE in Port：48~56V DC, max. 90 watts PoE out Port：48~56V DC, max. 75 watts |
| Power Pin Assignment |
PoE in Port：1/2/4/5(-), 3/6/7/8(+)； PoE out Port：1/2/4/5(-), 3/6/7/8(+)； |
| PoE Power Budget | 90W |
| Standards Conformance | |
| Standards Compliance |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3at Power over Ethernet Plus Plus |
| Stability Testing |
IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Temperature |
Operating: -20~55 degrees C Storage: -40~75 degrees C |
| Humidity |
Operating: 5~90%, (non-condensing) Storage: 5~90% (non-condensing) |
| Regulatory Compliance | FCC Class A, CE Class A |
