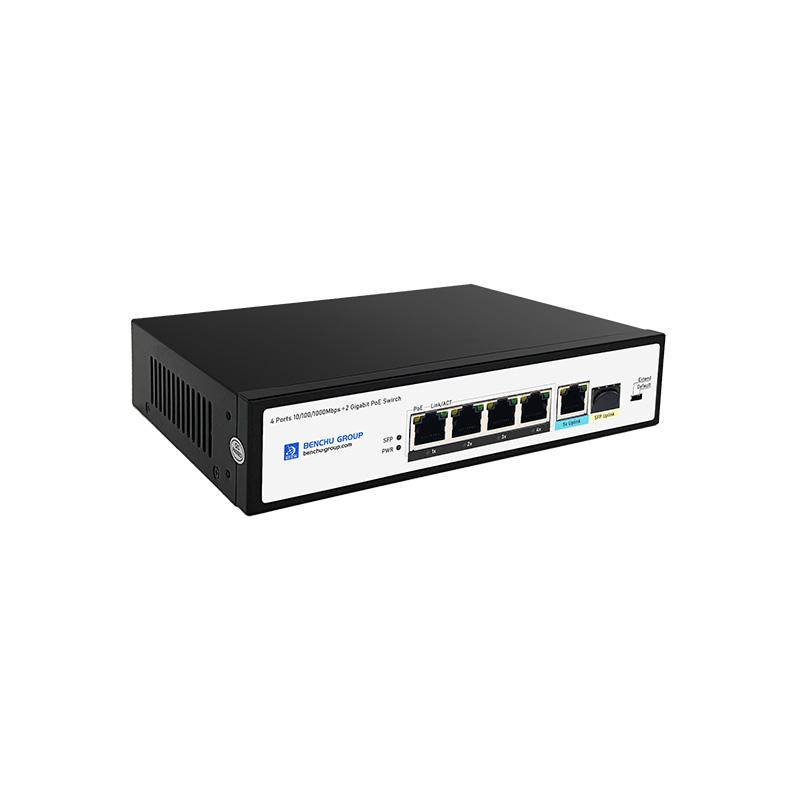

4 Ports Gigabit Unmanaged PoE+ Switch, with 1-1Gb RJ45, with 1-1Gb SFP, 4 PoE+ Ports@65W Power Budget, Suppout PoE Extend 250m,Fanless, SP5200-4PGE1GE1GF

gigabit switches 4 port poe
4 port gigabit poe switch price
4 port gigabit poe switch
PoE ethernet switch 4 port

4 Ports Gigabit Unmanaged PoE+ Switch, with 1-1Gb RJ45, with 1-1Gb SFP, 4 PoE+ Ports@65W Power Budget, Suppout PoE Extend 250m,Fanless, SP5200-4PGE1GE1GF

Inquire Now

Designed for IP Camera/Wireless Access Point/VOIP Telephone

Product Highlights
    • 4 ports supporting PoE+ to PD device(Port 1-port 4)
    • Complies with IEEE 802.3af/at Power over Ethernet
    • Supports PoE power up to 30 watts for each PoE port
    • 58-watt PoE budget,65-watt total power budget
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • Backplane bandwidth 24Gbps，Packet forwarding rate 16.37Mpps，MAC address 8k
    • 10-inch Rack-Mount size, 1U height，Internal AC power supply



4 port gigabit poe switch authentication

Overview



SP5200-4PGE1GE1GF, 4 Ports Gigabit Unmanaged PoE+ Switch, with 1-1Gb RJ45, with 1-1Gb SFP, 4 PoE+ Ports@65W power budget, Suppout PoE Extend 250m, Fanless

The SP5200-4PGE1G1GF Benchu group’s 4 Port Gigabit Unmanaged PoE+ Switches offers a high speed, High performance and low cost gigabit network solution. The Gigabit PoE Swtiches provides sisteen 30-watt 802.3at PoE+ ports ,2 gigabit RJ45 and 1 gigabit SFP uplink.

The SP5220-4PGE1GE1GF  optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring.



Physical Port

  • 4-10/100/1000Mbps Gigabit Ethernet RJ45 copper with PoE+
  • 1-10/100/1000Mbps Gigabit Ethernet RJ45 copper
  • 1-1.25Gbps mini-GBIC SFP interface



Power over Ethernet

  • 4 ports supporting PoE+ to PD device (Port 1 to port 4)
  • Complies with IEEE 802.3af/at Power over Ethernet
  • Supports PoE Power up to 30 watts for each PoE port
  • 58-watt PoE budget, 65-watt total power budget
  • Auto detects powered device (PD)
  • Supports 25-watt PoE transmit distance of 250m in extend mode
  • Remote power feeding up to 100m in standard mode
  • Circuit protection prevents power interference between ports

Switching

  • Solid performance with non-blocking architecture ,
  • 24Gbps Backplane bandwidth, 16.37Mpps Switch Throughput，9216 bytes Jumbo Frame
  • supporting 8K MAC addresses
  • Automatic address learning and address aging
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)



Hardware

  • High-strength metal casing.
  • Desktop，wall-mount
  • LED indicators for Power,PoE Working and LINK/ACT
  • Fanless design, Silent Operation
  • Internal AC power supply





Features

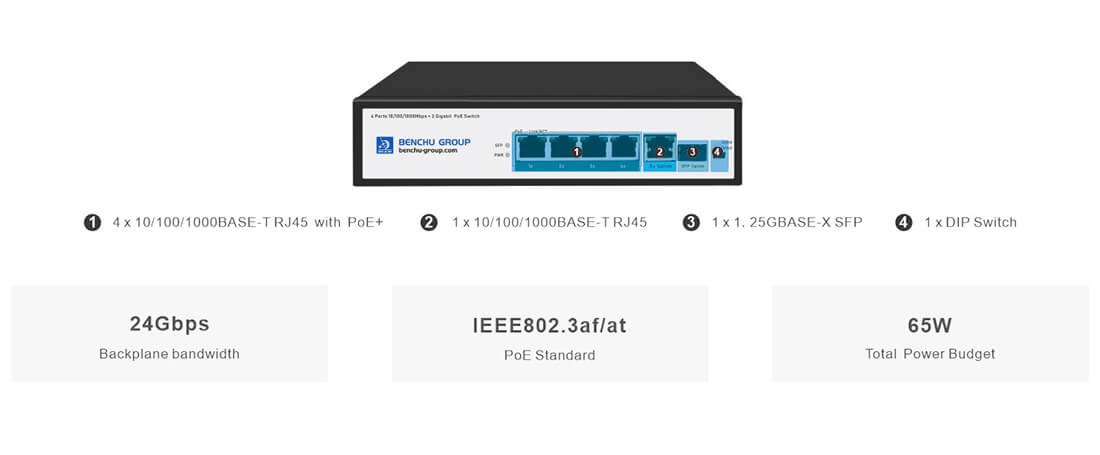

Gigabit port and fiber Port Configuration

4 × PoE+ 10/100/1000Mbps RJ45 ports provide up to 30W per port and Power budget of 65W, together with 1 x 10/100/1000M RJ45 and 1 x 1.25G SFP uplink

4 Ports Gigabit PoE Switch with 1Gb RJ45 and 1SFP

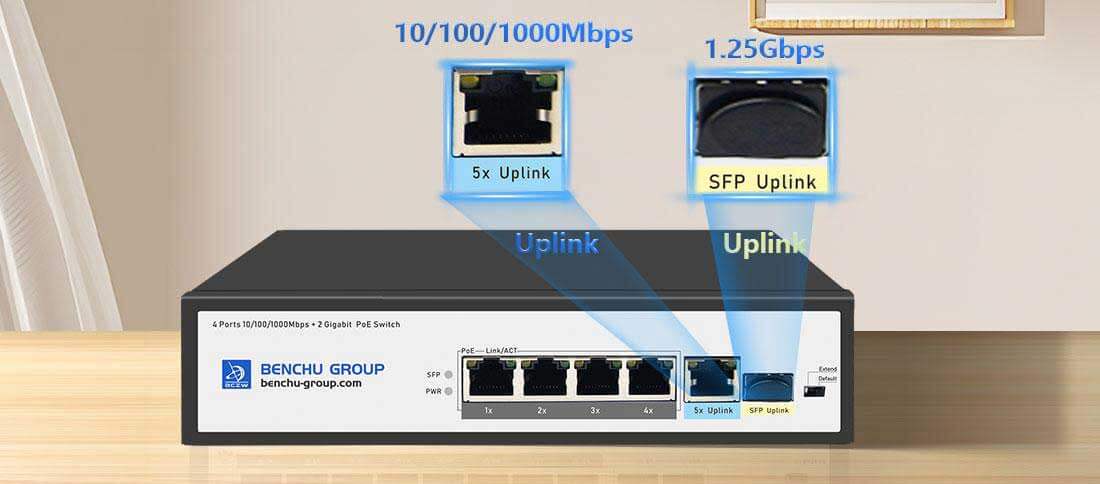

One Gigabit RJ45 and one SFP Dedicated Ports

The SP5200-4PGE1GE1GF with 1 RJ45 and 1SFP uplink ports with Gigabit transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the four PoE+ ports can be used to their full potential.Fiber-Optic Link Capability Enables Extension of Network Deployment，The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber). It is well suited for applications to uplink to backbone switch and monitoring center in long distance.



4 Ports Gigabit poe switch with 1giagbit RJ45 and 1SFP

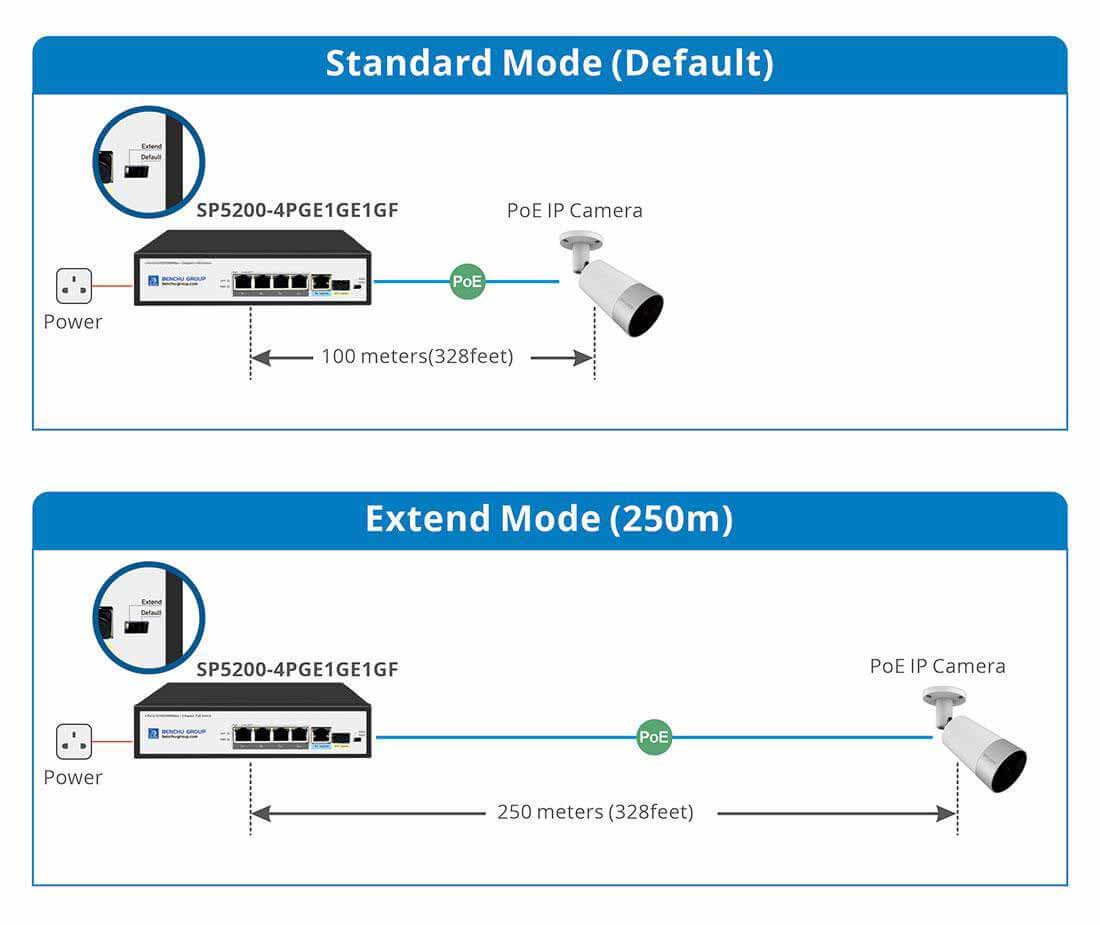

Extended Reach to 250m for PoE Devices

Extends the standard Ethernet cable limit of 100 meters to 250 meters, enabling the connection of remote devices such as IP cameras, access points, and sensors without requiring additional switches or repeaters. This 250 meters PoE swtich simplifies network design and reduces installation costs by eliminating the need for extra equipment. Ideal for large-scale installations like campuses, industrial complexes, and outdoor surveillance systems, a 250-meter PoE switch ensures consistent power and data delivery over greater distances, enhancing network flexibility and scalability while maintaining reliable performance across expansive areas.

250meter 4 port gigabit poe switch

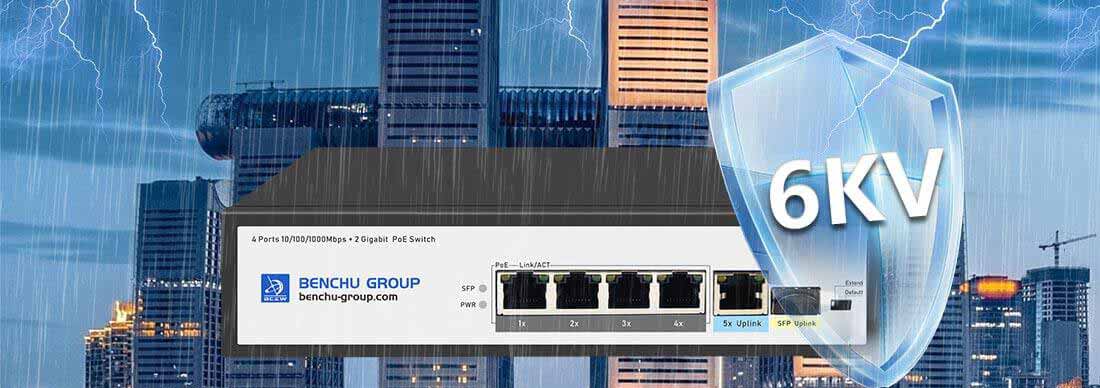

6KV Lightning Protection Enhance PoE Switch Longevity

6KV lightning protection significantly extends the lifespan of PoE switches by safeguarding them against high-voltage surges caused by lightning strikes. This protection reduces the risk of electrical damage to the internal components of the poe switch, ensuring stable performance over time. By preventing damage from power surges, the switches maintain their operational integrity, resulting in fewer replacements and repairs. This enhancement not only improves the durability of the switches but also ensures consistent network reliability, which is crucial for maintaining uninterrupted connectivity in various environments, particularly in outdoor installations.



4 ports gigabit poe switch unmanaged 6KV Lightning protection







Increased Network Uptime(Wide temperature design -20~50℃)
Wide temperature range PoE switches are built to withstand harsh conditions, leading to higher network uptime. Their resilience to temperature extremes reduces the likelihood of temperature-induced failures, ensuring continuous operation. This increased uptime is critical for mission-critical applications where network downtime can result in significant disruptions and financial losses. Industries such as telecommunications, transportation, and emergency services benefit from the enhanced reliability, as it ensures that their networks remain operational, providing uninterrupted services and maintaining the integrity of essential operations.

4 port gigabit poe switch wide temperature design

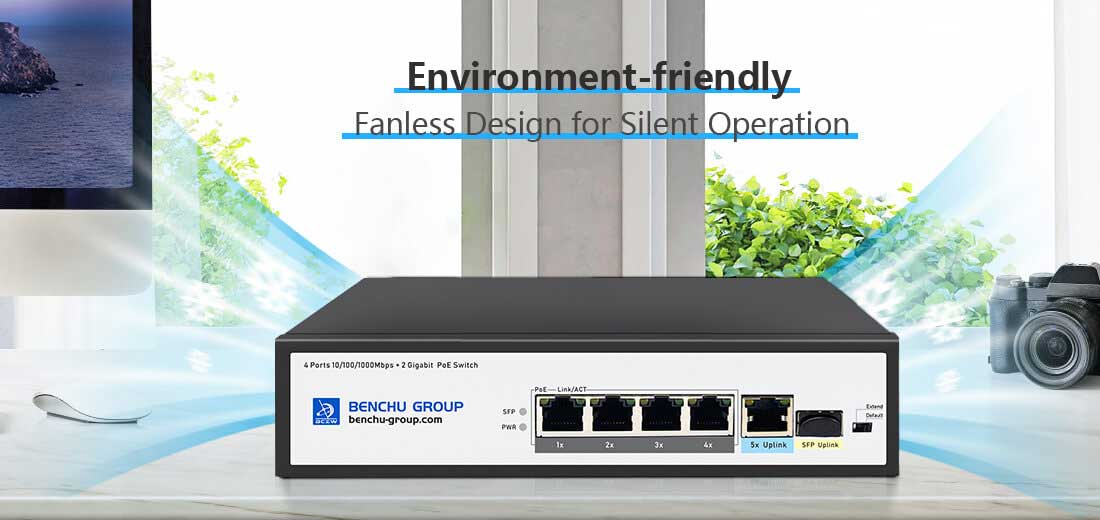

Energy Efficiency and Improved Reliability

Fanless PoE switches consume less power . Without the need to power cooling fans,the PoE switches use less electricity, leading to energy savings and lower utility bills. This energy efficiency not only reduces operational costs but also supports environmentally friendly practices by minimizing the network's carbon footprint.The absence of fans reduces the risk of mechanical failure and dust accumulation, leading to a longer lifespan and more reliable performance. This reduction in maintenance needs results in lower operational costs and less downtime, ensuring a more efficient network.



fanless gigabit 4 port poe switch

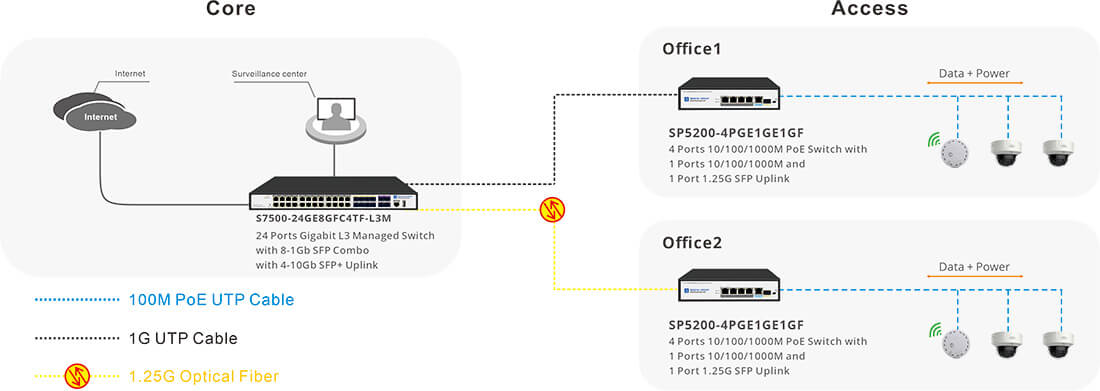

Connectivity Solutions



Gigabit 4 port PoE switch Connectivity Solution



4 port gigabit poe switch unamanged





Specification



  • Technical Specifications :

    SP5200-4PGE1GE1GF

  • 10M/100M/1G RJ45 copper ports :

    5

  • 1.25G SFP (fiber) ports :

    1

  • PoE / PoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Budget :

    58 Watts

  • Number of PDs, 7 watts :

    4

  • Number of PDs, 15 watts :

    4

  • Number of PDs, 30 watts :

    2

  • Performance Specification :

    *

  • Chip :

    Realtek

  • Packet buffer memory :

    1.7 Mb (Dynamically shared across only used ports)

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    24 Gbps

  • Packet forwarding rate :

    8.93Mpps (64 byte packet size)

  • MAC address database size :

    4K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    Up to 9K packet size

  • Mean Time Between Failures :

    126,320 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.312µs; 8.413µs; 8.454µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.515µs; 3.546µs; 3.627µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency :

    2.986µs; 3.103µs; 3.181µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    202 x 140 x 44.5mm (7.95 x 5.51 x 1.75 in)

  • Weight :

    0.95 kg (2.09 lb)

  • Power Consumption :

    65W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    7W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    5W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale) ； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

Questions & Answers



Q: How does the gigabit optical port benefit the switch?

A: The gigabit optical port enables long-distance, high-speed fiber optic connections, ideal for extending the network reach and integrating with existing fiber network infrastructure.



Q: Can the gigabit Ethernet and optical ports be used simultaneously?

A: Yes, both the gigabit Ethernet and optical ports can be used simultaneously, providing flexible and redundant uplink options to ensure continuous network connectivity.



Q: What is the maximum power output per PoE port?

A: Each PoE port typically delivers up to 30W of power, compliant with IEEE 802.3at (PoE+), supporting the power needs of various PoE-enabled devices.
