24 Ports Gigabit UPoE+ Switch, with 4-1Gb RJ45 and 4-1Gb SFP Combo, 4 PoE++ Ports and 20 PoE+ Ports, 500W Power Budget, Rack-Mount, SP5220-24PGE4GC-4BT

POE++ switch 24 port
24 Port POE++ switches
UPOE+ switch 24 port
90W POE switch 24 port

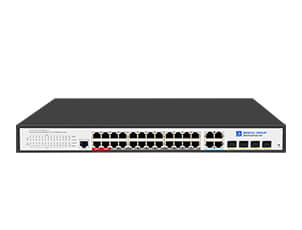

24 Ports Gigabit UPoE+ Switch, with 4-1Gb RJ45 and 4-1Gb SFP Combo, 4 PoE++ Ports and 20 PoE+ Ports, 500W Power Budget, Rack-Mount, SP5220-24PGE4GC-4BT

Inquire Now

Designed for IP Camera/Wireless Access Point/VOIP Telephone

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++(Port 1-4)
    • 20-10/100/1000Mbps RJ45 ports with PoE+(Port 5-24)
    • 4-10/100/1000Mbps RJ45 ports and 4-1.25Gbps mini-GBIC SFP interface combo
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for PoE port 1 to 4，
    • Supports PoE power up to 30 watts for each PoE port 5 to 24，
    • 470-watt PoE budget, total power budget 500W
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
    • Backplane bandwidth 64Gbps，Packet forwarding rate 47.62Mpps，MAC address 16k
    • 19-inch Rack-Mount size, 1U height，Internal AC power supply

24 port POE++ switch

Overview



SP5220-24PGE4GC-4BT,  24 Ports Gigabit UPoE+ Switch, with 4-1Gb RJ45 and 4-1Gb SFP Combo,4-PoE++ Ports and 20-PoE+ Ports, 500W Power Budget, Rack-Mount

BENCHU GROUP's 24 Port gigabit UPOE+ switch SP5220-24PGE4GC-4BT designed to deliver exceptional performance and flexibility. The SP5220-24PGE4GC-4BT features 24 Gigabit PoE ports and 4 Gigabit RJ45/SFP combo ports, including 4 PoE++ ports up to 90W and 20 PoE+ up to 30W ports, providing a comprehensive solution for demanding networking environments.



With 24 gigabit ethernet ports, this switch guarantees high-speed data transmission, minimizing latency and ensuring efficient data flow. The ample bandwidth supports data-intensive applications, enhancing overall network performance and reliability.The inclusion of 4 Gigabit RJ45/SFP combo ports offers versatile connectivity options, allowing seamless integration with both copper and fiber optic networks. This flexibility ensures optimal performance and adaptability to various network configurations, catering to diverse deployment scenarios.



The SP5220-24PGE4GC-4BT supports 4 PoE++ ports, adhering to the IEEE 802.3bt standard, delivering up to 90 watts per port. This powerful feature is ideal for high-demand devices such as PTZ cameras, high-performance wireless access points, and other PoE-enabled equipment. The robust power output ensures reliable operation without the need for additional power sources, simplifying installation and reducing clutter.



BENCHU GROUP's 24 Port gigabit UPOE+ switch is a versatile, powerful, and reliable solution for modern network infrastructures. Its advanced power capabilities, flexible connectivity options, and user-friendly management make it an indispensable asset for any high-performance network environment.

  • Physical Port
    •  4-10/100/1000Mbps Gigabit Ethernet ports with PoE++ (Ports 1-4)
    •  20-10/100/1000Mbps Gigabit Ethernet ports with PoE+ (Ports 5-24)
    •  4-10/100/1000Mbps Gigabit Ethernet port and 4-1.25Gbps mini-GBIC SFP interface combo

    Power over Ethernet
    •  Complies with IEEE 802.3af/at/bt Power over Ethernet
    •  Supports PoE Power up to 90 watts for PoE port (Port 1-4 )
    •  Supports PoE Power up to 30 watts for PoE port (Port 5-24 )
    •  All power up to 500W，470W for PoE budget.
    •  Auto detects powered device (PD)
    •  Circuit protection prevents power interference between ports
    •  Remote power feeding up to 100m in standard mode
  • Switching
    •  Solid performance with non-blocking architecture
    •  64Gbps Backplane bandwidth, 47.62Mpps Switch Throughput，9216 bytes Jumbo Frame
    •  supporting 16K MAC addresses
    •  Automatic address learning and address aging
    •  Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
    •  Flow control for full duplex operation and back pressure for half duplex operation
    •  Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    •  High-strength metal casing
    •  19-inch Rack-Mount, 1U height





Features



Gigabit RJ45 and Gigabit SFP Port Configuration

The SP5220-24PGE4GC-4BT support 4 PoE++ 10/100/1000Mbps RJ45 ports provide up to 90W per port，20 PoE+ 10/100/1000Mbps RJ45 ports provide up to 30W per port , Power budget of 500W, together with 4-10/100/1000Mbps RJ45 and 4-1.25G SFP combo uplink





Support 802.3 bt Up to 90W Per Port

The SP5220-24PGE4GC-4BT's port 1 to 4 support 802.3bt PoE++ can deliver up to 90W per port. this significantly improves the power delivery capabilities over Ethernet cables. The higher power output supports a broader range of devices such as PTZ cameras, high-performance wireless access points, LED lighting, digital signage, and even laptops or thin clients. Support 802.3bt ensures that networks can accommodate new devices without requiring significant upgrades or overhauls. This future-proofing capability is particularly beneficial in environments where technology refresh cycles are frequent, such as in smart buildings, industrial automation, and large-scale enterprise networks. It ensures that the network can adapt to new requirements without substantial additional investments.





Four Gigabit RJ45 and Four Gigabit SFP Uplink Ports

The SP5220-24PGE4GC-4BT with 4 gigabit RJ45/SFP combo uplink ports offers remarkable versatility and flexibility for network configurations. The Gigabit RJ45 ports provide high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network, while the SFP (Small Form-factor Pluggable) slots support fiber optic connections, enabling high-speed data transfer over extended distances. This dual capability allows the switch to seamlessly integrate both copper and fiber connections within the same network infrastructure, accommodating diverse networking needs. The ability to switch between RJ45 and SFP ports based on specific requirements simplifies network planning and enhances scalability, facilitating easy network expansion or reconfiguration.





Wide temperature design are built to withstand harsh conditions

The SP5220-24PGE4GC-4BT UPoE+ switch with a wide temperature range of -20°C to 50°C ensure reliable operation in extreme weather conditions. This capability makes SP5220-24PGE4GC-4BT ideal for environments where temperatures can fluctuate significantly. Their robust design minimizes the risk of failure due to temperature-related stress, ensuring continuous power and data transmission. This reliability is crucial for maintaining network connectivity in critical applications, such as surveillance systems, remote sensors, and outdoor wireless access points, providing peace of mind that the network will remain operational regardless of environmental conditions.





6KV Lightning Protection Increased Network Reliability

6KV lightning protection  reduces the risk of electrical damage to the internal components of the UPoE+ switch SP5220-24PGE4GC-4BT, ensuring stable performance over time. By preventing damage from power surges, the switches maintain their operational integrity, resulting in fewer replacements and repairs. Extends the lifespan of PoE switches by safeguarding them against high-voltage surges caused by lightning strikes. the lightning protection not only safeguards the PoE switches themselves but also protects all connected devices from surge-induced damage.This enhancement not only improves the durability of the switches but also ensures consistent network reliability, which is crucial for maintaining uninterrupted connectivity in various environments, particularly in outdoor installations.





Connectivity Solutions



  • 24 Port Gigabit UPoE+ Switch with 4 Gigabit RJ45/SFP Combo Uplink of Connectivity Solution



24 port gigabit poe switch unmanged





Specificatiions



  • Technical Specifications :

    SP5220-24PGE4GC-4BT

  • 10M/100M/1G RJ45 copper ports :

    24

  • Gigabit R4J5 and SFP Combo :

    4

  • PoE / PoE+ ports :

    20

  • PoE / PoE+ / PoE++ / UPoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3bt Power over Ethernet Plus Plus/PSE;Backward compatible with IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2/4/5 (+), 3/6/7/8 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at); Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • PoE Power Budget :

    470 Watts (all PoE ports use, max PoE out)

  • Performance Specification :

    *

  • Packet buffer memory :

    4.1 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    64 Gbps

  • Packet forwarding rate :

    47.62Mpps (64 byte packet size)

  • MAC address database size :

    16K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    Up to 9K packet size

  • Mean Time Between Failures :

    137,411 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.311µs; 8.413µs; 8.452µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.416µs; 3.546µs; 3.623µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency :

    2.980µs; 3.112µs; 3.189µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3at PoE++ • IEEE 802.3az (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    440 x 290 x 44.5 mm (17.32 x 11.42 x 1.75 in)

  • Weight :

    4.2 kg (9.26 lb)

  • Power Consumption :

    500W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    22W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    17W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    2 Fans

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 131°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged
