4 Ports 10/100M Unmanaged PoE+ Switch, with 2-100M RJ45 Uplink, 4 PoE+ Ports, 65W Power budget, PoE Extend 250m,Desktop,Fanless，SP5200-4PFE2FE

poe switch 4 port
switch 4 port poe
4 port switch poe
10/100M poe switch 4 Port

4 Ports 10/100M Unmanaged PoE+ Switch, with 2-100M RJ45 Uplink, 4 PoE+ Ports, 65W Power budget, PoE Extend 250m,Desktop,Fanless，SP5200-4PFE2FE

Inquire Now

Designed for IP Camera/Wireless Access Point/ IP Telephone

Product Highlights
    • Complies with IEEE 802.3af/at Power over Ethernet
    • Up to 30 watts for each PoE port and 58-watt PoE budget
    • Supports " default" and "Extend" mode selection;
    • The "Extend" mode features 25-watt PoE transmit distance of 250m.
    • Auto detects powered device (PD), Non PoE terminals(PC) ,No POE output
    • 4 KV surge protection for PoE ports
    • Backplane bandwidth 1.2Gbps;Packet forwarding rate 0.9Mpps;MAC address 2k
    • Desktop palm size,Internal AC power supply

4 port 10/100M PoE switch authentication

Overview

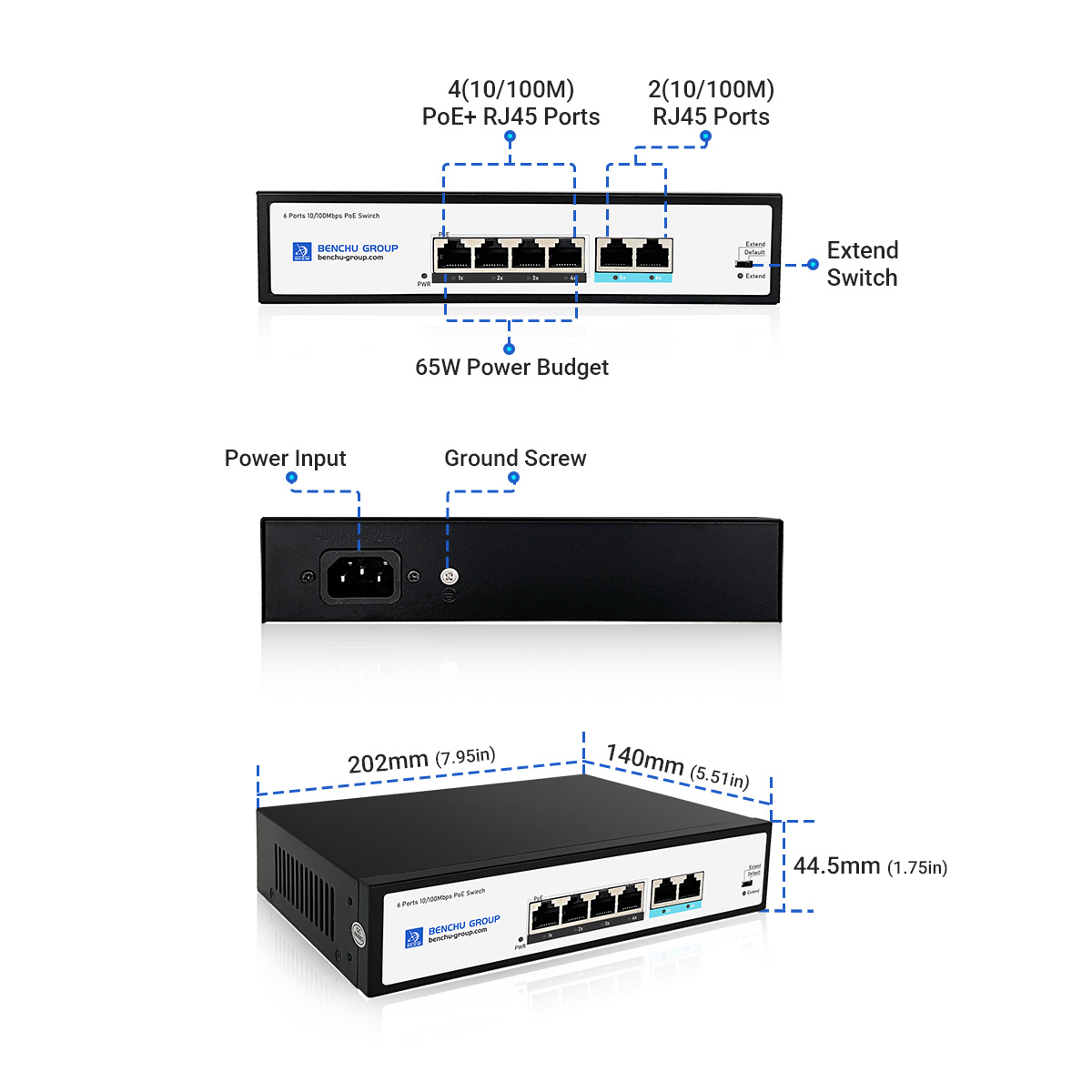

SP5200-4PFE2FE, 4 Ports 100M Unmanaged PoE+ Switch, with 2 x 100M RJ45 Uplink, 4 x PoE+ Ports@65W Power budget, PoE Extend 250m,Desktop,Fanless

Benchu group’s SP5200-4PFE2FE 4 ports 100M PoE+ Switch provides four 30-watt 802.3at PoE+ ports and two 100M RJ45 uplink ports.It offers a simple, cost-effective and non-blocking wire-speed performance. The SP5200-4PFE2FE comes compact metal housing, suitable for desktop deployment in Network Security application for catering to small-scale IP surveillance networks at a lower total cost. Fanless design, The SP5200-4PFE2FE is can placed to anywhere in the room without noise. The SP5200-4PFE2FE is idea for small, medium, and enterprise businesses IP surveillance deployments.



J45 Interface

  • 6*10/100Mbps Fast Ethernet ports



Power over Ethernet

  • Supporting 4 Ports PoE power to PD device(Port 1-Port 4)
  • Complies with IEEE 802.3af/at Power over Ethernet end-span
  • Supports PoE power up to 30 watts for each PoE port
  • 58-watt PoE budget / 65W-watt total power budget
  • Hardware DIP switch for "Default " and "Extend" mode selection;
  • the "Extend" mode features 25-watt PoE transmit distance of 250m and VLAN isolation
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in the standard mode

Switching

  • Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 2K absolute MAC addresses
  • Automatic address learning and address aging



Desktop palm size

  • LED indicators for PoE ready/activity and LINK/ACT
  • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
  • Internal AC power supply



Features



Fast Port Configuration

4 × PoE+ 10/100Mbps RJ45 ports provide up to 30W per port and total Power budget of 65W, together with 2 × 10/100M RJ45 for uplink connections.

4 Port 10/100M poe

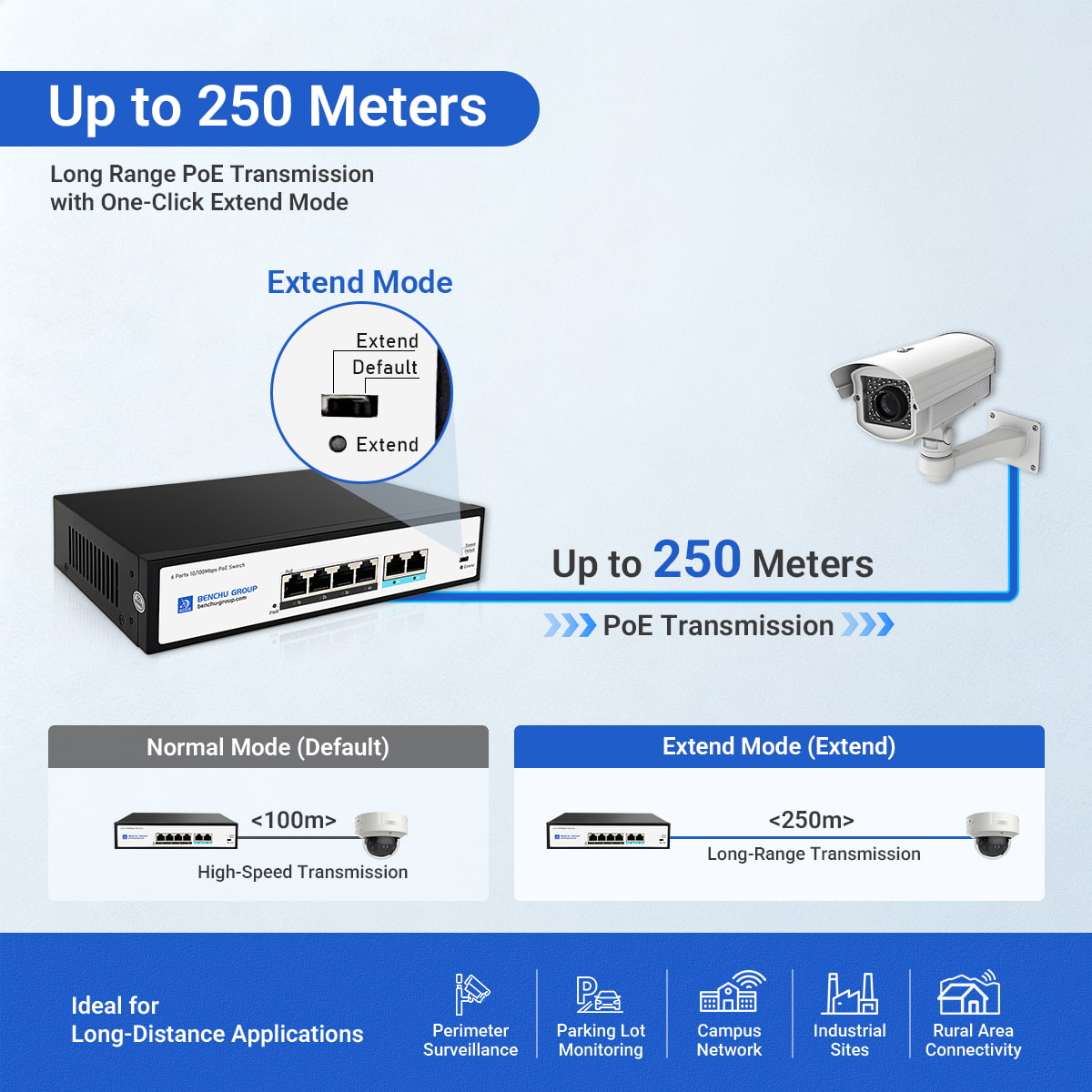

Distance Extended for Transmission of Power and Data to 250m

Benchu group’s 4 port 10/100M Unmanaged PoE+ Switches provides "default" and "Extend" operation modes.

"default" operation mode,The SP5200-4PFE2FE operates as a normal IEEE 802.3at/af PoE Switch

"Extend" operation mode,The SP5200-4PFE2FE operates on a per-port basis in 10Mbps but can support 30-watt PoE power output over a distance of up to 250 meters..

4 Ports 10/100M poe switch Extend to 250m





Innovative Port-based VLAN Protection

The SP5200-4PFE2FE 4 Port 10/100M Unmanaged PoE switch features "Port-based VLAN Protection" where ports can be isolated from each other via one DIP switch. This can help to prevent the Network Terminal Devices’s multicast or broadcast storm from influencing each other.

4 Port unamanaged PoE Switch VLAN protection





4KV Surge Protection

Benchu group’s 4 port 10/100M Unmanaged PoE+ Switches provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



unamanaged PoE Switch 4 Port 4KV protection







Environment-friendly, Fanless Design for Silent Operation

The SP5200-4PFE2FE Unmanged 4 Port 10/100M PoE Switch comes with a desktop-sized, compact metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless.



4 port 10/100M poe switch fanless



Connectivity Solutions



Small shops and Home-use Fast Ethernet PoE Network Deployment



4 port poe switches home use

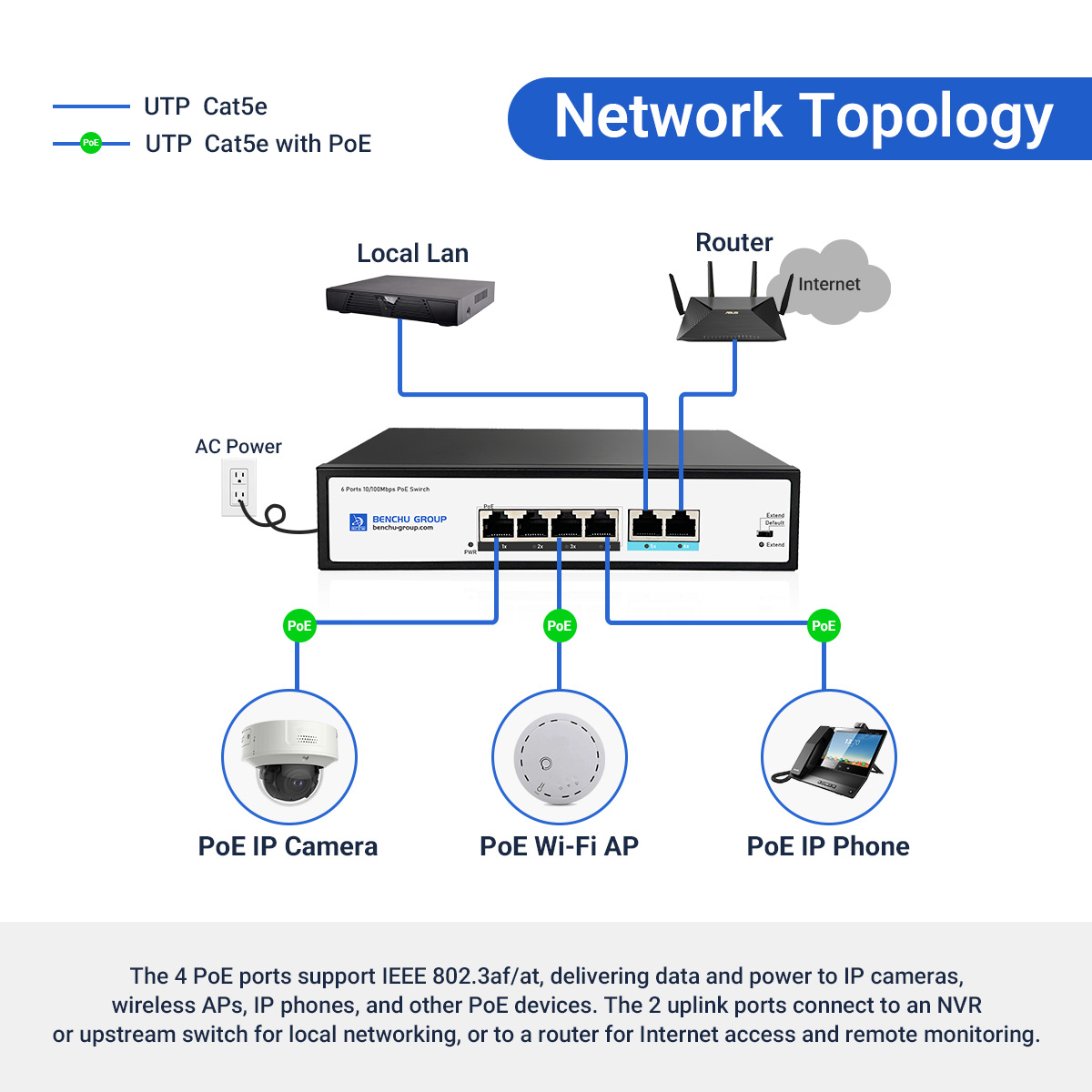

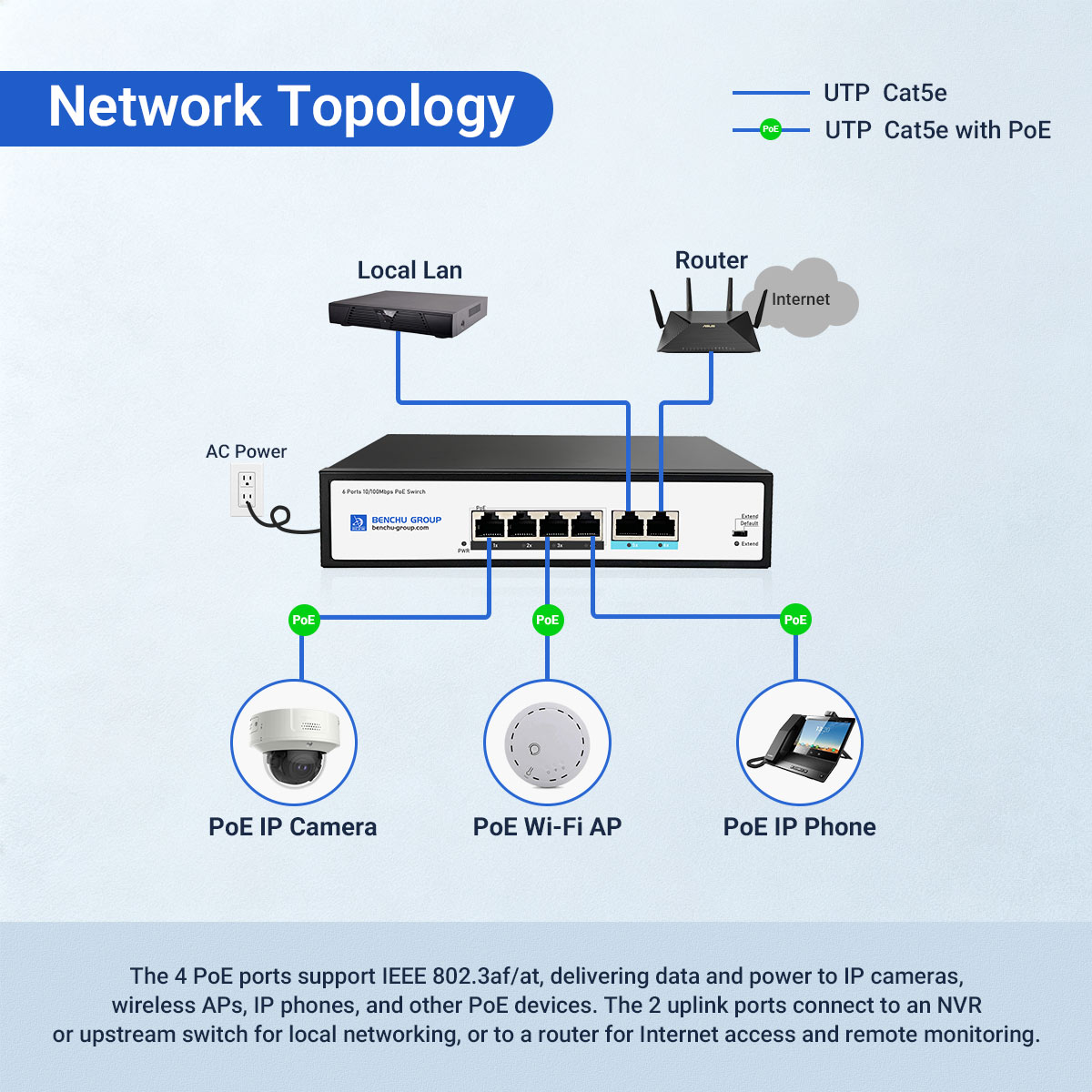

Perfectly-integrated Solution for PoE IP Camera and NVR System



4 port poe switch for ip camera





Specifications

  • Technical Specifications :

    SP5200-4PFE2FE

  • 10M/100M RJ45 copper ports :

    6

  • PoE / PoE+ ports :

    4

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Budget :

    58 Watts

  • Number of PDs, 7 watts :

    4

  • Number of PDs, 15 watts :

    4

  • Number of PDs, 30 watts :

    2

  • Performance Specification :

    *

  • Chip :

    Realtek

  • Packet buffer memory :

    0.6 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    1.2 Gbps

  • Packet forwarding rate :

    0.9Mpps

  • MAC address database size :

    2K

  • Jumbo frame support :

    Store and Forward(Full Wire Speed)

  • Mean Time Between Failures :

    106,113 hours

  • 100M Copper Latency :

    8.321µs; 8.622µs; 8.435µs

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3i 100BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    Yes

  • LEDs :

    *

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

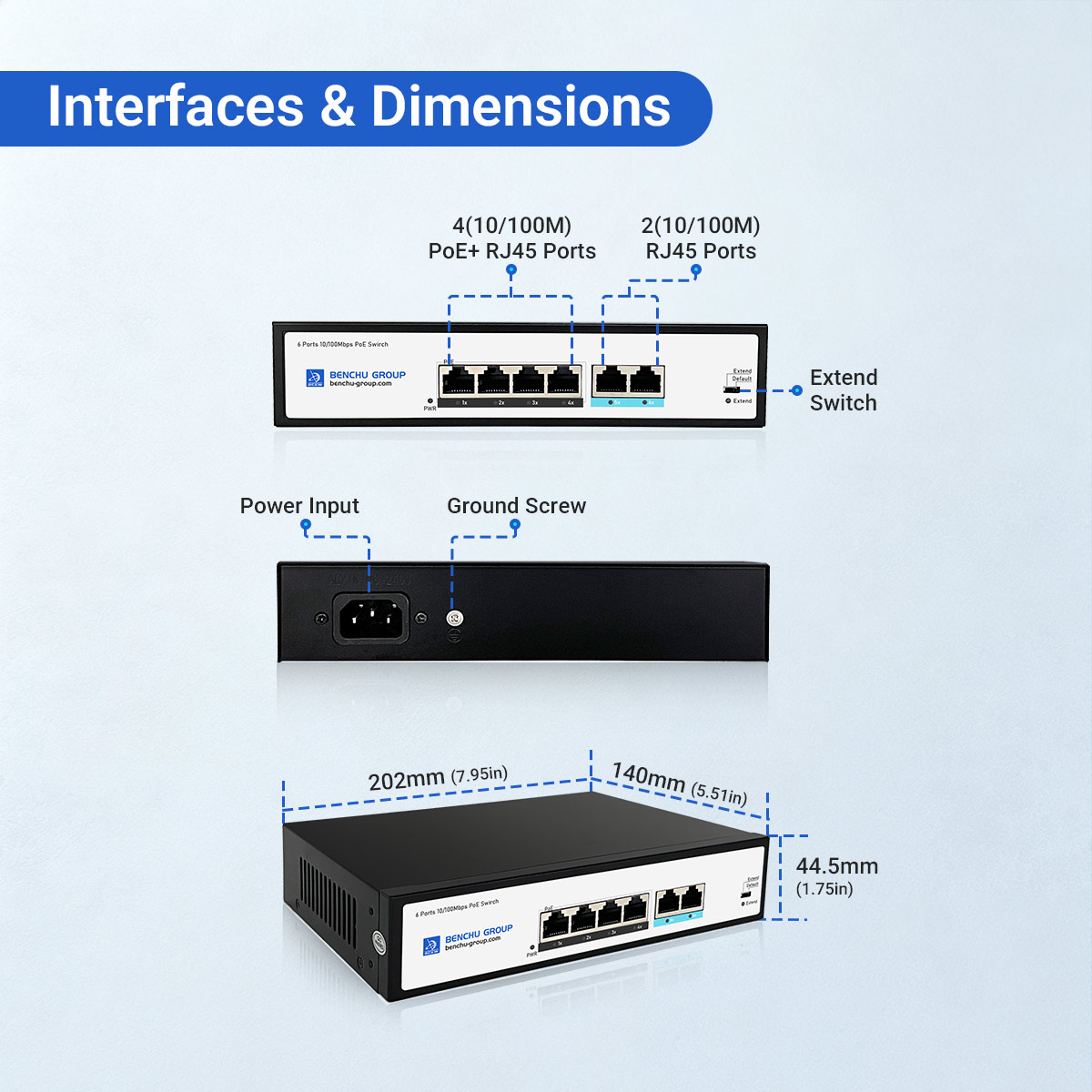

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    202 x 140 x 44.5mm (7.95 x 5.51 x 1.75 in)

  • Weight :

    0.95 kg (2.09 lb)

  • Power Consumption :

    65W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    6W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    4W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)；

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

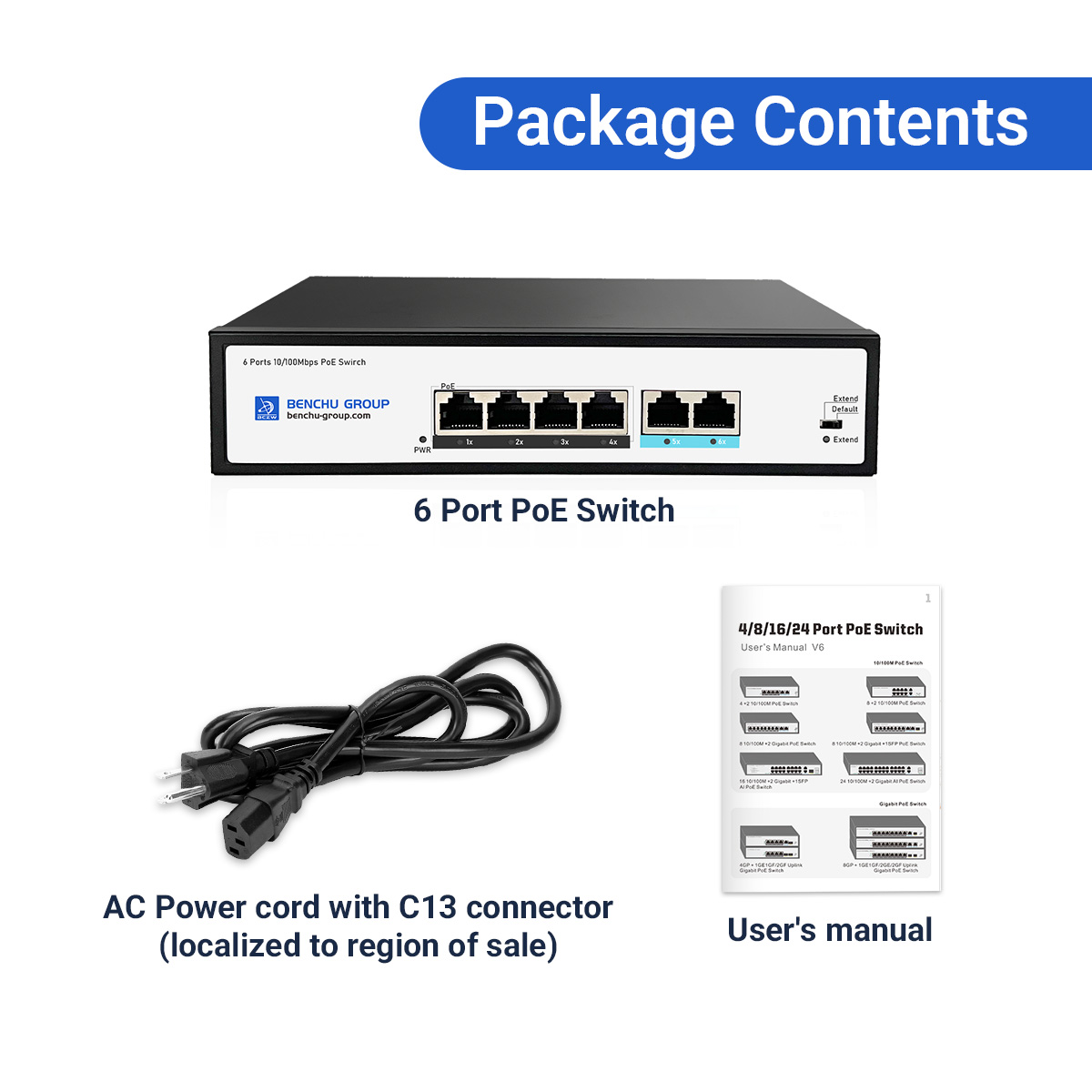

  • Package Contents :

    *

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    100M

  • More Filters :

    Unmanaged

Videos

Questions & Answers

Q: What is the maximum power output per port on the 4-port 10/100M PoE switch?
A: Each port provides up to 30W of power, compliant with IEEE 802.3at (PoE+),Backward compatible with IEEE 802.3af(PoE), suitable for devices like IP cameras and wireless access points.

Q: Can the 4-port 10/100M PoE switch extend Power and data connections beyond 100 meters?
A: Yes, some models support extended modes up to 250 meters, allowing for longer cable runs without additional equipment.

Q: Is the 4-port 10/100M PoE switch suitable for home use?
A: Yes, it is ideal for small networks, such as home security systems or connecting multiple smart devices requiring power and data.

Q: What type of devices can be connected to the 4-port 10/100M PoE switch?
A: Devices such as IP cameras, VoIP phones, wireless access points, and IoT sensors can be powered and connected through a 4-port 10/100M PoE switch.

Q: Does the 4-port 10/100M PoE switch require special installation?
A: No, installation is straightforward. Simply connect the switch to your network and plug in PoE-compatible devices. No additional configuration is usually needed.
