8 Ports 10/100M Unmanaged PoE+ Switch, with 2-100M RJ45 Uplink, 8 PoE+ Ports@120W Power Budget, 250m PoE+, Desktop, Fanless, SP5200-8PFE2FE

Inquire Now

Designed for IP Camera/Wireless Access Point/ IP Telephone

Product Highlights
    • Complies with IEEE 802.3af/at Power over Ethernet
    • PoE+ support with up to 30W per port
    • 112-watt PoE budget,120-watt power budget
    • The "Extend" mode features 25-watt PoE transmit distance of 250m.
    • Auto detects powered device (PD)
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • Backplane bandwidth 2Gbps，Packet forwarding rate 1.49Mpps，MAC address 2k
    • Desktop palm size，Internal AC power supply

Unmanaged 10/100M PoE Switch 8 port authentication

Overview



SP5200-8PFE2FE, 8 Ports 100M Unmanaged PoE+ Switch，with 2 x 100M RJ45 Uplink，8 x PoE+ Ports@120W power budget，250m PoE+,Desktop,Fanless

Benchu group SP5200-8PFE2FE provides eight 30-watt 802.3at PoE+ ports and dual 10/100BASE-TX uplink ports.It offers a simple, cost-effective and non-blocking wire-speed performance. The SP5200-8PFE2FE comes compact metal housing, suitable for desktop deployment in Network Security application for catering to small-scale IP surveillance networks at a lower total cost.



Physical Port

  • 10*10/100Mbps RJ45 Fast Ethernet ports



Power over Ethernet

  • Supporting 8 Ports PoE power to PD device
  • Complies with IEEE 802.3af/at Power over Ethernet end-span
  • Supports PoE power up to 30 watts for each PoE port
  • 112-watt PoE budget / 120W-watt total power budget
  • Support 25-watt PoE power output over a distance of up to 250 meters
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in the standard mode

Switching

  • Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 2K absolute MAC addresses
  • Automatic address learning and address aging



Hardware

  • Desktop palm size
  • LED indicators for PoE ready/activity and LINK/ACT
  • Supports contact discharge of ±4KV DC and air discharge of ±6KV
  • DC ±6KV for Ethernet ESD protection
  • Innovative energy saving features are good for your budget, as well as the environment
  • Internal AC power supply
  • Fanless design





Features



Fast Port Configuration

8 × PoE+ 10/100Mbps RJ45 ports provide up to 30W per port and total Power budget of 120W, together with 2 × 10/100M RJ45 for uplink connections.





8 port 10/100M poe switch

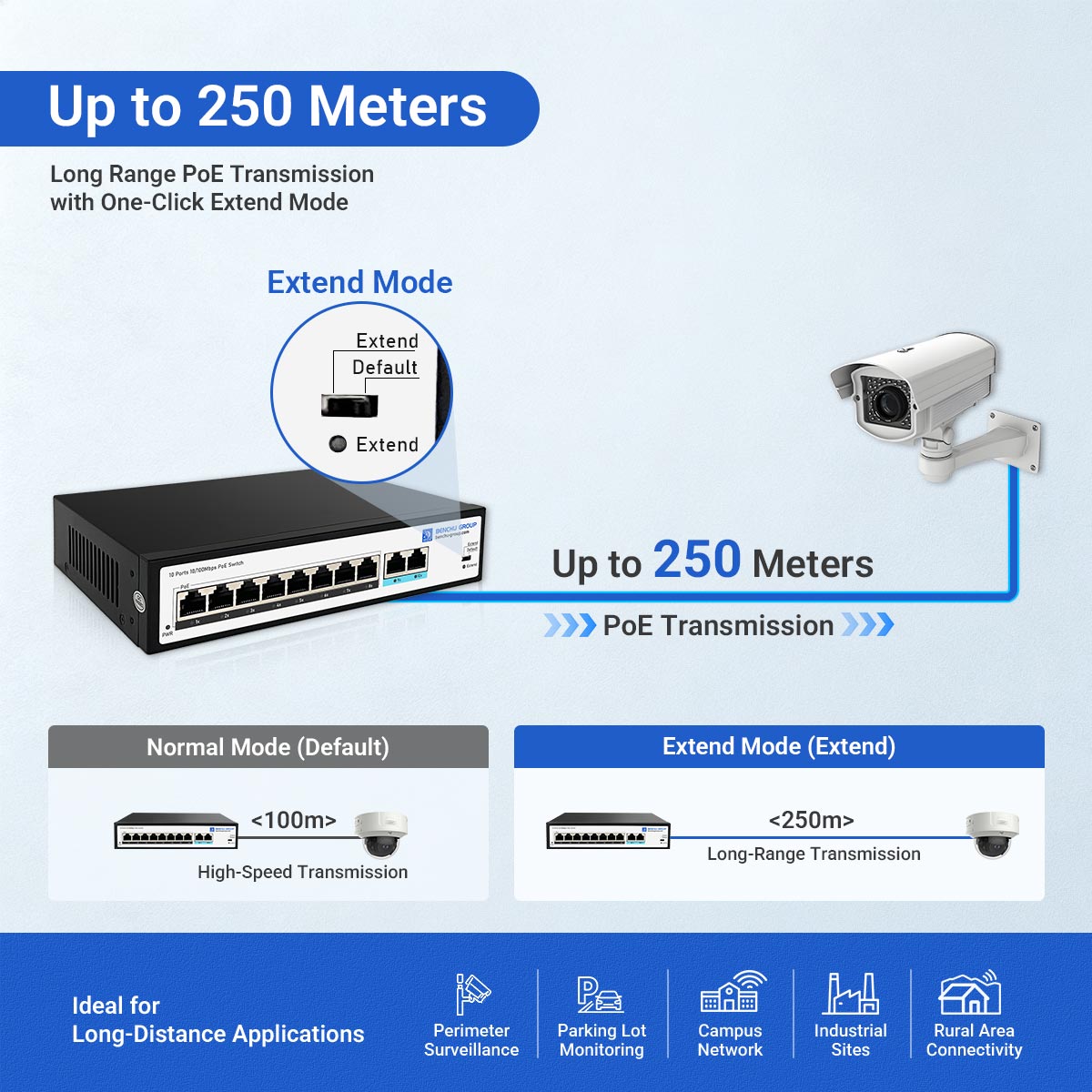

Long Distance PoE for Cost Efficiency and Simplified Infrastructure

By extending PoE transmission to 250 meters, The SP5200-8PFE2FE PoE switch reduces the need for additional power sources and networking equipment, lowering overall infrastructure costs. Fewer switches and power injectors translate to less cabling and reduced installation labor, streamlining the deployment process. This cost efficiency benefits large installations, such as warehouses, stadiums, and multi-building complexes, where traditional 100  meters PoE limits would necessitate complex and expensive setups. Simplifying the network infrastructure with a 250-meter PoE switch not only cuts costs but also minimizes maintenance, providing a more economical and manageable solution.



8 port poe switch 250m





4KV Surge Protection

Based on the IEC61643-21:2000 standard,Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.



unamanged 8 port poe switch 4kv protection







Fanless Design, Ultra Quiet for Your Ultra Convenience

Low-power noise-free design, supporting secure desktop connection, suitable for deployments in working areas or home scenarios.



8 Port 10/100M poe switch fanless

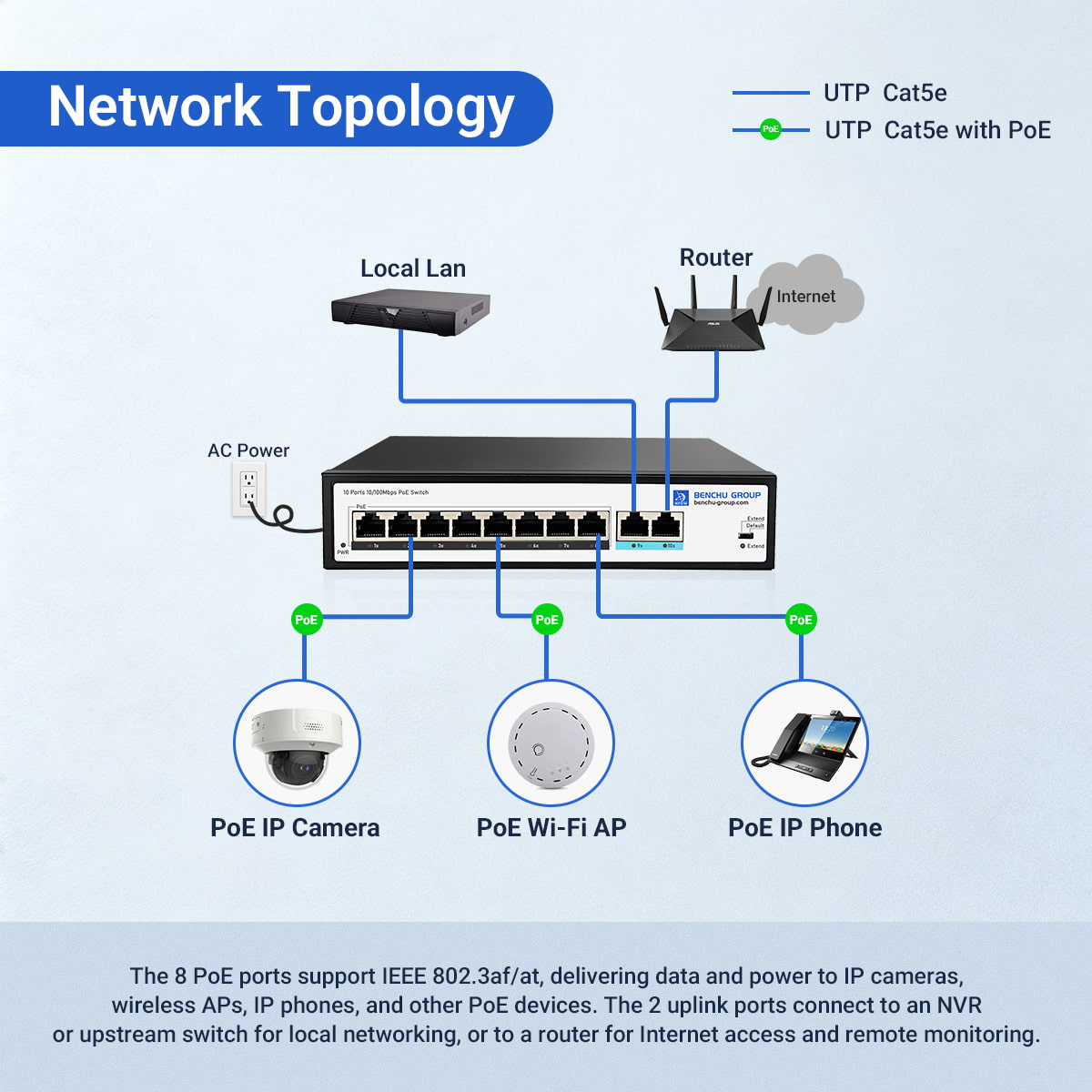

Connectivity Solutions

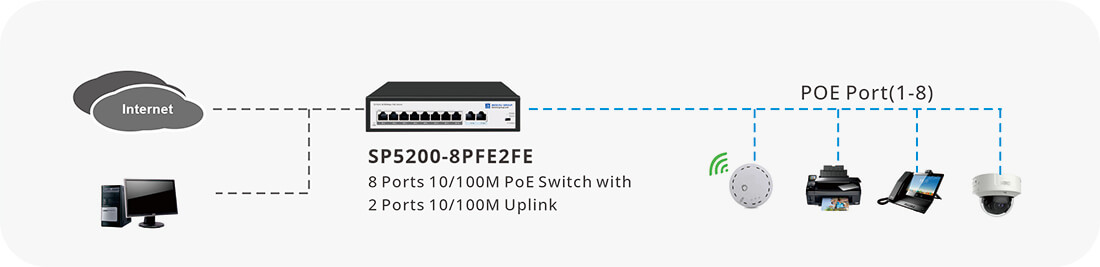

8 port PoE switch of Small shops and Home-use Fast Ethernet PoE Network Deployment





8 port poe switch of Small shops and Home-use Fast Ethernet PoE Network Deployment

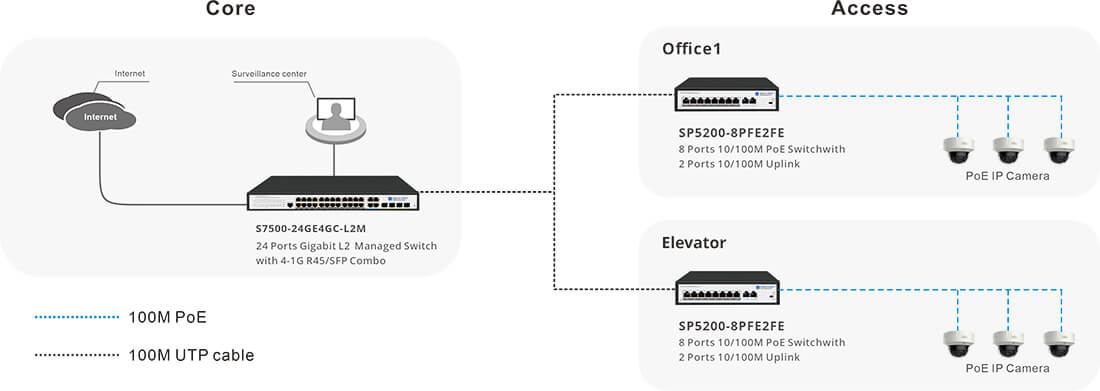

8 port 10/100M PoE switch of Perfectly-integrated Solution for PoE IP Camera and NVR System



8 port 10/100M Poe switch of Perfectly-integrated Solution for PoE IP Camera and NVR System









Specification



  • Technical Specifications :

    SP5200-8PFE2FE

  • 10M/100M RJ45 copper ports :

    10

  • PoE / PoE+ ports :

    8

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Budget :

    120 Watts

  • Number of PDs, 7 watts :

    8

  • Number of PDs, 15 watts :

    7

  • Number of PDs, 30 watts :

    3

  • Performance Specification :

    *

  • Chip :

    Realtek

  • Packet buffer memory :

    0.6 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    2 Gbps

  • Packet forwarding rate :

    1.488Mpps (64 byte packet size)

  • MAC address database size :

    2K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    9k

  • Mean Time Between Failures :

    106,325 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.321µs; 8.622µs; 8.435µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

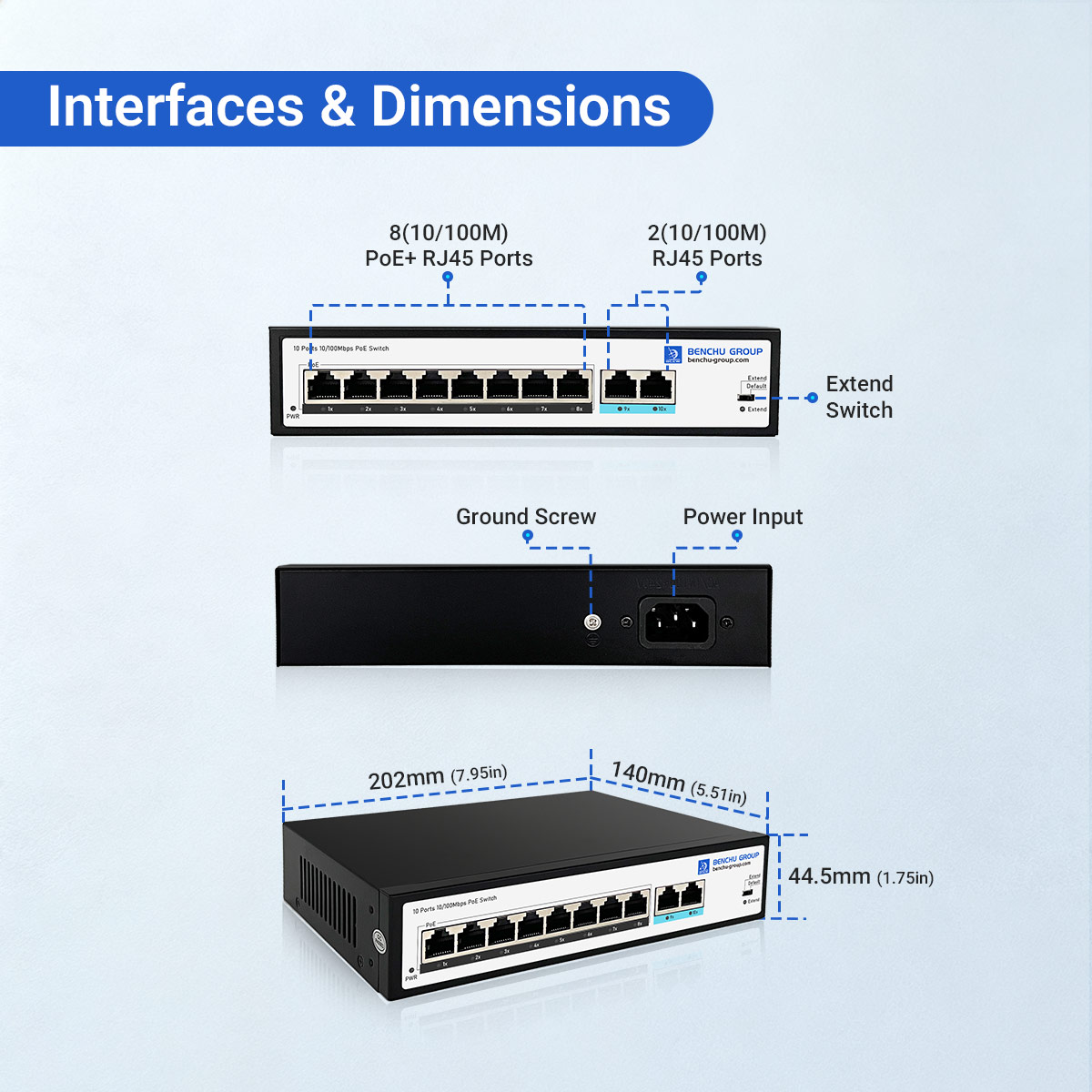

  • Dimensions (Width * Depth * Height) :

    202 x 140 x 44.5mm (7.95 x 5.51 x 1.75 in)

  • Weight :

    1.1 kg (2.53 lb)

  • Power Consumption :

    120W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    8W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    5W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS 60950.1:2015 CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart Switch; AC Power cord with C13 connector (localized to region of sale) ; Brackets and screws for rack mounting; Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    100M

  • More Filters :

    Unmanaged



Questions & Answers

Q: What is the maximum power output per port on the 8-port 10/100M PoE switch?
A: Each port provides up to 30W of power, compliant with IEEE 802.3at (PoE+),Backward compatible with IEEE 802.3af(PoE), suitable for devices like IP cameras and wireless access points.

Q: Can the 8-port 10/100M PoE switch extend Power and data connections beyond 100 meters?
A: Yes, some models support extended modes up to 250 meters, allowing for longer cable runs without additional equipment.

Q: Is the 8-port 10/100M PoE switch suitable for home use?
A: Yes, it is ideal for small networks, such as home security systems or connecting multiple smart devices requiring power and data.

Q: What type of devices can be connected to the 8-port 10/100M PoE switch?
A: Devices such as IP cameras, VoIP phones, wireless access points, and IoT sensors can be powered and connected through the 8-port 10/100M PoE switch.

Q: Does the 8-port 10/100M PoE switch require special installation?
A: No, installation is straightforward. Simply connect the switch to your network and plug in PoE-compatible devices. No additional configuration is usually needed.
